When it comes to commercial towers, many architects and their clients prefer buildings with highly transparent and ultrasmooth skins. Made up of large pieces of glass separated by as few mullions as possible, these exteriors reflect the long spans and open interiors within. 'The quality of space and flexibility is undoubtedly what the market is looking for,' says Nick Holt, technical director at Skidmore, Owings & Merrill (SOM) in New York.

Among SOM's many current— projects is an office and hotel complex in Shenzhen, China, now under construction for the Shen Ye Land Company and slated to be complete by mid-2017. To deliver the desired openness within a pristine envelope, the architects designed two towers—one 984 feet tall and the other 1,276 feet tall—each with a reinforced-concrete core and minimal perimeter structure, enclosed in large expanses of glass.

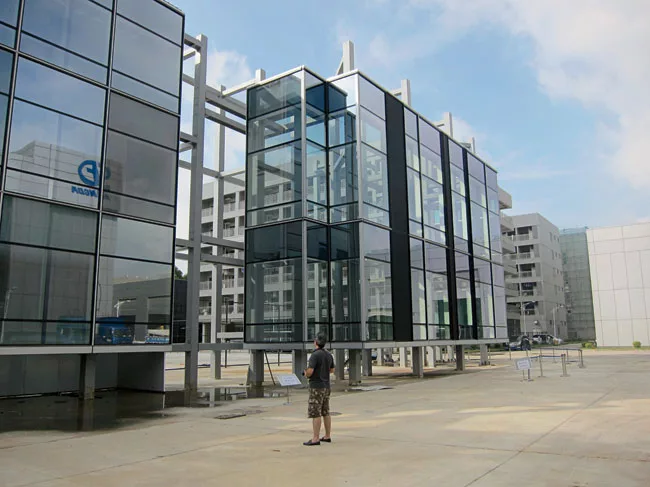

The buildings' typical vision-glass panel will be about 77 square feet—slightly larger than what is considered the maximum for standard-sized insulated glazing units (IGUs), says Holt. Instead of using tall and narrow IGUs to span from one floor to another, the design team specified a wider but shorter insulated unit, 9 feet, 10' inches wide by 7 feet, 10½ inches high. Made up of a laminated outer lite and a fully tempered inner lite, the vision glass will be positioned between a skinny lower lite and a highly insulated spandrel panel. 'Instead of thinking vertically, we turned the module on its side,' Holt says, to provide a wider field of vision for occupants.

Size isn't all that matters when it comes to selecting the right cladding. As the architects evaluate the Shen Ye towers' potential suppliers, they are considering the performance and appearance of their coatings, frits, and low-iron glazing—glass that is ultra-clear with a reduced greenish tint. The project team will also be keeping an eye out for surface imperfections like those known as 'roller waves'—an optical distortion that can result from heat tempering or heat strengthening.

Factors that could compromise the precision of the skin aren't limited to the manufacturing process. Problems during assembly, transportation, and installation can mar the facade.Even a building's day-to-day operations can blemish a meticulously detailed enclosure. Holt points to 'pillowing'—a slight but visible bowing of the skin caused by a pressure differential between a tower's interior and exterior imparted by mechanical systems or the stack effect.

SOM's method for combating this phenomenon involves IGUs with extra-thick—5/8 inch—outer lites, which will also help counter the wind deflection caused by the region's occasional typhoons. But the all-glass skin will still be much lighter than other cladding schemes, such as masonry with ribbon windows, he says, and 'it makes beautiful buildings."
