Kirkpatrick Oil Field Office

A White Knight in the Land of Black Gold: An Oklahoma architect fills a void on Main Street and helps bring hope to a community with a Modernist field office for a family-run oil company.

By Beth Broome

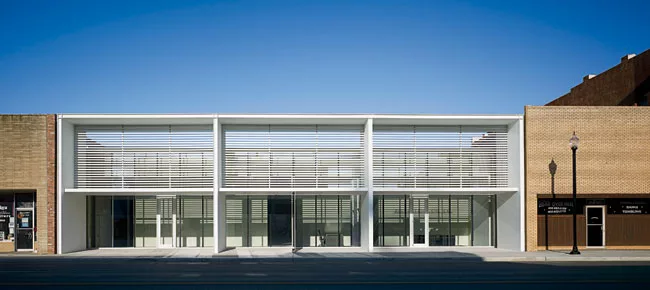

<strong>New Neighbor</strong> The building&#8217;s brise-soleil, a kind of scuptural installation on Main Street, provides shading as well as functioning as a front porch for the community.
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
New Neighbor The building’s brise-soleil, a kind of scuptural installation on Main Street, provides shading as well as functioning as a front porch for the community.
Photo © Scott McDonald/Hedrich Blessing

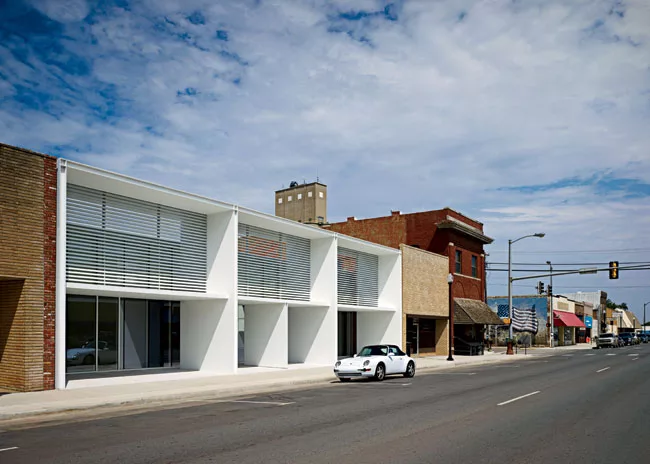

In homage to the original masonry, the brise-soleil&#8217;s powder-coated aluminum tubes, like standard brick, are 2&#8201;3/8 inches high.
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
In homage to the original masonry, the brise-soleil’s powder-coated aluminum tubes, like standard brick, are 2 3/8 inches high.
Photo © Scott McDonald/Hedrich Blessing

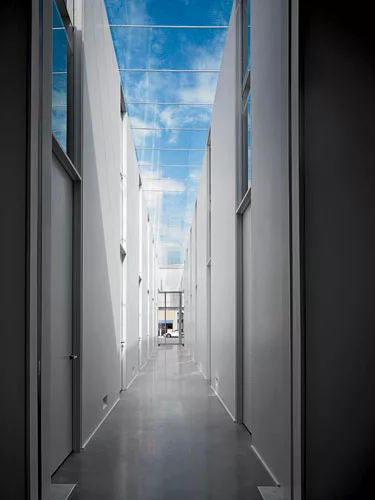

The soaring, double-loaded corridor is animated by a crystal-clear linear skylight and shadows cast from above.
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
The soaring, double-loaded corridor is animated by a crystal-clear linear skylight and shadows cast from above.
Photo © Scott McDonald/Hedrich Blessing

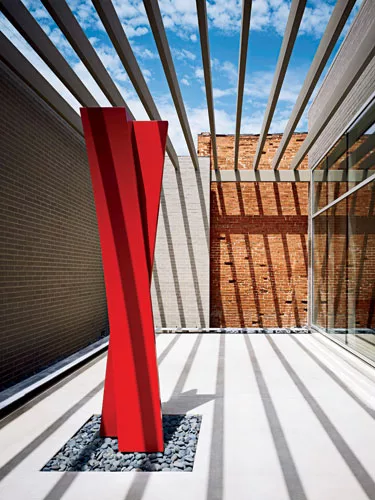

<strong>Back Porch</strong> The rear of the building opens out onto a patio with a sculpture by UK artist Nigel Hall. Kirkpatrick&#8217;s chairman, who is also an art collector and chairman of the boa
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
Back Porch The rear of the building opens out onto a patio with a sculpture by UK artist Nigel Hall. Kirkpatrick’s chairman, who is also an art collector and chairman of the board of the company’s foundation, wanted the piece to be appreciated by the public. It is visible from the street at the end of the long corridor.
Photo © Scott McDonald/Hedrich Blessing

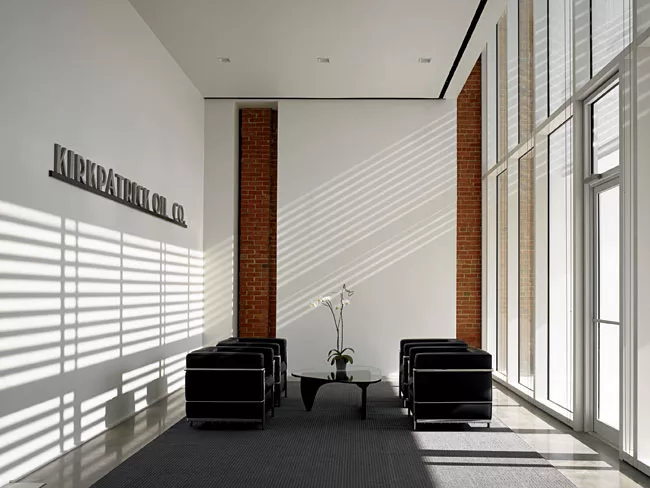

<strong>Community Lounge</strong> Just beyond the dramatic entry through the brise-soleil, the reception area provides a quiet pause before the procession down the central hall. The architect has left
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
Community Lounge Just beyond the dramatic entry through the brise-soleil, the reception area provides a quiet pause before the procession down the central hall. The architect has left glimpses of original masonry throughout the building.
Photo © Scott McDonald/Hedrich Blessing

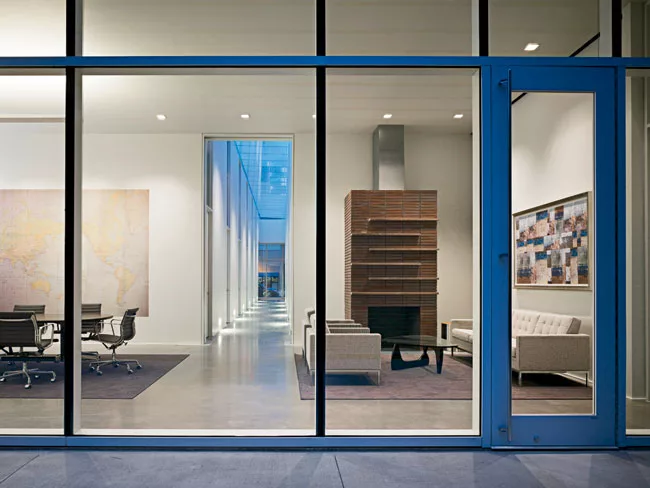

The conference room and lounge  hold reproductions of the possessions of Kirkpatrick&#8217;s legendary former owner, Grandpa Kirkpatrick, and have a decidedly refined man-cave feel.
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
The conference room and lounge hold reproductions of the possessions of Kirkpatrick’s legendary former owner, Grandpa Kirkpatrick, and have a decidedly refined man-cave feel.
Photo © Scott McDonald/Hedrich Blessing
The Main Street site.
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
The Main Street site.
Photo courtesy Elliott + Associates Architects

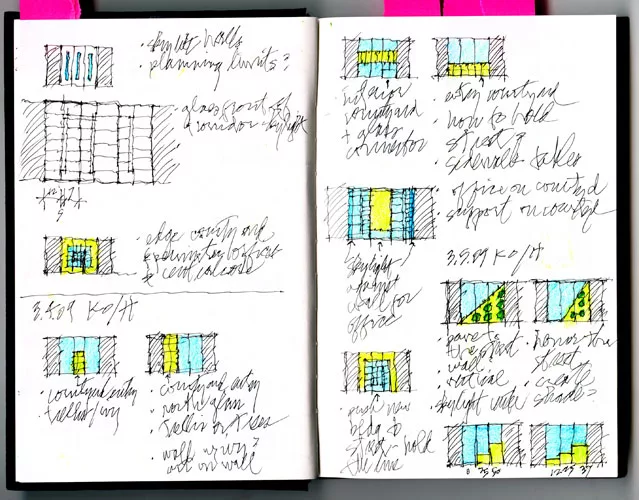

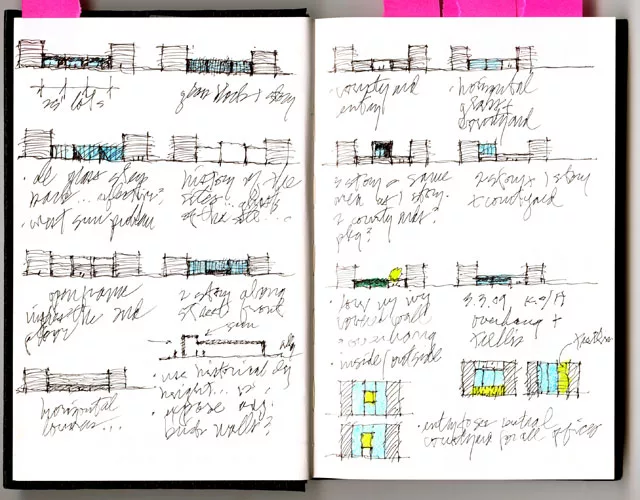

The architect's sketchbook.
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
The architect's sketchbook.
Photo courtesy Elliott + Associates Architects

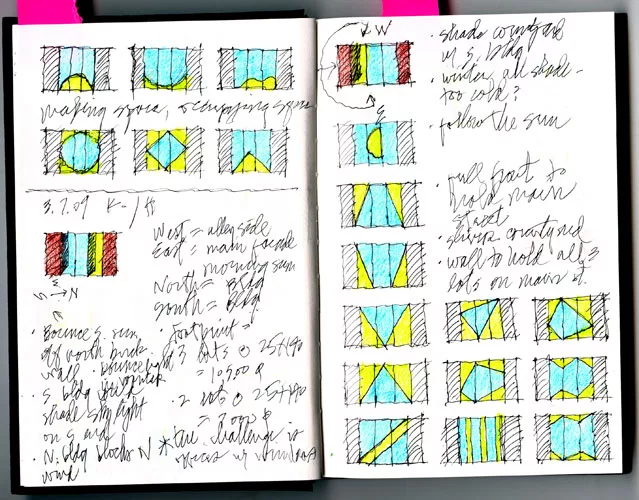

The architect's sketchbook.
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
The architect's sketchbook.
Photo courtesy Elliott + Associates Architects
The architect's sketchbook.
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
The architect's sketchbook.
Photo courtesy Elliott + Associates Architects

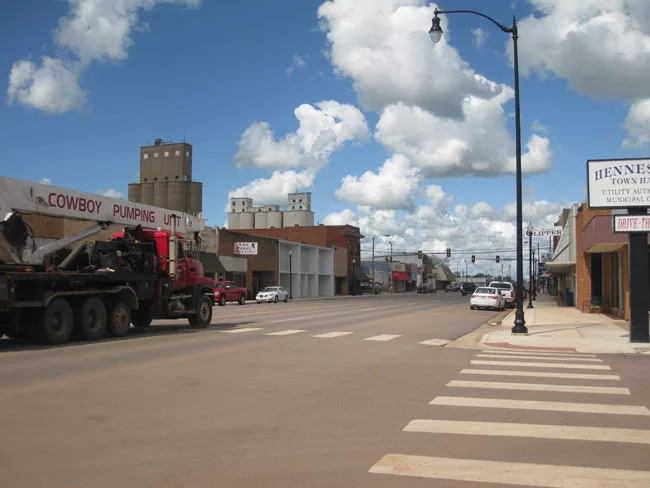

The building blends in with the scale of Main Street.
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
The building blends in with the scale of Main Street.
Photo by Beth Broome

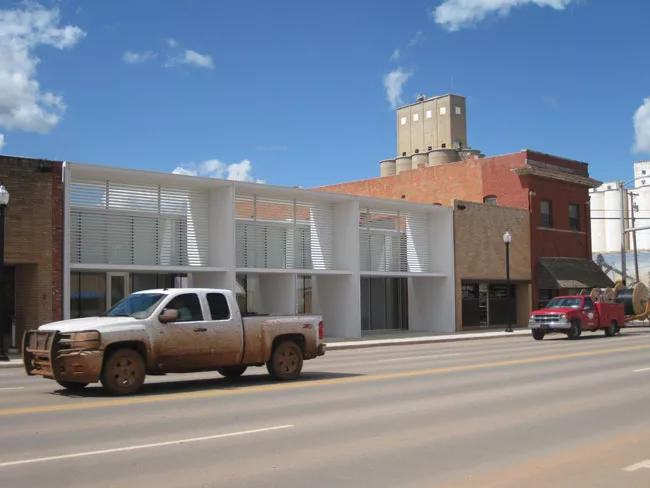

The building's facade is visible through the steel-plate brise-soleil.
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
The building's facade is visible through the steel-plate brise-soleil.
Photo by Beth Broome
Original party walls are visible through the gap between the brise-soleil and the building facade.
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
Original party walls are visible through the gap between the brise-soleil and the building facade.
Photo by Beth Broome

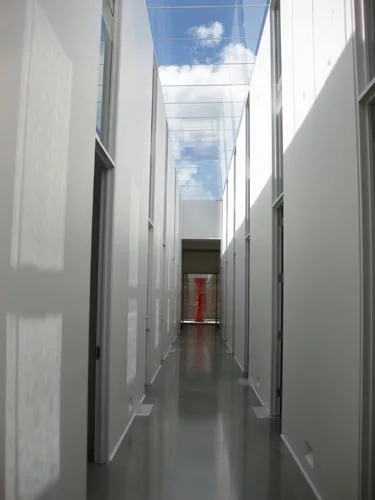

A red painted steel sculpture by Nigel Hall is visible at the end of the long, skylit corridor.
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
A red painted steel sculpture by Nigel Hall is visible at the end of the long, skylit corridor.
Photo by Beth Broome

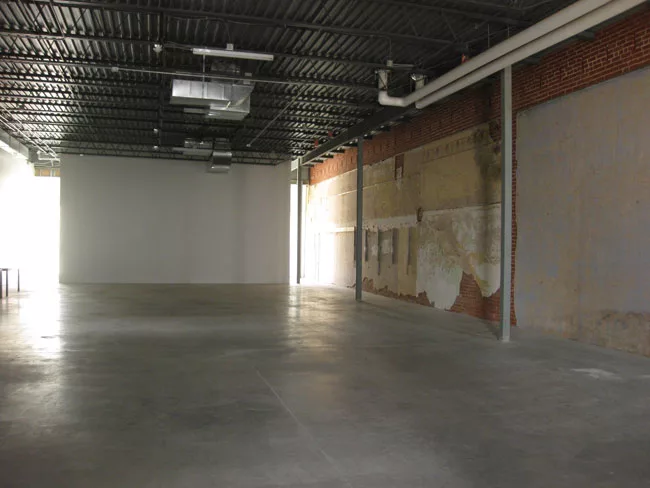

The south portion of the building has been left raw.
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
The south portion of the building has been left raw.
Photo by Beth Broome
The architect.
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
The architect.
Photo by Beth Broome
Kirkpatrick Oil Field Office
Kirkpatrick Oil Field Office
Elliott + Associates Architects
Hennessey, Oklahoma
Photo © Scott McDonald/Hedrich Blessing
<strong>New Neighbor</strong> The building&#8217;s brise-soleil, a kind of scuptural installation on Main Street, provides shading as well as functioning as a front porch for the community.
In homage to the original masonry, the brise-soleil&#8217;s powder-coated aluminum tubes, like standard brick, are 2&#8201;3/8 inches high.
The soaring, double-loaded corridor is animated by a crystal-clear linear skylight and shadows cast from above.
<strong>Back Porch</strong> The rear of the building opens out onto a patio with a sculpture by UK artist Nigel Hall. Kirkpatrick&#8217;s chairman, who is also an art collector and chairman of the boa
<strong>Community Lounge</strong> Just beyond the dramatic entry through the brise-soleil, the reception area provides a quiet pause before the procession down the central hall. The architect has left
The conference room and lounge  hold reproductions of the possessions of Kirkpatrick&#8217;s legendary former owner, Grandpa Kirkpatrick, and have a decidedly refined man-cave feel.
The Main Street site.
The architect's sketchbook.
The architect's sketchbook.
The architect's sketchbook.
The building blends in with the scale of Main Street.
The building's facade is visible through the steel-plate brise-soleil.
Original party walls are visible through the gap between the brise-soleil and the building facade.
A red painted steel sculpture by Nigel Hall is visible at the end of the long, skylit corridor.
The south portion of the building has been left raw.
The architect.
Kirkpatrick Oil Field Office
May 16, 2012

Architects & Firms

Elliott + Associates Architects

Hennessey, Oklahoma

Main Street in Hennessey, Oklahoma, is everything you'd expect of a small-town, Western main street. Seventy miles north of Oklahoma City, just beyond open prairies where cattle graze to the rhythm of nodding pumpjacks, red-dust-streaked pickups roar past Terry's Pump & Supply and the local farm bureau, and weathered grain elevators and a water tower rise nearby. There's Fun-Time Video & Tanning, Town Hall, the local newspaper office. And then, bookended by the Head Over Heels dance school and Bullfoot Station Antiques, set perfectly into the streetscape, is Elliott + Associates' gleaming new field office for Kirkpatrick Oil Company. At once camouflaged by its modest scale and highlighted by its glaring whiteness and pristine lines, it causes a double take.

An oil field, cattle, and farming town of 2,100, Hennessey was founded in 1890, a year after the Oklahoma Land Run. The Kirkpatrick family has been drilling here for generations and, until recently, housed its field office in a squat, deteriorating building south of town on Interstate 81. On October 1, 2007, as Hennessey worked to improve its downtown, fire tore through its center, destroying the Independent Order of Odd Fellows hall, the American Legion building, and Dinkler Drug Store. It dealt a blow. “There were just holes—it was depressing,” remembers Barb Walter, co-publisher and managing editor of the Hennessey Clipper.

Christian Keesee, chairman of Kirkpatrick Oil (and great-grandson of its founder), saw the void as an opportunity—both from a business and a civic perspective. He recognized the potential to create a presence for the company as well as give back to a place that's been so pivotal for Kirkpatrick. “Billions of dollars have come out of the ground around that little town,” says Keesee. “Every major oil and gas company in Oklahoma has a presence there, but as a community, it's sort of ignored.”

Elliott + Associates principal Rand Elliott, an Oklahoma native with a long list of renovation and adaptive reuse projects under his belt, understood that filling the gaping hole did not lie in a historicist approach. Instead, he created a bold, 21st-century building that relies on proportion and scale to fit into its historic context. The building is sensitive to the street's 25-foot-wide lots and the height of adjacent buildings, as well as other details of the surrounding vernacular.

The building greets the public with a striking steel-plate brise-soleil, comprising three sections that reflect the dimensions of the original facades. Kirkpatrick's calling card, it is painted white in deference to the grain elevators and set off from the building's glass and aluminum storefront to reveal old masonry party walls. Elliott divided his steel-framed building behind the brise-soleil in two, with the north side housing the company's offices and the south portion left raw for future development. Just beyond the reception area, the architect created the main interior event: a soaring, double-loaded corridor that terminates in a conference room and lounge at the back. A skylight runs the hall's length, admitting the big Western sky and casting intense light and dappled raindrop shadows on the white walls. The cavelike offices off the hall, which were empty on a recent visit, feel incidental—indeed, the building functions more as a home base for oil-field hands rather than white-collar workers.

The architecture far exceeds the basic programmatic requirements for this building type. But Keesee's instinct to do something special has had some surprising consequences. “We did not need to spend that much money to build a field office,” he admits. “But it has brought us good will, and added spirit to the community. There always needs to be a balance struck between commerce, philanthropy, and community enrichment.” If Kirkpatrick hadn't moved in, says Hennessey mayor Wes Hardin, “I promise you it would still look like we had our tooth knocked out. They're helping preserve our downtown—our community.” Barb Walter agrees: “It has been a renewal for us.” When the building was recently awarded an AIA Oklahoma honor award, local businesses banded together to buy a full-page congratulatory ad in the Clipper.

Besides giving a boost to local morale and the physical streetscape, the building has proved an invaluable resource for the people of Hennessey, who are welcome in the offices and who have adopted the raw space as a community center. The Christmas bazaar was held there and, this spring, it will host Hennessey High's senior prom. Then again, the building's local appeal might simply be visceral. “It's a quiet building,” notes Elliott. “It doesn't whimper or hide, but it's not something that would reach out and yell at you. That is a personality trait in this part of the world.”

Footloose on Main Street

The senior class of Hennessey High in Hennessey, Oklahoma, had an unusual venue for their prom this year. Rather than the normal location'the local elementary school's auditorium'the event was held at Kirkpatrick Oil Company's new field office, a gleaming presence on Main Street designed by Oklahoma-city-based Elliott & Associates Architects. As part of the festivities, the party moved out to the street (which was blocked to traffic), where students performed a number from the school's production of 'Footloose' against the dramatic backdrop of the building's white brise-soleil. Hennessey High's principal, Brady Barnes, says the location was far superior for 2012. 'It was good to get the kids out of the school for the prom this year,' he says, 'and into this more formal atmosphere.' Not only did Kirkpatrick Oil provide use of the space gratis, they also chartered a bus and sent a team of 17 employees from their Oklahoma City office to decorate the 3,450-square-foot raw space that occupies the building's southern half. 'It's almost like a warehouse,' explains Ross Powell, Kirkpatrick's marketing director and one of the volunteers, 'which was cool because it was a blank canvas.' On Friday April 13, the day before the prom, the team, joined by a group of students and Hennessey-based Kirkpatrick employees, set up the dj booth, and, in accordance with the evening's theme, 'Starry Night,' transformed the rough interior with gauzy fabric, twinkling lights, and paper stars.

Completion Date: September 2011

Gross square footage: 9,400

People

Architect:
Elliott + Associates Architects
35 Harrison Avenue
Oklahoma City, OK 73104
405.232.9554 – telephone
405.232.9997 – facsimile
www.design@e-a-a.com

Owner:
Kirkpatrick Oil Company
1001 W Wilshire Blvd, #202
Oklahoma City, OK 73116
405-840-2882– telephone
405.840.2946 - facsimile
info@kirkpatrickoil.com

Project Team:
Rand Elliott, FAIA
Brian Berryhill, Associate AIA
Michael Shuck, Associate AIA

Engineer(s):
Structural Engineer:
Mark Eudaley Engineers
6656 N. W. 39th Expressway
Bethany, Oklahoma 73008

Consultant(s):
Lighting:
Elliott + Associates Architects
Smith Lighting Sales, Inc.
4101 N. Walnut Avenue
Oklahoma City, Oklahoma 73105

General contractor:
Smith & Pickel Construction
P.O. Box 21447
13415 N. Santa Fe
Oklahoma City, OK 73114

Photographer(s):
Scott McDonald
Hedrich Blessing
400 N. Peoria Ave.
Chicago, IL 60642
312.491.1101 – telephone
312.491.1112 – facsimile
scott@hedrichblessing.com
www.hedrichblessing.com

Renderer:
Elliott + Associates Architects

CAD system, project management, or other software used:
Autodesk Revit Architecture, AutoCAD Architecture



Products

Structural system
Steel framing system: Fabricator, Shawnee Fabricators, Inc.
Brise Soleil: Structural Steel – Fabricator, Shawnee Fabricators, Inc.
Custom Aluminum Extrusions – Fabricator, Artform

Exterior cladding

Masonry: Acme Brick – Installer, Hansen Masonry
Glass curtain wall: Oldcastle
EIFS soffit: Dryvit

Roofing

Modified bitumen roofing: Bitech – Installer, Southwestern Roofing & Metal, Inc.

Glazing

Glass: PPG, Sungate 500
Skylights: Viracon OptiWhite – Supplier, Bellweather Design Technologies

Doors

Entrances: Oldcastle
Metal doors and frames: Curries – Supplier, All Commercial Openings Inc.
Wood doors: Marshfield Door Systems
Custom pocket door: Contemporary Cabinets

Hardware

Supplier: Designer Hardware by Faye
Locksets: Schlage
Closers: LCN
Pulls: Rockwood

Interior finishes
Acoustical ceilings: Armstrong Optima Vector Plank 24in. x 96in.
Suspension grid: Armstrong Prelude 15/16in.
Cabinetwork and custom woodwork: Contemporary Cabinets
Paints and stains: Glidden Paint – Installer, Masterpiece Painting
Plastic laminate: Formica Corporation
Wall tile (restrooms): Daltile Ceramic
Custom Rugs: Masland Contract – Supplier, Bryan’s Flooring
Special interior finishes unique to this project:
Polished Concrete – Installer, Ardor Solutions
Architectural Metal – Fabricator, Harrison-Orr Air Conditioning, L.C.C.

Furnishings

Office furniture:
Cassina Cab Chairs - SR Hughes
Herman Miller Eames Soft Pad Chair - Workplace Resources
Salone Desks and Credenzas - Hart Texas
Lounge:
Florence Knoll Sofa and Chairs - Spaces, Inc.
Piston Side Tables - Inmod
Opaque Glass Tops for Piston Side Tables - Art Fusion Studio

Lighting

Installer: Metro Electrical Contractors, Inc.
Interior ambient lighting: General Electric, Engineered Lighting Products
Downlights: Gotham Lighting, Con-Tech Lighting
Task lighting: Peerless Lighting, Lithonia Lighting
Exterior: Elliptipar

Plumbing

Installer: Harrison-Orr Air Conditioning, L.L.C.
Toilets, Urinal, Flush valves, Lavatories, Faucets: Toto

HVAC

Installer: Harrison-Orr Air Conditioning, L.L.C.
Diffusers: Titus

Add any additional building components or special equipment that made a significant contribution to this project:
Art Collection:
Courtyard:
Nigel Hall
Crossing Oklahoma, 2010
Painted Steel
Reception:
Chad Mount
If I May Speak Planktonicly…, 2010
Acrylic and pencil on wood
Lounge:
Romy Owens
Cissy, 2010
2-D Mixed Media
Offices:
Jason Willaford
M.A.L.E., 2011
Encaustic
Restrooms:
Brett Weston
Underwater Nudes, Circa 1980
Gelatin Silver Prints

KEYWORDS: Oklahoma

Share This Story

Looking for a reprint of this article?
From high-res PDFs to custom plaques, order your copy today!

Former Architectural Record managing editor Beth Broome is a freelance writer based in Brooklyn, New York.

Post a comment to this article

Report Abusive Comment

Subscription Center
  • Create an Account
  • Start a Subscription
  • Manage My Account
  • Sign Up for Newsletters
  • Visit Customer Service
  • Update Preferences

More Videos

Sponsored Content

Sponsored Content is a special paid section where industry companies provide high quality, objective, non-commercial content around topics of interest to the Architectural Record audience. All Sponsored Content is supplied by the advertising company and any opinions expressed in this article are those of the author and not necessarily reflect the views of Architectural Record or its parent company, BNP Media. Interested in participating in our Sponsored Content section? Contact your local rep!

close
  • TAMLYN XtremeTrim Exterior Trim
    Sponsored byTamlyn

    Designing Cleaner Panel Facades: Why Exterior Trim Details Matter

  • Building with Vapor Barriers
    Sponsored byReef Industries, Inc.

    Vapor Barriers Help Control Moisture in Tighter Building Designs

  • Duct Interior with Prodeq System
    Sponsored byHenry, a Carlisle Company

    Designing Resilient Water Containment Systems

DESIGN:ED Podcast
Listen to Architectural Record’s DESIGN:ED Podcast

Events

June 10, 2026

Rethinking Stormwater – The Power of Porous Paving

Credits: 1 AIA LU/HSW; 1 AIBD P-CE; 0.1 ICC CEU

Learn how porous paving systems support stormwater management, reduce heat island effects, and enhance sustainable site design performance.

June 11, 2026

Very Early Warning Fire Detection for Mission-Critical Facilities

Credits: 1 AIA LU/HSW; 1 AIBD P-CE; 0.1 ICC CEU

Examine advanced fire detection strategies that support uptime and enhance safety in data centers and other mission-critical facilities.

View All Submit An Event

Products

2026 Architect's Square Foot Costbook

2026 Architect's Square Foot Costbook

See More Products

Popular Stories

Coronado Bridge

The Architect’s Guide to San Diego

Practice Matters illustration

What’s in a (Firm’s) Name? Thinking About Succession and Legacy

Practice Matters illustration

By the Numbers: Counting America's Architects

Inward House

Inward House by VeeV Design Studio

Riverdale House by Studio Lau

Riverdale House by Studio Lau

Broader Sustainability of CMU - Free Webinar - May 21, 2026

Related Articles

  • Oil Drilling Threatens Smithson's Spiral Jetty

    See More
  • In the Field

    See More
  • James Corner Field Operations and Diller Scofidio + Renfro

    See More
×

The latest news and information

#1 Source for Architectural Design, News and Products

SUBSCRIBE
  • RESOURCES
    • Advertise
    • Contact Us
    • Submit
    • Store
  • ACCOUNT CENTER
    • Create an Account
    • Start a Subscription
    • Manage My Account
    • Sign Up for Newsletters
    • Visit Customer Service
    • Update Preferences
  • PRIVACY
    • PRIVACY POLICY
    • TERMS & CONDITIONS
    • DO NOT SELL MY PERSONAL INFORMATION
    • PRIVACY REQUEST
    • ACCESSIBILITY
  • SERVICES
    • Marketing Services
    • Reprints
    • Market Research
    • List Rental
    • Survey/Respondent Access
  • STAY CONNECTED
    • Linkedin
    • Facebook
    • Instagram
    • YouTube
    • X (Twitter)

Copyright ©2026. All Rights Reserved BNP Media, Inc. and BNP Media II, LLC.

Design, CMS, Hosting & Web Development :: ePublishing
