Home » Rethinking the Split House
Featured HousesResidential Architecture

Rethinking the Split House

Rethinking the Split House
Rethinking the Split House
Neri&Hu Design and Research Office
Shanghai
Photo © Pedro Pegenaute
Rethinking the Split House
Rethinking the Split House
Neri&Hu Design and Research Office
Shanghai
Photo © Pedro Pegenaute
Rethinking the Split House
Rethinking the Split House
Neri&Hu Design and Research Office
Shanghai
Photo © Pedro Pegenaute
Rethinking the Split House
Rethinking the Split House
Neri&Hu Design and Research Office
Shanghai
Photo © Pedro Pegenaute
Rethinking the Split House
Rethinking the Split House
Neri&Hu Design and Research Office
Shanghai
Image courtesy Neri&Hu Design and Research Office
Rethinking the Split House
Rethinking the Split House
Neri&Hu Design and Research Office
Shanghai
Image courtesy Neri&Hu Design and Research Office
Rethinking the Split House
Rethinking the Split House
Neri&Hu Design and Research Office
Shanghai
Image courtesy Neri&Hu Design and Research Office
Rethinking the Split House
Rethinking the Split House
Neri&Hu Design and Research Office
Shanghai
Image courtesy Neri&Hu Design and Research Office
Rethinking the Split House
Rethinking the Split House
Neri&Hu Design and Research Office
Shanghai
Image courtesy Neri&Hu Design and Research Office
Rethinking the Split House
Rethinking the Split House
Neri&Hu Design and Research Office
Shanghai
Image courtesy Neri&Hu Design and Research Office
Rethinking the Split House
Rethinking the Split House
Rethinking the Split House
Rethinking the Split House
Rethinking the Split House
Rethinking the Split House
Rethinking the Split House
Rethinking the Split House
Rethinking the Split House
Rethinking the Split House
September 16, 2013
KEYWORDS Shanghai
Reprints
No Comments

Architects & Firms

Neri&Hu Design and Research Office

Shanghai

Project Size: 2,077 square feet (including yard and terrace)

Program: When commissioned to convert a ramshackle lane house in Shanghai into a three-unit apartment building, local firm Neri&Hu Design and Research Office tried to maintain the traditional character of the 1930s-era building, while giving it a contemporary edge. The house sits in the Tianzifang neighborhood, which still has the city’s old web of narrow streets and alleys.

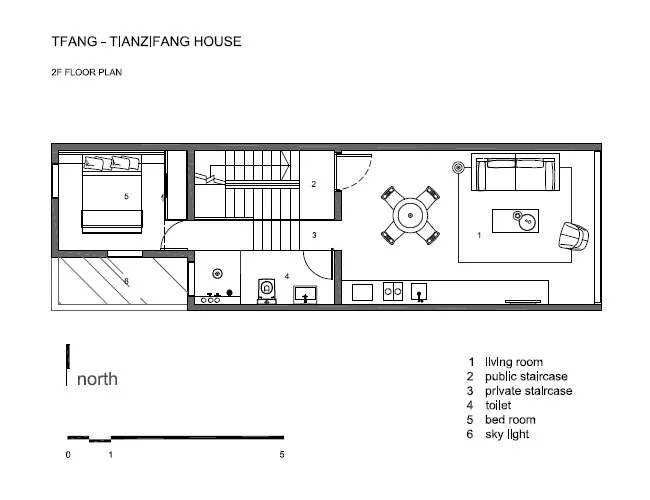

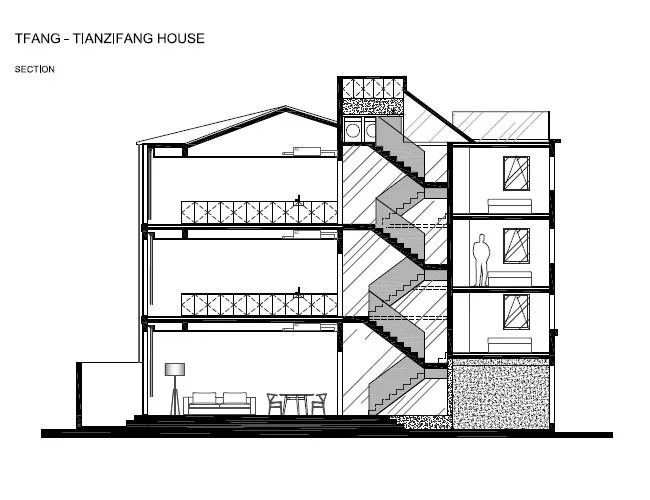

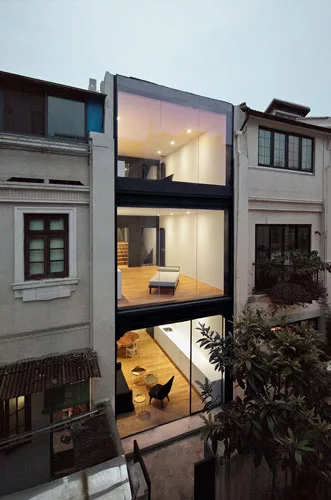

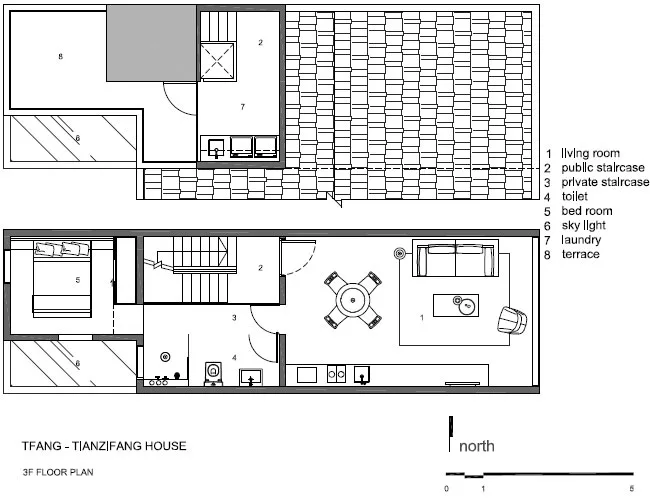

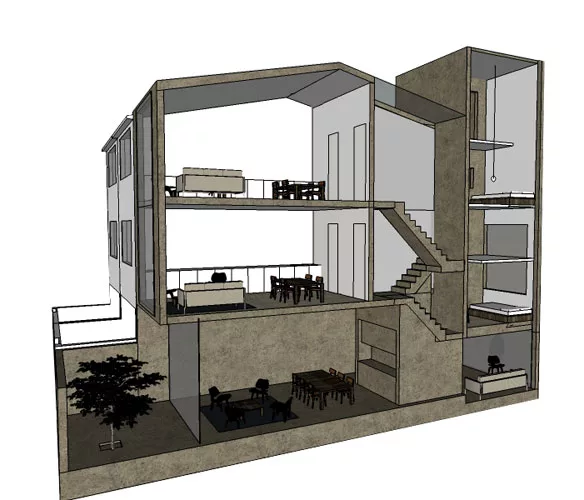

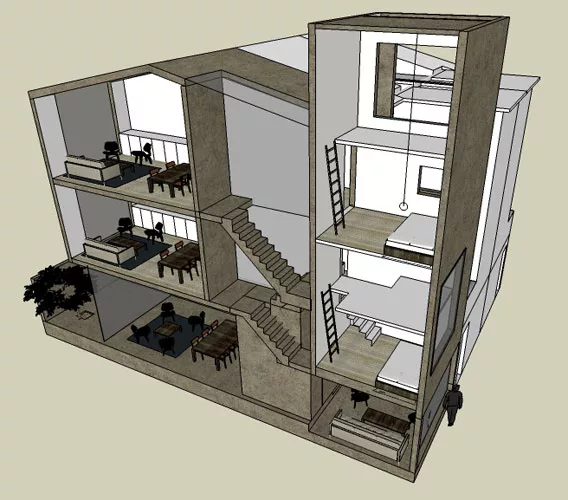

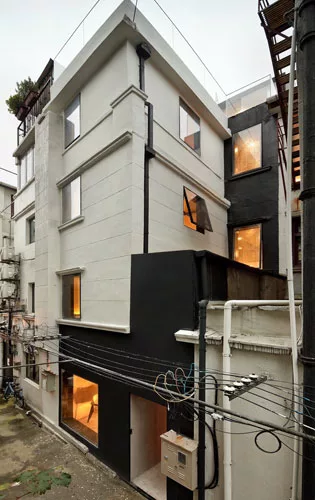

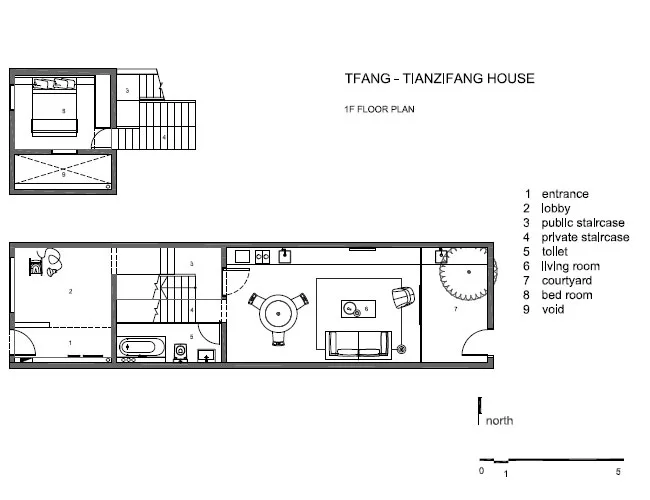

Solution: Completed in August 2012, Rethinking the Split House is composed of two volumes with a stair core rising between them. A split stairway—one half private, one half communal—links bedrooms on one side with living and dining spaces half a level above. The unusual stair also facilitates encounters between residents as they move through the 2,000-square-foot-building. The architects also created a contrast between the front and back of the building, giving it a mostly opaque street facade, while almost entirely glazing the other side.

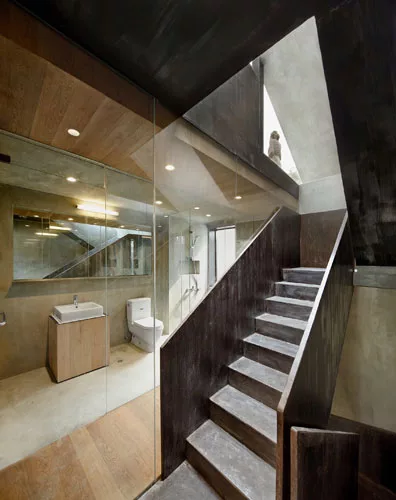

The architects wanted to challenge norms of public versus private space, placing bathrooms next to the stairway, separated only by a wall of clear glass. The same theme appears in other recent projects by Neri&Hu, including Waterhouse at South Bund, a hotel where some guestrooms have views into public spaces such as the lobby and the restaurant.

People

Completion Date: Aug 2012

Gross square footage: 2,077 square feet (including yard and terrace)

Architect:
Neri&Hu Design and Research Office (Neri&Hu)
Address: 88 Yuqing Road, Shanghai, China 200030
Tel: +86 21 6082 3777  Fax: +86 21 6082 3778
Email: info@nhdro.com
Email: info@nhdro.com

Personnel in architect's firm who should receive special credit:
Design Team:
Lyndon Neri & Rossana Hu (principals-in-charge)
Tony Schonhardt (associate)
Xiao Lei (sr. architectural designer)
Zhao Lei (architectural designer)
Guo Peng (designer)

Interior designer: Neri&Hu Design and Research Office



Products

Interior finishes
Stairs – treated metal, locally sourced
Flooring – white oak, locally sourced

Hardware
Fittings: Hansgrohe

Furnishings
Solo Lounge Chair (neri&hu)
Solo Table (neri&hu)
Slip Sofa (neri&hu)
Navy Chair (Emeco)
Prouvé RAW Special Edition Fauteuil de Salon (Vitra)
Prouvé RAW Special Edition Lit Flavigny Day Bed (Vitra)
CM05 Habibi Side Tables (E15)
Spun Chair (Magis)
Duravit (lavatories/water closets)

Lighting
George Nelson Bubble Lamp Saucer Pendant (Modernica)
