Bronx County Hall of Justice

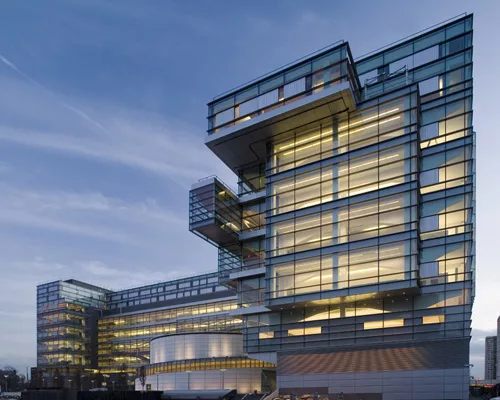

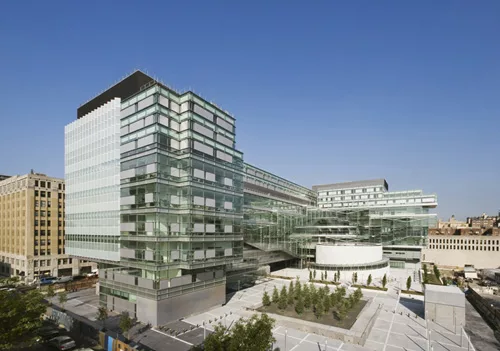

Open curtain wall gives transparency to the judicial process.
Photo © Jeff Goldberg/Esto
Photo © Jeff Goldberg/Esto
Photo © Jeff Goldberg/Esto

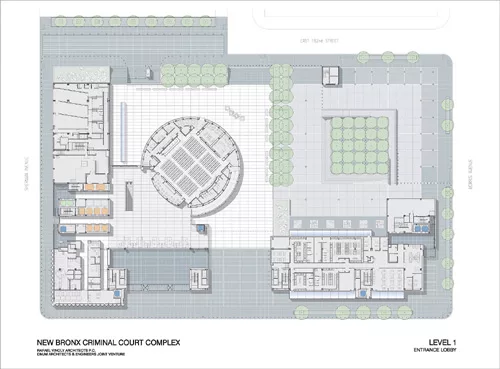

Level 1
Image courtesy Rafael Viñoly Architects

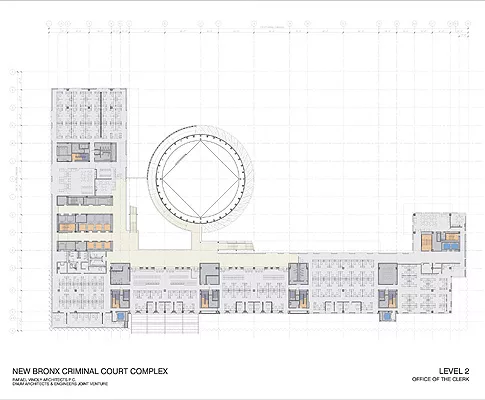

Level 2
Image courtesy Rafael Viñoly Architects

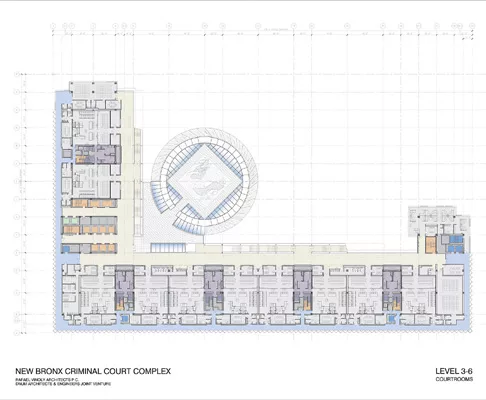

Level 3-6
Image courtesy Rafael Viñoly Architects
Architects & Firms
Bronx, New York
In designing this courts complex, designers Rafael Viñoly Architects and DMJM Harris paid close attention to the image of the courthouse in society—and the acute meaning it holds in the Bronx. In addition to being mindful of this symbolism, their primary challenge was integrating a massive building into the community. The 775,000-square-foot project consists of 47 court parts for the Supreme and Criminal courts, seven grand jury rooms, as well as offices for the Department of Corrections, the Department of Probation, and the Bronx District Attorney.
The architects organized program elements in a linear manner around an open civic space, layering them from public to private. Public circulation faces the open space and is animated by a series of cantilevered stairs that augment the elevator system. Within the courtyard, a two-story freestanding cylindrical building houses the jury assembly room. This volume gives scale to the courtyard and acts as the symbolic and formal focus of the whole project.
The main building’s exterior wall design responds to various functions inside. Its south and west facades screen the private circulation corridors and are designed to allow daylight to penetrate deep into the floor plates. The glazed curtain wall in this area takes the shape of a folded plane, providing shadow, reflection, and physical depth. It also allows for “light shelves” to be placed in the dimension of the folds. These units bounce daylight into the interiors and onto reflective, angled ceiling surfaces; they also shade areas directly adjacent to the glass wall, thus reducing heat gain and solar glare. The architects believe that this facades system gives the building as open and unintimidating appearance—all of its functions remain on public view, providing literal and metaphoric transparency to the judicial process.
PeopleOwner Architect DMJM Harris 605 Third Avenue New York, N.Y. 10158 212-973-2900 tel. www.dmjmharris.com Design principal: Managing principal: Project director: Technical director: Project managers: Design team: Interior furnishings: Engineer(s) M/E/P, fire protection: Consultant(s) Lighting: Acoustical: Security: Vertical transportation: Geotechnical: Protective design: Signage and graphics: Specifications: Envelope: Civil: Construction manager: General contractor Photographer(s) |
ProductsStructural system Exterior Cladding Concrete: Roofing Metal: Windows Glazing Skylights: Doors Metal doors: Wood doors: Special doors (sound control, X-ray, etc.): Upswinging doors, other: Hardware Hinges: Closers: Exit devices: Pulls: Interior finishes Suspension grid: Interior metal/glass partitions: Cabinetwork and custom woodwork: Paints and stains: Paneling: Plastic laminate: Floor and wall tile: Resilient flooring: Carpet: Flooring: Furnishings Reception furniture: Fixed seating: Chairs: Tables: Other furniture: Lighting Downlights: Exterior: Controls: Conveyance Accessibility provision: Hillside |
