Stamford Street, London

People/Products

Three decades ago, the South Bank district in central London was no place to call home. Schools were shuttered and stores were vacated as its population plummeted to 4,000, spurring city planners to consider eliminating housing altogether to make way for large-scale commercial projects. Determined to foster neighborhood regeneration, residents banded together to form Coin Street Community Builders (CSCB) — named after a road that passes through the district’s heart.

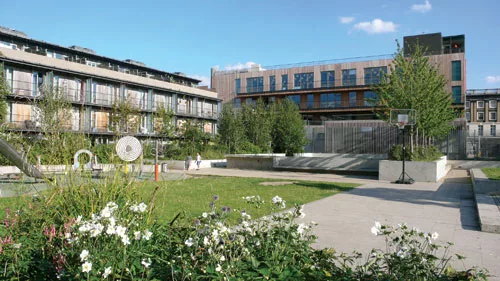

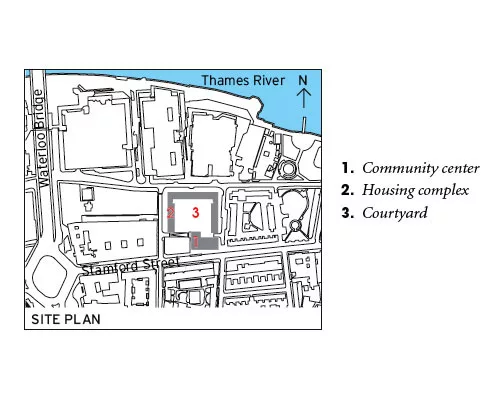

They were triumphant. In 1984, the nonprofit group used loans to purchase 13 acres and has since constructed four social housing complexes. In 1997, it commissioned the London firm Haworth Tompkins to design an affordable housing co-op and community center for a 2-acre block. The terraced residential buildings, which line three sides of a courtyard and sit atop an underground parking garage, were finished in 2001. The architects then set out to complete the quadrangle with the 40,000-square-foot Coin Street Neighborhood Centre.

It was a challenging brief. Due to cost, the client decided to divide the remaining 25,000-square-foot parcel in half and develop the project in two phases. The $12.4 million Phase 1, on the eastern portion, was to include a nursery, café, meeting rooms, and a new CSCB headquarters, along with a rentable space for a shop or restaurant. To ensure the facility could accommodate changing needs, a flexible layout was paramount. Moreover, the building needed to allude to landmarked 19th-century brick row houses yet have a bold, Modern aesthetic — and it couldn’t be intimidating or condescending, explains Iain Tuckett, CSCB director. “We quickly agreed,”he says, “that a bit of color and a sense of fun should be part of what they would need to do.”

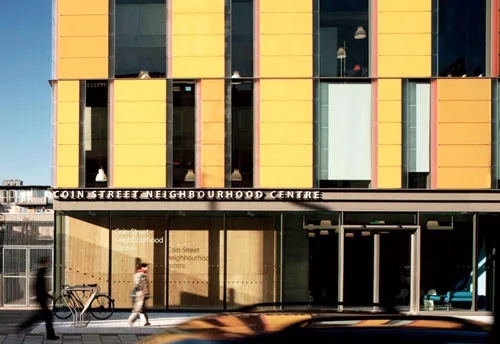

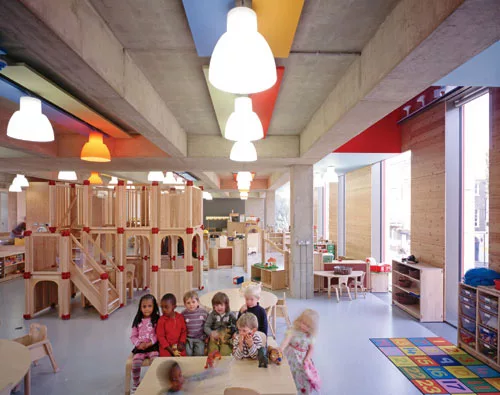

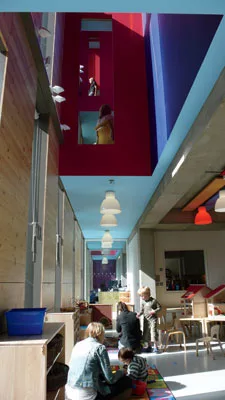

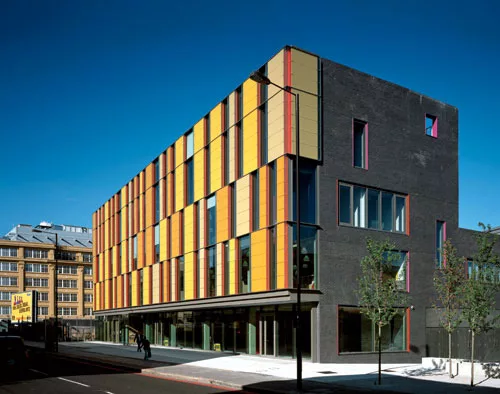

Faced with these complex conditions, the design team opted for a basic, boxy structure with varied facades and a stripped-down interior. To add visual flair, the team relied on splashes of color, both inside and out, hiring the artist Antoni Malinowski as a consultant. Because much of the building’s poured-in-place-concrete frame is exposed, the architects insisted on using cement with a high volume of GBBS (ground granulated blast furnace slag), which gives the concrete a light, creamy complexion, explains firm director Toby Johnson.


People

Owner:
Coin Street Community Builders

Architect:
Haworth  Tompkins  Limited
19-20  Great Sutton Street
London EC1V 0DR
t: +44 (0)20 7250 3225
f: +44 (0)20 7250 3226
www.haworthtompkins.com

Personnel in architect's firm who should receive special credit:
Steve Tompkins (Director In charge) – registered architect

Andrew Groarke and Chris Hardie (Project Architects) – registered architects

Others who also worked on the project:
Tom Grieve, Toby Johnson, Lewis Kinneir, Hana Loftus, Will Mesher, Jim Reed, Pascale Shulte, Joanna Sutherland, Tom Wilson, Felis Xylander-Swannell, Akira Yamanaka.

Artist Collaborator:
Antoni Malinowski (www.antonimalinowski.co.uk)

Engineer(s):
Structural Engineers: Price and Myers (www.pricemyers.com)

Environmental and Building Services Enginner: Max Fordham (www.maxfordham.com)

Consultant(s):
Quantity Surveyors:  Davis Langdon (www.davislangdon.com)

Cladding Consultant: Harry Montresor (www.montresorpartnership.co.uk)

Landscape: Colvin and Moggeridge (www.colmog.co.uk)

General contractor:
Rooff Ltd. (www.rooff.co.uk)

Photographer(s):
Edmund Sumner (www.edmundsumner.co.uk)

Hélène Binet (www.helenebinet.com)

Philip Vile (www.philipvile.com)

CAD system, project management, or other software used:
CAD system - Microstation





Products

Exterior cladding:
Masonry: Brick – blue brindle engineering brick by Baggeridge

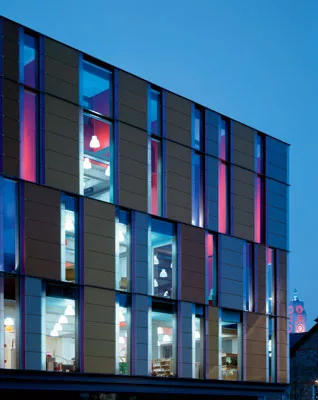

Metal/glass curtainwall: Wicona unitized curtain wall system.
Sub-contractor – Hirsch (no longer trading)

Wood: Material – Untreated FSC rated Iroko (North Façade), Class O Lacquered Douglas Fir Plywood (Internal linings)

Roofing:

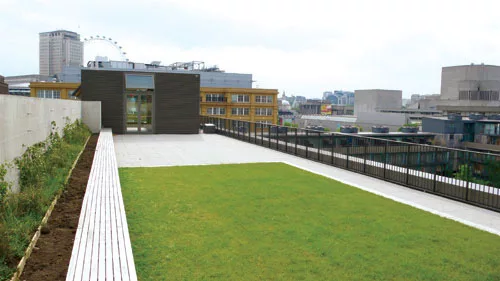

Built-up roofing: Alumasc Hydrotech (www.alumasc-exteriors.co.uk) with insulation. Finish depending on location – turf, concrete paving on spacers or metal grating on spacers with rubber playdecking to nursery play area.

Windows:

as curtainwalling.

Glazing: generally as curtainwalling.

Pavement Lights: Luxcrete (www.luxcrete.co.uk)

Glass:
Type 1 (South, East and West Façade): Double glazed with combination solar control and Low-E coating (Glaverbel Ebergy)(www.glaverbel.com)

Type 2: (North Façade) Double glazed with super Low-E coating (Glaverbel Panibel Top N)

Type 3: Translucent Glass Panels to North façade (as type 2 but with translucent white PVB interlayer)

Insulated-panel or plastic glazing: see curtain wall system

Doors:
Entrances: Sliding glass doors supplied by Kaba UK Ltd (www.kaba.co.uk)

Metal doors: Supplier – Prima Doors UK Ltd

Wood doors: Supplier – Leaderflush and Shapland (www.leaderflushshapland.co.uk)

Special doors (sound control, X-ray, etc.): Access Conrol Gate – Argus Swing Gate System by Kaba (www.kaba.co.uk)
