Vancouver is a city of architectural extremes: thousands of pint-sized condominiums on the downtown peninsula and, across the water, enormous single-family houses. Architect D’Arcy Jones has forged a name for himself with the clever orchestration of small and mid-size houses. But his latest project, a spacious residence on the city’s west side, offers a different solution: a kind of micro-village for an extended family.

Additional Information:
Jump to credits & specifications

Built for an art-collecting couple and their two teenage kids, the Yan Residence addresses a growing phenomenon of contemporary family living: how to incorporate secondary dwellings without sacrificing the inherent privacy of a single-family home. In this case, the clients wanted to include future accommodation for aging parents. In the end, Jones designed three autonomous living units on the one-acre lot while sequestering each from the noisy thoroughfare that fronts the property.

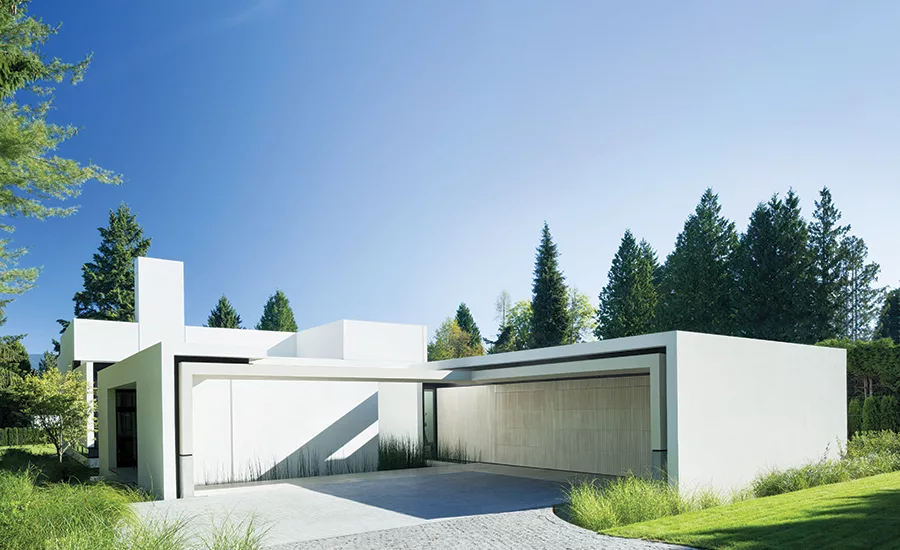

The complex reads like a collection of pristine white cubist structures, textured by stucco and white-stained cedar batten and defined by overhangs, cutaways, reveals, and a projecting chimney. The clients chose white as the dominant color—their favorite hue (even matching the cars in the driveway). And, from Jones’s perspective, white walls inside and out were the perfect choice to contrast with the bright art within.

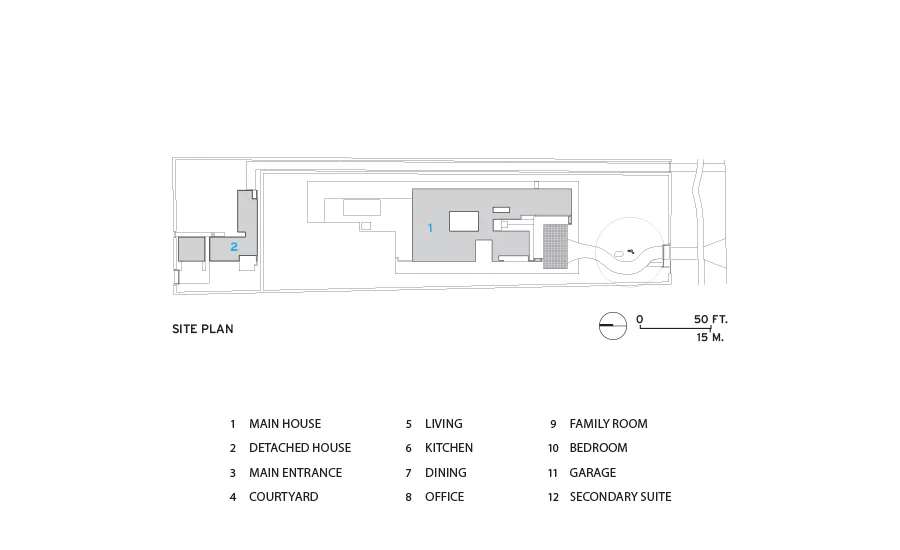

Configuring the two secondary suites, each with a complete kitchen, bath, bedroom, and living area, made for a Rubik’s Cube–like challenge. The first is contained within the 6,000-square-foot main house but has a separate entrance path. The second, larger unit is a detached 1,500-square-foot residence at the northern edge of the lot, designed in the same language as the larger structure and with its own window pattern turned away from it.

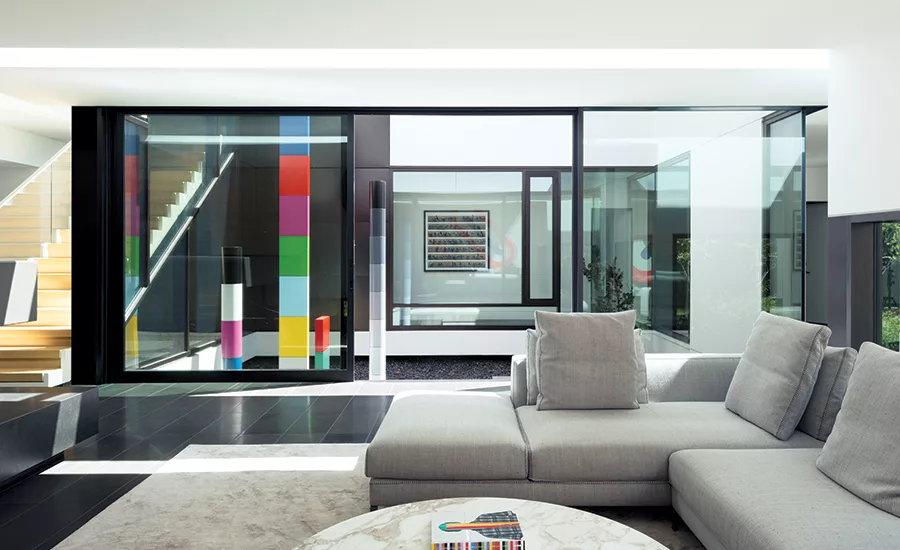

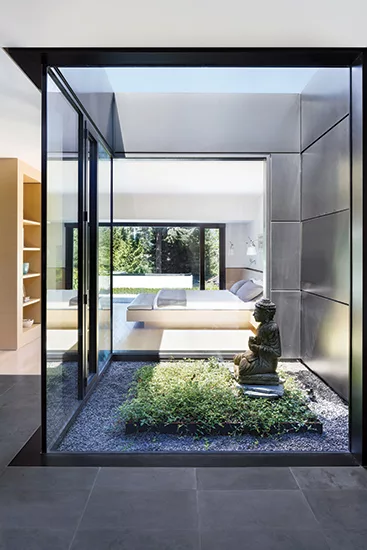

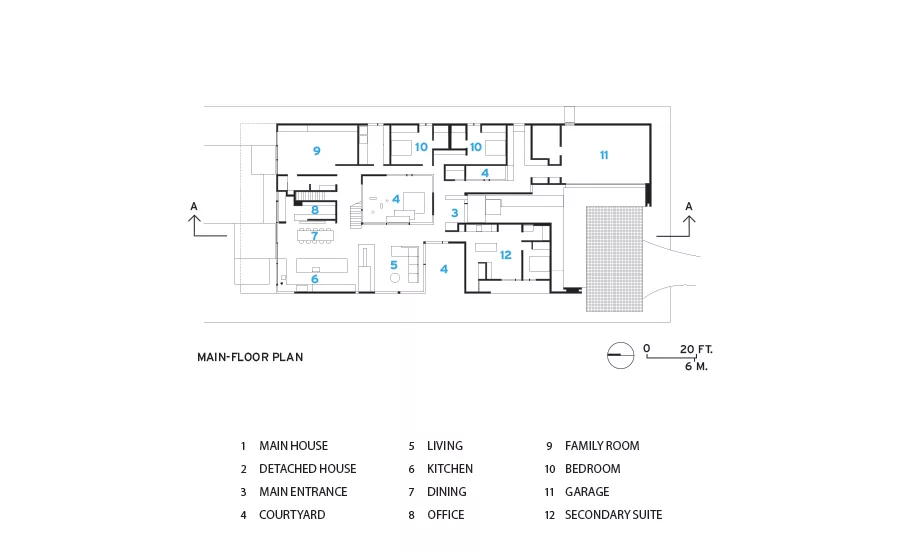

The main house is designed for strategic opacity, with only minimal glazing adjacent to its deeply recessed front door. Walking up to it, visitors have no sense of the other dwellings. To avoid interior window-to-window sightlines, Jones conceived the home to be inward-looking, its living spaces arranged around glazed courtyards. Upon entering, highlights from the couple’s art collection are visible through the glass walls of the largest courtyard.

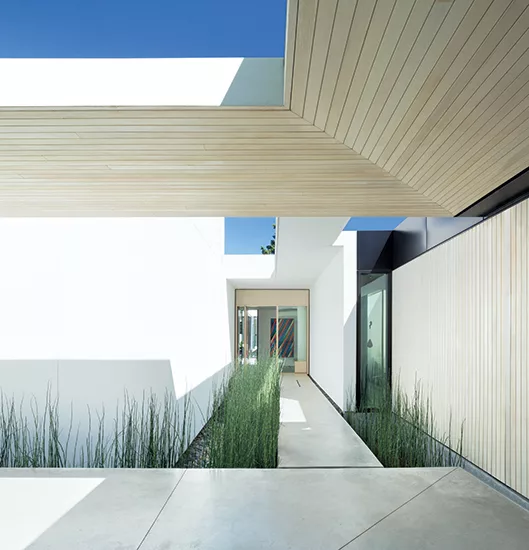

In every direction, there are glimpses of greenery: on the west wall, through a long slot window in the double-height kitchen; on the north, through a series of sliding glass doors; and, opposite the central courtyard, windows look onto 6- to 10-foot-high cedar hedges that conceal the long entrance path to the detached house at the back of the property. The interior space is flooded with daylight, punctuated by carefully controlled views to the outdoors that bear little trace of the other households.

Jones harnessed what he calls “the power of landscape architecture” to demarcate the three units while visually unifying the overall design. It also adds a psychological layer of distance from the city. “It’s not about not liking your neighbors,” says Jones. “It’s about a sense of wellbeing and feeling safe.”



D'Arcy Jones Architecture
304-175 East Broadway
Vancouver, British Columbia

Telephone: (604) 669-2235
Fax: (604) 669-2231


Personnel in architect's firm who should receive special credit:

Principal: D'Arcy Jones
Team: Milos Begovic, Daan Murray, Amanda Kemeny, Matthew Ketis-Bendena



Dan Wicke Wicke Herft Maver Engineers



Landscape softscape: Considered Design

Landscape hardscape: D'Arcy Jones Architecture Inc


General contractor:

CE Miles



Ema Peter



Structural System

Cast in place concrete, wood frame construction, steel moment frames

Exterior Cladding

Metal/glass curtain wall: Western Window and Door by Pinnacle Glass


Built-up roofing: SBS 2 ply torch-on roofing membrane


Metal frame: Western Window and Door


Glass: Thermo-pane Low-E Argon filled

Skylights: Frames: Western Window and Door Thermo-pane Low-E Argon filled


Entrances: Q-Point Kitchens Ltd.

Wood doors: Q-Point Kitchens Ltd.

Sliding doors: Q-Point Kitchens Ltd.


Locksets: Emtek

Closers: Rixson

Pulls: Custom stainless steel by architect

Interior Finishes

Cabinetwork and custom woodwork: Q-Point Kitchens Ltd.

Paints and stains: Benjamin Moore

Paneling: Q-Point Kitchens Ltd.

Special surfacing: Caesarstone Quartz

Floor and wall tile: Honed basalt

Special interior finishes unique to this project: Custom white oak hardwood floors:

Wood Expressions

Custom steel stair: Metal Mart


Chairs: Inform Interiors

Tables: Bensen Inform Interiors

Upholstery: Inform Interiors


Downlights: Lightolier recessed halogen


Grohe faucets

Toto toilets

Toto sinks


Energy management or building automation system: Heat pump
