Home » Topo House
House of the MonthResidential Architecture

Topo House

A hill-hugging landform of a structure that rises like a zigzagging ramp out of a grassy incline.

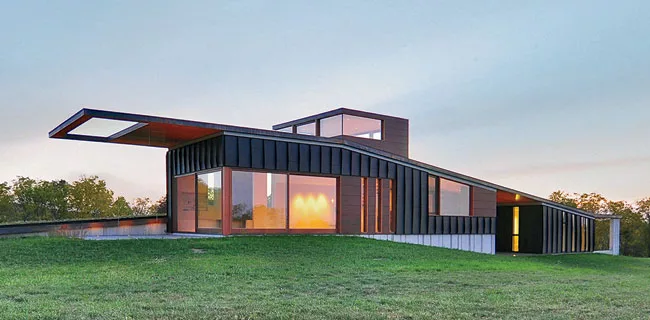

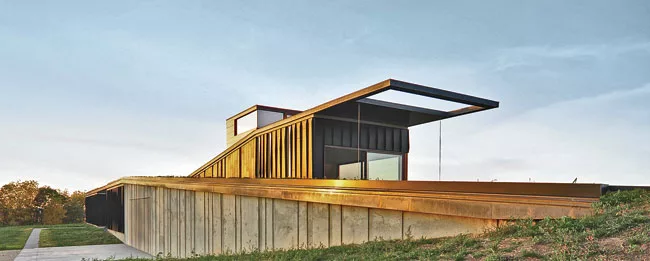

Set into a gentle grassy slope, the house has a copper roof and concrete-fiber rainscreen walls with black aluminum fins.
Topo House
Johnsen Schmaling Architects
Blue Mounds, Wisconsin
Set into a gentle grassy slope, the house has a copper roof and concrete-fiber rainscreen walls with black aluminum fins.
Photo © John J. Macaulay

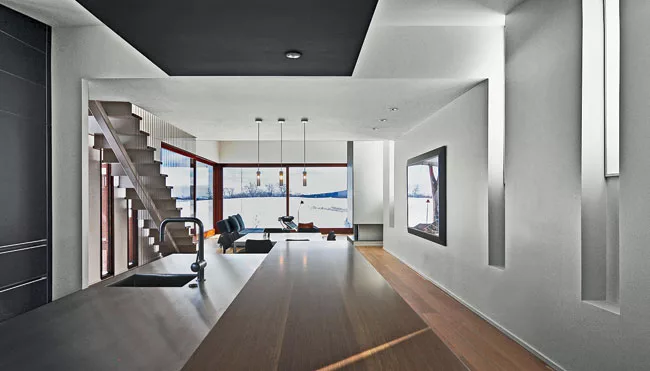

Inside, the kitchen, dining, and living spaces open out to an expansive view.
Topo House
Johnsen Schmaling Architects
Blue Mounds, Wisconsin
Inside, the kitchen, dining, and living spaces open out to an expansive view.
Photo © John J. Macaulay
Set into a gentle grassy slope, the house has a copper roof and concrete-fiber rainscreen walls with black aluminum fins
Topo House
Johnsen Schmaling Architects
Blue Mounds, Wisconsin
Set into a gentle grassy slope, the house has a copper roof and concrete-fiber rainscreen walls with black aluminum fins
Photo © John J. Macaulay
Topo House
Topo House
Johnsen Schmaling Architects
Blue Mounds, Wisconsin
Image courtesy of Johnsen Schmaling Architects
Topo House
Topo House
Johnsen Schmaling Architects
Blue Mounds, Wisconsin
Photo © John J. Macaulay
Topo House
Topo House
Johnsen Schmaling Architects
Blue Mounds, Wisconsin
Photo © John J. Macaulay
Topo House
Topo House
Johnsen Schmaling Architects
Blue Mounds, Wisconsin
Photo © John J. Macaulay
Topo House
Topo House
Johnsen Schmaling Architects
Blue Mounds, Wisconsin
Photo © John J. Macaulay
Topo House
Topo House
Johnsen Schmaling Architects
Blue Mounds, Wisconsin
Photo © John J. Macaulay
Topo House
Topo House
Johnsen Schmaling Architects
Blue Mounds, Wisconsin
Image courtesy of Johnsen Schmaling Architects
Topo House
Topo House
Johnsen Schmaling Architects
Blue Mounds, Wisconsin
Image courtesy of Johnsen Schmaling Architects
Set into a gentle grassy slope, the house has a copper roof and concrete-fiber rainscreen walls with black aluminum fins.
Inside, the kitchen, dining, and living spaces open out to an expansive view.
Set into a gentle grassy slope, the house has a copper roof and concrete-fiber rainscreen walls with black aluminum fins
Topo House
Topo House
Topo House
Topo House
Topo House
Topo House
Topo House
Topo House
May 16, 2014
Lamar Anderson
KEYWORDS Wisconsin
Reprints
No Comments

Architects & Firms

Johnsen Schmaling Architects

Wisconsin

The trouble with building on unspoiled terrain is, well, spoiling it. When a nature-loving couple showed Johnsen Schmaling Architects their plot of land in the rolling hills of rural Wisconsin, the designers realized that any structure built on the site could be seen by hikers at the top of the adjacent Blue Mound State Park.

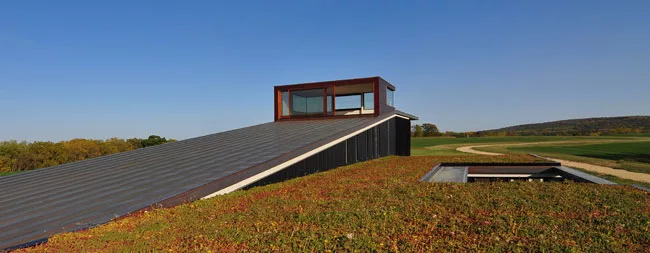

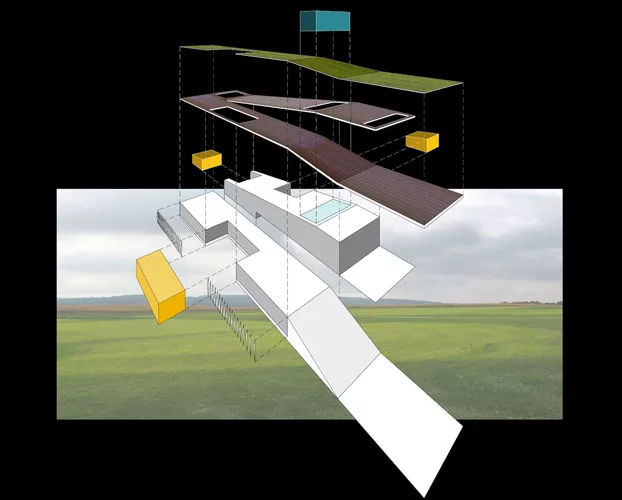

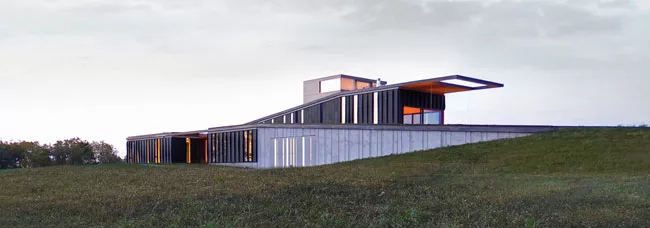

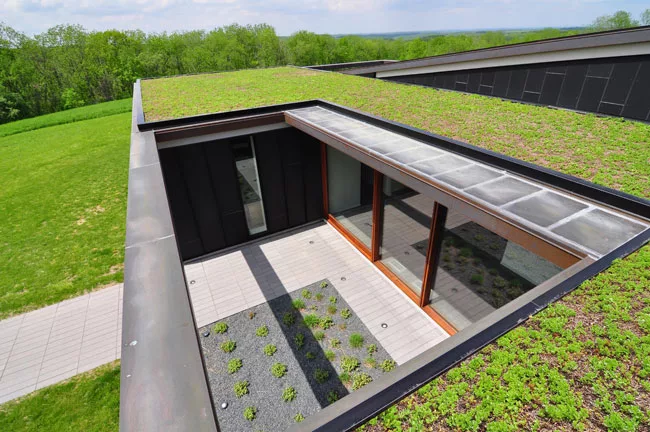

In response, the firm came up with Topo House, a hill- hugging landform of a structure that rises like a zigzagging ramp out of a grassy incline. They configured it as two thin bars, slightly offset, that gradually climb the slope of the site. At the house's highest point, an observatory pops out of the copper roof like a squared-off modernist periscope, and, at its lowest, a vegetated rooftop merges with the hillside. “It's almost like a microcosm of what the landscape does around it,” principal Sebastian Schmaling says of the 3,300-square-foot steel, concrete, and wood structure. The cladding—a concrete-fiber-panel rainscreen striated with black anodized-aluminum fins—is a kind of microcosm of the land as well. The fins peak at different points, yielding an undulating texture that casts shifting shadows and mimics waves of windblown grass.

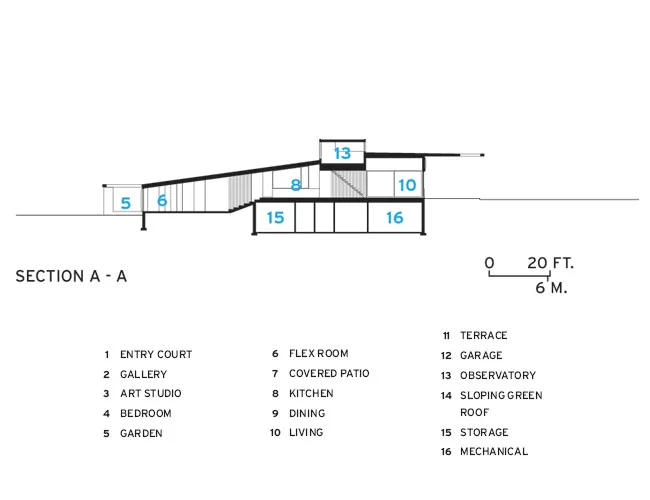

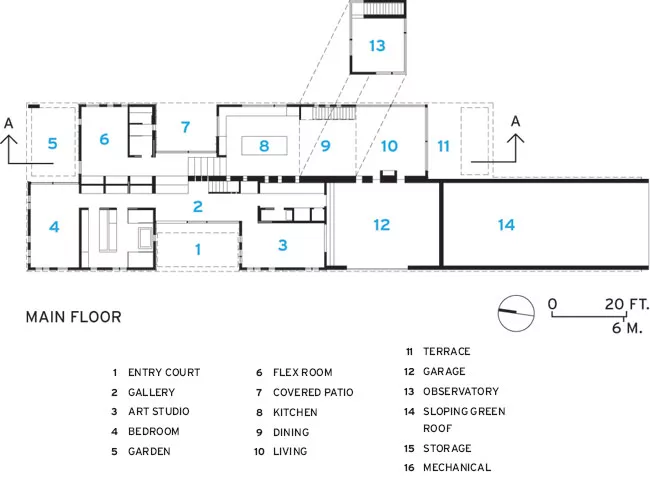

Inside, the floor plan feels like that of a single-story house, but pulled apart and staggered, as if a split-level ranch kept splitting. The architect used five separate floor plates (all, save for a partly submerged basement level, slab on grade) linked by short sets of stairs. Visitors enter through the house's lower half, via a courtyard and a glass-fronted foyer that shows off the couple's contemporary art collection. The foyer, sandwiched between the master suite to the north and an art studio to the south, sends visitors up a short set of steps that leads to another courtyard. The rest of the house unfolds southward, rising with the hill to progress from a neutral gray kitchen to the simple white dining and living rooms, where the roof cantilevers over a terrace to frame the view. Like gaps in the tree canopy on a hiking trail, tall, narrow slot windows offer teasing glimpses of the outdoors that open up at the house's glazed endcaps. A staircase in the dining room leads to the glassed-in observatory. “It's a journey through the space rather than having everything presented to you at the same time,” says Schmaling.

Gross square footage: 2,940 square feet

Completion Date: 2013

People

Architect:
Johnsen Schmaling Architects
1699 N. Astor Street
Milwaukee, Wisconsin 53202
Phone: 414.287.9000

Personnel in architect's firm who should receive special credit:
Brian Johnsen, AIA, and Sebastian Schmaling, AIA, LEED AP

Interior designer:
Johnsen Schmaling Architects

Engineer:
Larson Engineering

General contractor:
Yahara Builders, LLC

Photographer(s):
John J. Macaulay

CAD system, project management, or other software used:
AutoCAD, SketchUp



Products

Structural system
Reinforced concrete foundation; hybrid steel and wood frame.

Exterior cladding
Rainscreen:
CBF concrete fiber board

Wood:
Cedar

Moisture barrier:
Vaproshield

Other cladding unique to this project:
Prodema

Roofing
Built-up roofing:
Johns Manville

Metal:
Copper

Windows
Wood frame:
Marvin and Custom

Glazing
1' Low-E argon-filled insulated glass

Doors
Entrances:
Custom

Wood doors:
Northland

Top-Hinged Garage Door:
Schweiss Hydraulic Door

Hardware
Door Hardware:
Schlage, Amerock

Interior finishes
Cabinetwork and custom woodwork:
Bulthaup (kitchen); custom

Paints and stains:
Benjamin Moore (Aura and Regal series)

Floor and wall tile:
Glasshues (bathroom walls)

Lighting
Interior ambient lighting:
Juno, Iris

Downlights:
Juno, Iris

Exterior:
Bega

Plumbing
Bathroom Sinks:
Lacava

Plumbing Fixtures:
Kohler

Kitchen Faucet:
Grohe

Other unique products that contribute to sustainability:
'Waterfurnace' Geothermal closed loop system (heating and cooling)
'Biofoam' soy-based closed cell expanding foam insulation
'SummerAire: Heat Revovery Ventilator
'Paveloc' Permeable Pavers

Add any additional building components or special equipment that made a significant contribution to this project:
Fa'ade Fins: Custom CNC-fabricated, black anodized aluminum
