Lighting & Electrical
Contract, Commercial, Residential, Outdoor
Record Products
Stellina Indirect
This incredibly slim 1½" high by 4" wide LED pendant casts light upward, delivering an efficient 133 lumens per watt at 5–10W per foot. Softly curved in shape, the aluminum fixture is available in 56" or 104" lengths, endcaps included. The Stellina mounts with aircraft cable and can be ganged to accommodate countless configurations. It also comes with a variety of dimming and daylight controls. amerlux.com circle 120
Stadium Pro
Featuring polycarbonate lenses and a die- and gravity-cast aluminum body, this LED heavy hitter meets the demands of outdoor professional sports venues, providing a 115,000-lumen output per fixture and a 75% energy savings over traditional alternatives. State-of-the-art features include color tuning and flicker-free operation optimized for HDTV broadcasts and slow-motion replays. It also offers glare-minimizing optics and the ability to control special effects in each quadrant. ephesuslighting.com circle 131

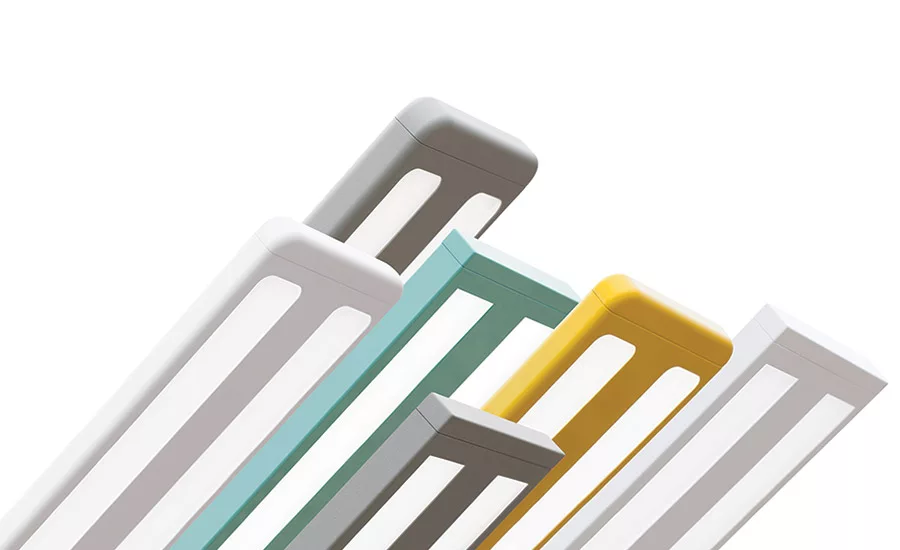

FloatPlane LED
With a performance of 129 lumens per watt, the 1.2" high x 8" wide LED linear fixture from Philips Ledalite offers plenty of flexibility. It comes in 4', 6', and 8' lengths and in suspended or wall-mount versions. Available with curved or squared edge caps, it is available in standard matte-white, black, and titanium-silver colors or in custom Pacific Aqua and Surf hues. lightingproducts.philips.com circle 124
Revelation Skyceiling
Designed to transform large internal spaces into restorative lighted environments, this modular system works with or without a ceiling grid. It offers standard image panels up to 4' square, with larger custom sizes available for its mega-format, high-resolution digital images. The company’s slim, LED edge-lit lighting system provides daylight-quality illumination, enhancing the illusion of a skylight where there is none. skyfactory.com circle 133
Magneto
What makes Foscarini’s new reading lamp a standout? The ease with which its wand-like ABS diffuser can be raised, lowered, and focused in any direction. (A magnetic spherical joint connecting the diffuser to its support rod creates that 360° flexibility.) Available in floor and table versions, Magneto features integrated LED lamping and a body made from epoxy powder-coated steel. foscarini.com circle 121
Glide Wood Up/Down Suspension
Long and lean, this 1½" high linear pendant features direct and indirect illumination from its flat 1" wide white lens with 60° beam spreads. The dimmable LED lamping features color temperatures ranging from a warm 2,700K to a cool 5,700K at 85+ or 92+ CRI. Options include 36" to 120" fixture lengths, one or two square canopies, black or white louvers, and a choice of five wood finishes. edgelighting.com circle 130
Lumec Classic Style & Sleek Vision
Lumec Classic Style & Sleek Vision
This series of retro (shown left) and contemporary post tops features ClearGuide Technology, a state-of-the-art vertically oriented light engine that appears transparent during the day but provides full illumination at night—minus the glare typical in similar LED street lighting. Each post-top series delivers 3,813 to 8,152 lumens, or up to 114 lumens per watt. The bollards provide 495 to 1,915 lumens, or up to 83 lumens per watt. lightingproducts.philips.com circle 132
Trac-Master T272L Arc L LED Series
This versatile track fixture works in retail, commercial, and residential settings. Measuring 8¾" high x 5" wide x 2½" deep, the T272L delivers up to 1,648 lumens of brilliant white light from 15W, with efficacies reaching 110 lumens per watt. Designed with a subtle high-tech styling, it is available in white, black, and silver finishes. junolighting.com circle 134
Fraxion
This extremely shallow family of fixed, adjustable, and wall-wash downlights illustrates Lucifer’s penchant for detail. With recess depths of 3.8" for fixed models and 4.3" for full-tilt applications, this fixture, with a 4" aperture, comes in trimless or .3" MicroFlange versions with integrated mounting systems for rapid installation; 80+ or 95+ CRI lamps deliver up to 3,000 lumens, with beam spreads from 10° to 60°. Multiple finishes and color temperatures are available. luciferlighting.com circle 122

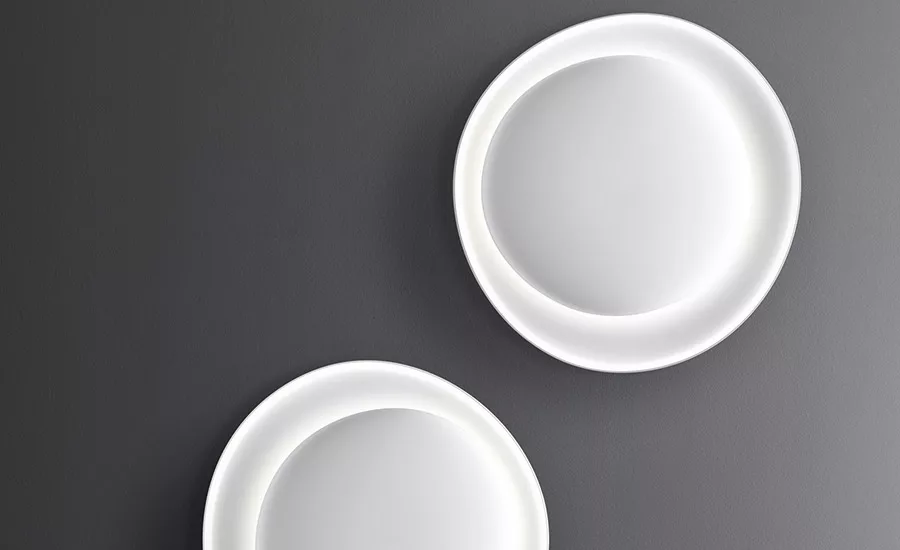

Bahia Mini Wall
Consisting of an asymmetrical layering of two matte-white egg-shaped plates, this luminaire radiates a warm LED glow. The 21⅝" round by 2½" deep fixture, which is made of injection-molded polycarbonate, adds texture and interest to walls and ceilings in commercial and hospitality settings. foscarini.com circle 127
Quantum LP
At ¾" square, this tiny fixture by MINIMIS may be the smallest architectural luminaire in the world. Manufactured in Texas out of Grade 5 titanium—and featuring a custom-crafted, sharp-cutoff metallic reflector and 9mm aperture—Quantum can be installed in a variety of materials, including drywall, wood, glass, tile, stone, concrete, and steel. This accent and decorative lighting suits indoor or outdoor settings, including marine and IP67 harsh environments. minim.is circle 126
Rincon
Powered with an LED light engine from CREE, this 117" tall x 4½" square fixture adds the missing component to Forms+ Surface’s existing Rincon line of bollards and pathway lighting. As with its family members, this latest model is notable for its precise stainless-steel construction and minimalist styling. forms-surfaces.com circle 123
Sail Mirror LED
A frosted-glass insert backlit by dimmable 2,700K LEDs borders this surface-mounted mirror. An even glow and 92+ CRI make Sail an ideal complement for bath and makeup vanities. edgelighting.com circle 125
Murro LED Wall Wash
This compact and passively cooled track-mounted fixture delivers up to 2,000 or 3,000 lumens at 91.1 lumens per watt. A 2:1 spacing ratio provides more light on the wall with fewer of the 43∕6" wide x 3∕6" fixtures. Dimmable to less than 5%, the Murro LED wall wash features Crisp White technology and offers 2,700K and 3,000K color temperatures at 97 CRI. amerlux.com circle 129
Neo-Ray Define Series
Available in 1", 2", 3", 4", and 5" widths, this linear recessed LED luminaire integrates into a wide variety of ceiling systems and vertical installations. Lengths can be specified to the nearest inch; other options include integrated motion and daylight sensors, high or low lumen packages, and a selection of color temperatures up to 90 CRI. The fixture also boasts a patent-pending lens clip—for flush, regress, or drop lenses—which prevents light leaks as well as bug and dust infiltration. eaton.com circle 128
