Kawartha Trades and Technology Centre by Perkins + Will
Architects & Firms
In today’s increasingly competitive job market, some have argued for a return to vocational training. By the end of the last century, these programs were often thought of as an educational dead end, but, given the declining return on investment associated with a standard university education, many schools are now ramping up trade programs. One of these is Fleming College in Peterborough, Ontario. Following a mandate to focus on the development and growth of specialized construction training, the school opened the new 87,000-square-foot Kawartha Trades and Technology Centre (KTTC) in September 2014 at a cost of $42 million.
Located on the main campus, the new facility replaces an outdated industrial building on a remote satellite site. With a large portfolio of educational, sports, and recreational facilities, Perkins+Will Canada was a natural choice to architecturally redefine a new kind of skilled-trades education. Flooded with daylight and featuring generously scaled, flexible, and open spaces, the KTTC welcomes students who can explore a range of programs including carpentry, electrical, plumbing, welding, heating, and refrigeration.
The timing of the KTTC project neatly dovetailed with the development of a new master plan of the campus, ensuring a well-considered siting strategy. From a choice of several locations, Perkins+Will selected one next to the student commons, creating a new gateway to the campus in the process. According to design principal Duff Balmer, “Our decision was driven by the sloping topography and woodlot edge; we wanted to integrate building and landscape as best we could, much in the same way that Ron Thom did with the original campus building in the 1970s.”

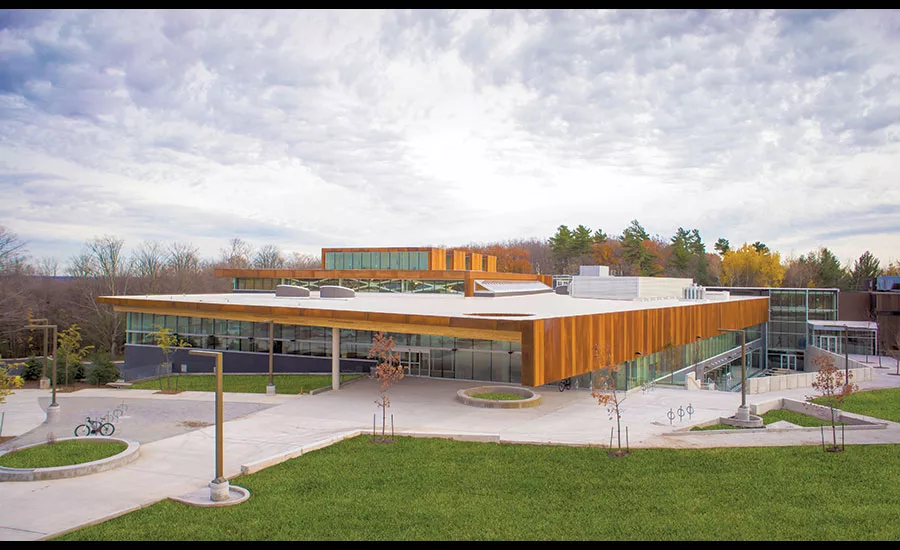

Referencing its industrial lineage, the building’s neutrally toned material palette of Cor-Ten steel, concrete, and wood merges seamlessly with its natural and built context. Richly hued cedar sheathes the soffit of the extensive cantilevered roof in the entry plaza. The amply glazed building includes skylights and clerestory windows, bringing abundant light to the interior spaces.

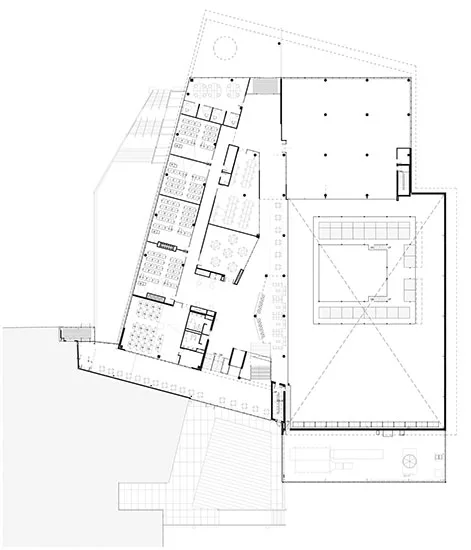

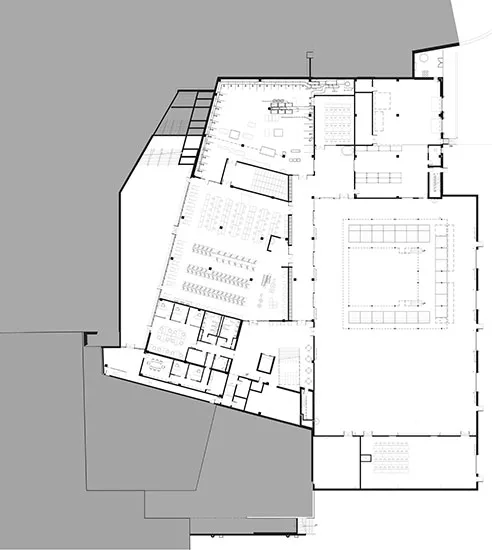

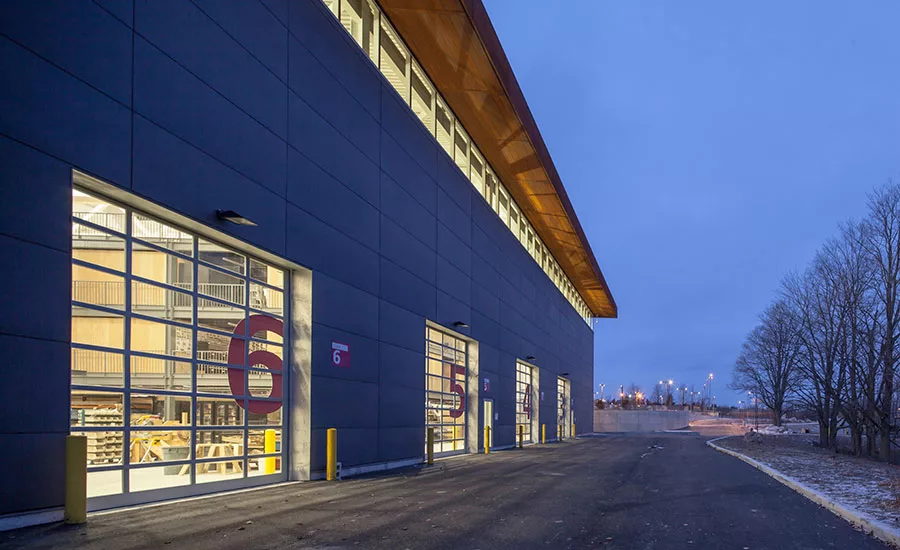

In plan, the building is comprised of two superimposed orthogonal shedlike volumes that nestle into the slope. Academic and administrative functions are located on the upper level, while the lower level accommodates utilitarian workshop spaces. Direct access to loading and staging areas was an important consideration, as was the provision of an adjacent courtyard carved into the landscape that extends project space to the outdoors, maximizing the enjoyment of daylight and fresh air.

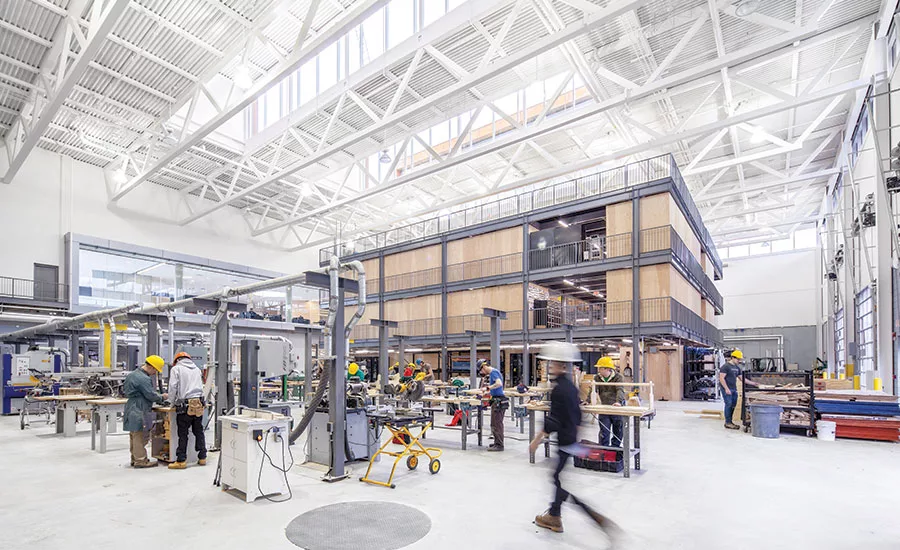

An enormous warehouse-like “learning factory” contains a four-story “teaching cube” of open platforms, a unique feature that simulates a real-world, multilevel construction site in which various trades work together collaboratively. This interdisciplinary approach enables students to prepare for the complex building sites they may experience after graduation.

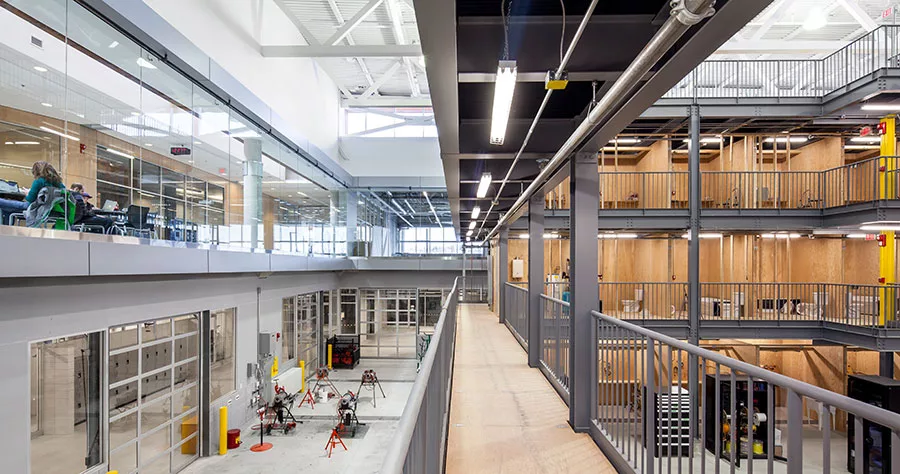

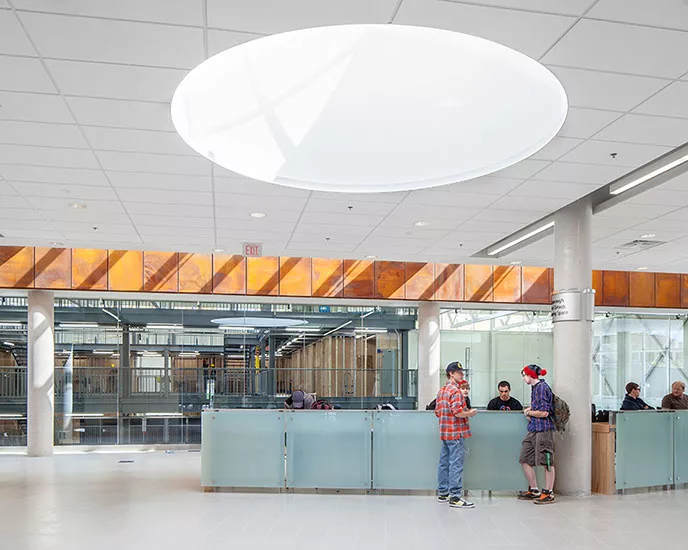

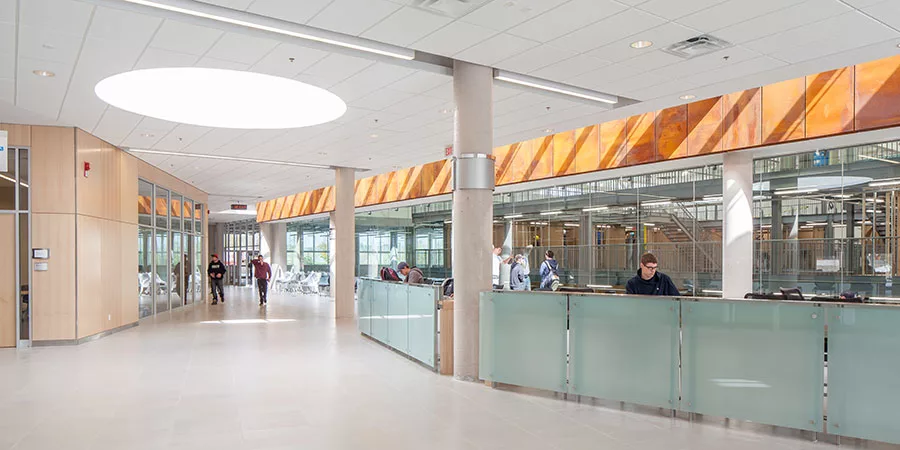

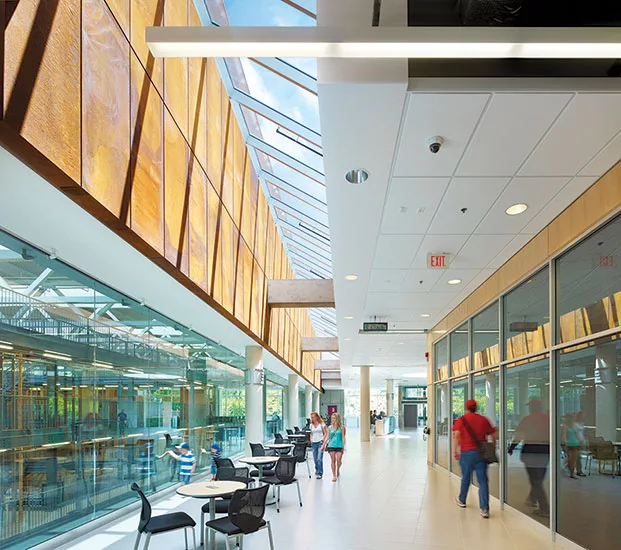

The architects have made visibility a priority: views from the common area on the upper level overlook the busy hive of activity in the learning factory, enabling “theoretical and applied teaching to work in tandem,” according to Balmer. And by drawing students from sequestered classrooms to Wi-Fi–enabled common spaces, the design fosters social interaction and the sharing of ideas. In fulfilling the mandate of creating a more immersive teaching environment, the building’s didactic purpose is expressed by the mechanisms and systems that were intentionally left exposed to demonstrate best practices in construction and sustainability. The project is on track for LEED Gold certification.
In its desire to provide alternative pathways to learning, the KTTC has established a strong affiliation between training and employment through partnerships with private industry, which in turn has stimulated job growth in the region. Since the facility’s completion, enrollment has increased by 13 percent—most notably among women. It has “quickly become a tremendous asset for the college and the broader community,” according to Maxine Mann, dean of the School of Trades and Technology. The KTTC even attracts other Fleming College students and visitors, who just enjoy spending time in the building. Ultimately, says Balmer, “the project has caused a perceptual shift with respect to what skilled-trades training looks like.”
Perkins+Will Canada Inc.
Personnel in architect's firm who should receive special credit:
Managing Principal: D’Arcy Arthurs
Design Team: Dave Mitchell, Steve Ploeger, Tony Diodati, Ashley McKay, Tamara Schmidt
Engineers: Structural: Stephenson Engineering Limited
Landscape: Fleisher Ridout Partnership Inc.
Photographer: Tom Arban, tomarban.com (images 1, 2, 8, 9, 13, 14); Scott Norsworthy, scottnorsworthy.com (images 3, 4, 5, 6, 7, 10, 11, 12)
Sir Sandford Fleming College
87,000 square feet
Masonry: G.A. Masonry
Metal panels: Pollard
Metal/glass curtain wall: Barrie Metro Glass (curtainwall and interior screens)
Precast concrete: Phoenix Drywall (fibreC glassfibre concrete panels)
Wood: Mallet Millwork
EIFS, ACM, or other: KWC
Moisture barrier: AccuCut
Curtain wall: Barrie Metro Glass
Other cladding unique to this project: Phoenix Drywall (FibreC panels)
Built-up roofing: Pollard Enterprises
Metal: Pollard Enterprises (metal flashing)
Tile/shingles: Pollard Enterprises
Wood frame: Select Door & Frame
Metal frame: Select Door & Frame
Glass: Barrie Metro Glass
Entrances: Assa Abloy
Metal doors: Barrie Metro Glass
Wood doors: Select Door & Frame
Sliding doors: BNM Commercial Doors
Fire-control doors, security grilles: Mutual Mechanical
Special doors: BNM Commercial Doors
Exit devices: Cremer Brothers Electric
Pulls: Cremer Brothers Electric
Security devices: Cremer Brothers Electric
Acoustical ceilings: KWC
Cabinetwork and custom woodwork: Mallet Millwork
Paints and stains: Painting Services of Canada
Wall coverings: Painting Services of Canada
Floor and wall tile: HSW Floors
Carpet: HSW Floors
Interior ambient lighting: Cremer Brothers Electric
Exterior: Cremer Brothers Electric
Dimming system or other lighting controls: Cremer Brothers Electric
Elevators/escalators:KONE Elevators & Escalators
