Virginia Avenue Park Expansion

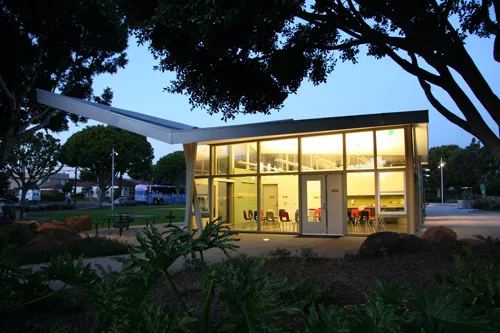

Photo © Marvin Rand

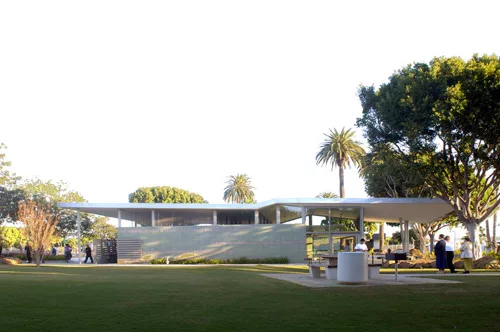

Photo © Marvin Rand
Photo © Marvin Rand

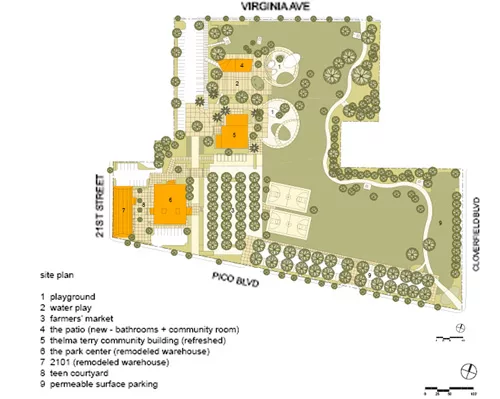

Image courtesy Koning Eizenberg

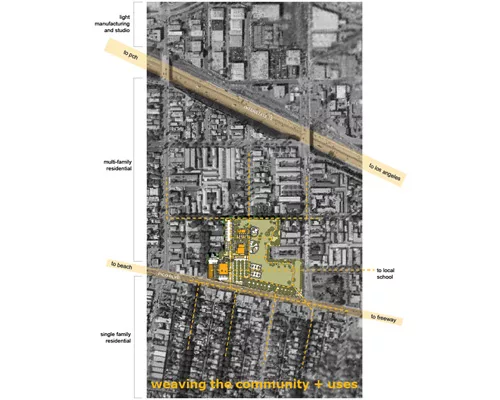

Image courtesy Koning Eizenberg

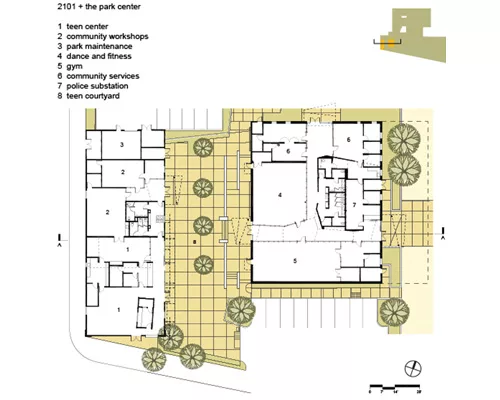

Image courtesy Koning Eizenberg

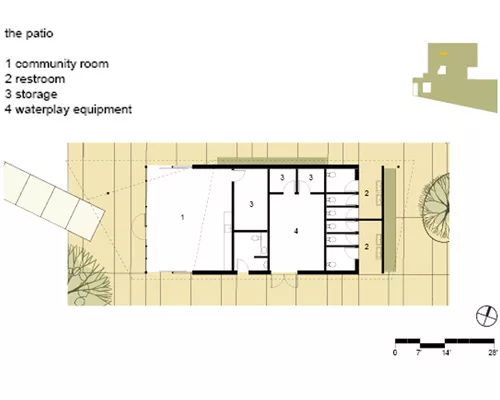

Image courtesy Koning Eizenberg
Architects & Firms
Santa Monica, California
Completion Date: October 2005
Owner: City of Santa Monica
Program: A 7,800-square-foot park center, 6,085-square-foot teen center, 1,500-square-foot patio, and 5,300-square-foot community center set on 9.4 acres.
Design concept and solution: In 1999, Koning Eizenberg Architecture and Spurlock Poirier Landscape Architects were commissioned to design the Virginia Avenue Park expansion. The firms were given the task of creating a community resource that would help unite diverse cultures within a dense neighborhood. The city acquired an additional 3.2 acres for the project and the architects designed pedestrian paths to connect the existing park with the new acreage and pavilion to the north. The public restrooms on the southern end are adjacent to a new children’s water-play area and playground. A former warehouse was converted into a teen center with a courtyard nearby. The Police Activities League building houses a gymnasium, dance and fitness studio, employment information and referral services office, administrative offices, and a police sub-station.
Gross square footage:
The Park Center: 7,955 sq. ft.
2101 (Teen Center) 6,086 sq. ft.
The Patio: 1,507 sq. ft.
Thelma Terry Community Center: 5,315 sq. ft.
Total: 20,863 sq. ft.
Site size: 9.4. acres
Total construction cost: $9.9 millions
Architect:
Koning Eizenberg
1454 25th Street
Santa Monica, CA 90404
T: 310.828.6131
F: 310.828.0719
www.kearch.com
PeopleOwner: Architect: Personnel in architect's firm who should receive special credit: Engineer(s): Structural Engineer: Parker-Resnick Structural Engineering Mechanical/Plumbing Engineer: MB&A Corporation Electrical Engineer: Nikolakopulos & Associates Consultant(s): Environmental Graphics: Newsom Design Lighting Designer: Lighting Design Alliance Geologist: Geotechnologies, Inc. Water Feature Consultant: Action Water Play Acoustic Consultant: Veneklasen & Associates LEED Consultant: CTG Energetics Inc. Public Artist: East Los Streetscapers Specification Writer: Philip Easton Hardware Consultant: Finish Hardware Technology Construction Manager: Black & Veatch General contractor: Photographer(s): Renderer(s): CAD system, project management, or other software used: PowerCADD
|
ProductsStructural system: Type V-NR, wood frame, with slab on grade Exterior cladding: Painted cement plaster Roofing: Windows: Aluminum: Glazing: Skylights: Solatube International Inc. Insulated-panel or plastic glazing: Polygal Doors: Sliding doors: Custom built wood Upswinging doors, other: Hardware: Hinges: Hager Pivots: Rixson Closers: Norton Exit devices: Von Duprin Pulls: Trimco Cabinet hardware: Julius Blum, Hafele America, Accuride, CR Laurence Interior finishes: Cabinetwork and custom woodwork: Painted MDF Paints and stains: Paneling: Plastic laminate: Nevamar Special surfacing: DuPont Corian Floor and wall tile: Dal Tile – bathroom walls & floors Resilient flooring: Carpet: Interface SuperFlor – offices Furnishings:Office furniture: By Owner Reception furniture: Blu Dot & George Nelson Lighting: Downlights: Lightolier, Neoray Task lighting: Lithonia, Lightolier, Williams, LC Doane Exterior: Louis Poulsen, Bronzelite, Gardco, Columbia, Hydrel & Tokistar Controls: Lutron Plumbing: Waterless Urinal: Waterless Co. Lavatory: American Standard Shower head + control: Chicago Sink: Elkay, Quick Crete Product Corp Water Fountains: Elkay, Haws
|
