Los Gatos Home by Mark English Architects
Los Gatos, California

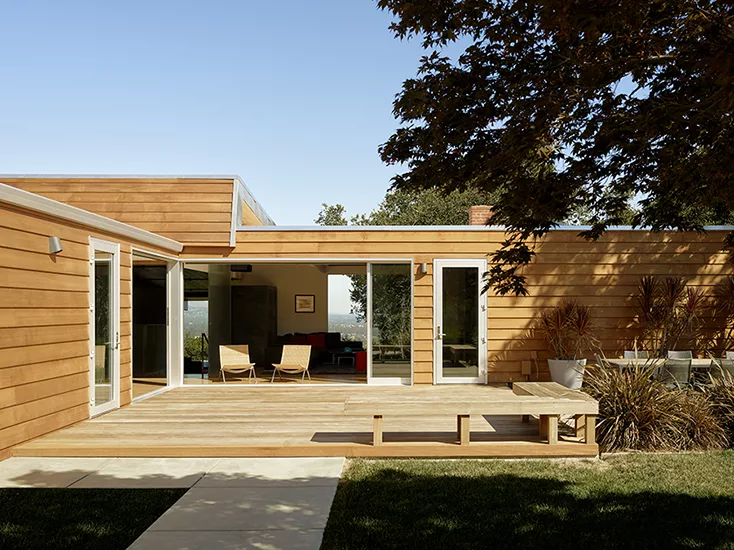

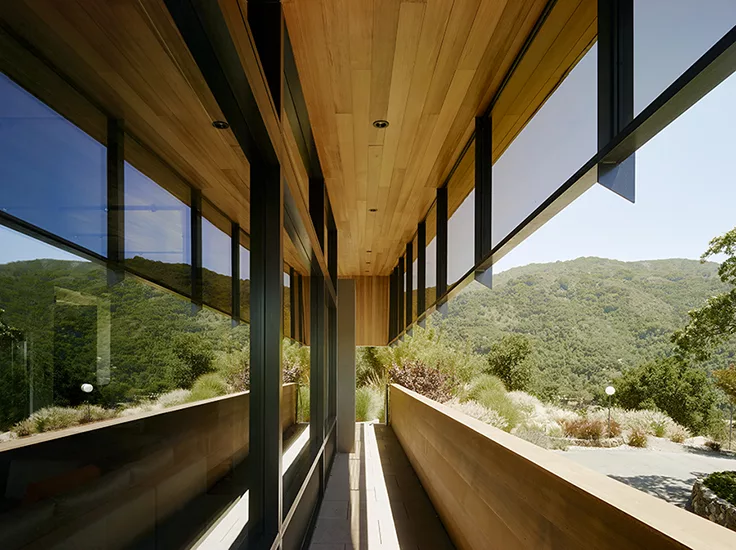

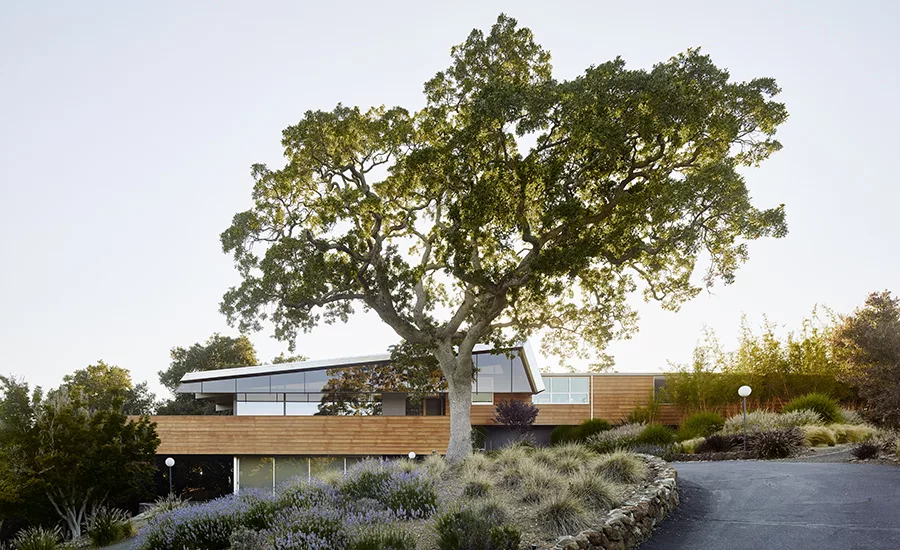

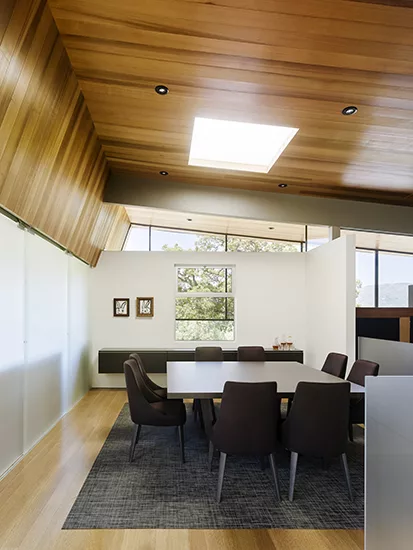

Photo © Joe Fletcher
Photo © Joe Fletcher
Photo © Joe Fletcher
Photo © Joe Fletcher
Photo © Joe Fletcher
Photo © Joe Fletcher
Photo © Joe Fletcher
Photo © Joe Fletcher
Photo © Joe Fletcher
Photo © Joe Fletcher

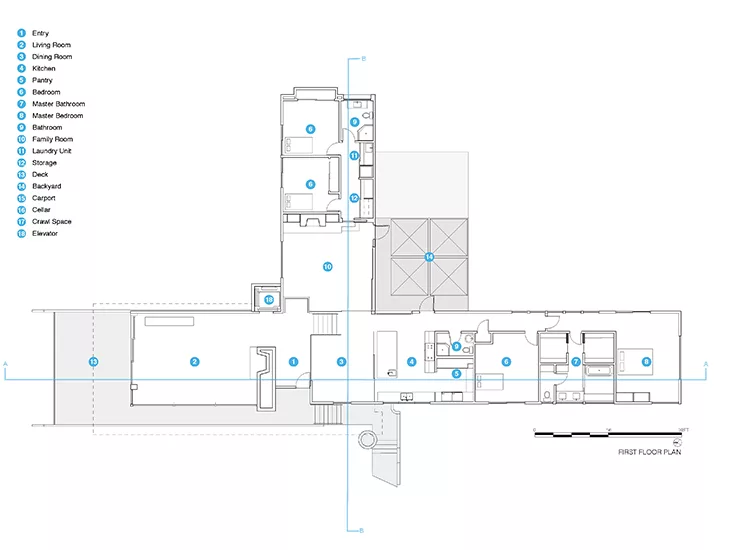

Image courtesy Mark English Architects
Image courtesy Mark English Architects
Architects & Firms
Project size: 3,400 square feet
Program: The project is a renovation and addition to an existing single-family midcentury hillside house. The existing open plan, roof form, cantilever deck, and basic layout epitomize the beloved inside-outside living style of Californian modernism. The challenge was to take a wonderfully conceived, but poorly realized structure and make it reach its potential under technological and budgetary constraints.
Location: Los Gatos, California

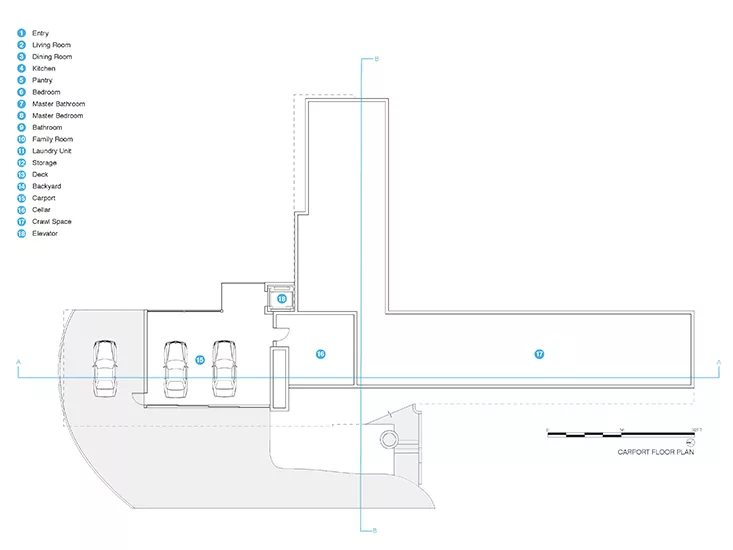

Solution: The design response accentuates the openness of the façade and the continuity of surface throughout, and creates the ability to seamlessly subdivide the space with translucent screens for more gracious living. The space below the house’s cantilevering living room was re-purposed as parking, with a sliding stacking door system that moves to the side, maintaining the feeling of flight. All lighting was replaced with LEDS that are tied into a home automation control system, and new window and door systems were installed.

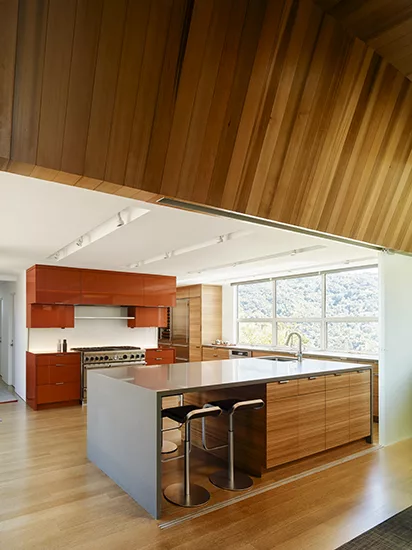

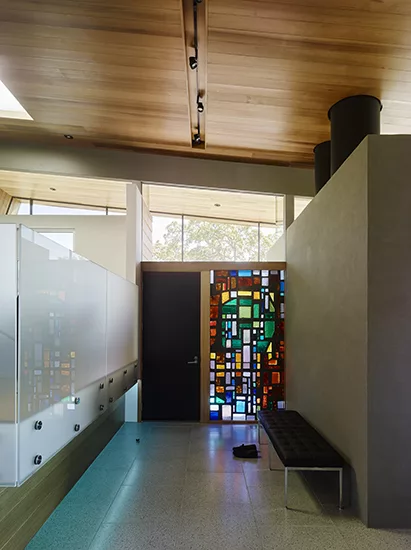

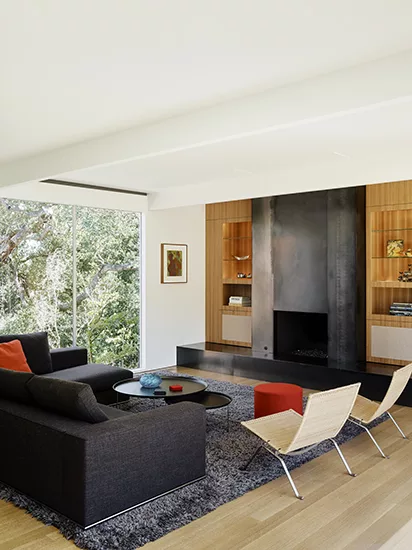

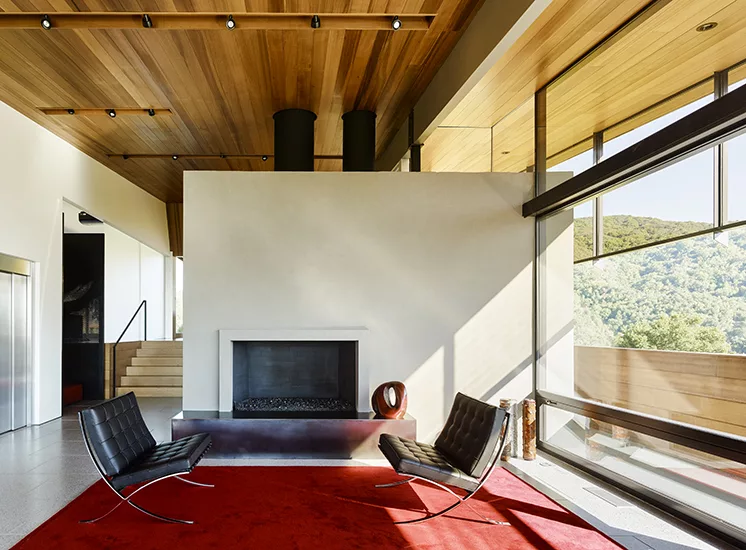

Construction and materials: A contemporary cast glass translucent window was added to the far end of the entry area, in dialogue with an existing one at the opposite end. The theme of transparency is also expressed in the half wall panels around the dining area, as well as the sliding frameless glass panels between the kitchen and dining areas, and the dining and family rooms. The entry area, living room, and terrace have new custom cast concrete tiles for a seamless transition to the exterior. Hot-rolled steel is used at the two existing fireplaces, and the screen between them. The steel hearth for the family room fireplace is sculpted to form steps up to the laundry and guest bedroom wing of the house, their form being purely sculptural when the hidden coplanar wood veneered door is closed. All of the cabinet wood veneer in the kitchen area and family room is made of reclaimed Eucalyptus felled at the Presidio in San Francisco.
Additional Information
Completion date: June 2016
Gross square footage: 3,400 square feet
Total project cost: $1,300,000
Client/Owner: Withheld
CreditsArchitect: Mark English, AIA Personnel in architect's firm who should receive special credit: Project Architect: Mark English, architect, AIA
Architect of record: Mark English Architects
Engineers: GFDS Structural Engineers, San Francisco, CA
General contractor: De Mattei Construction, San Jose, CA
Photographer: Joe Fletcher, (415) 216-7948
|

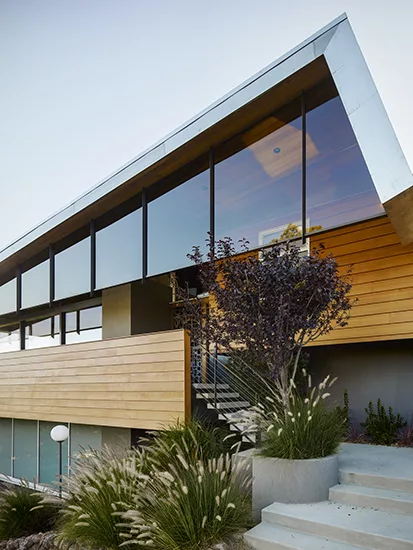

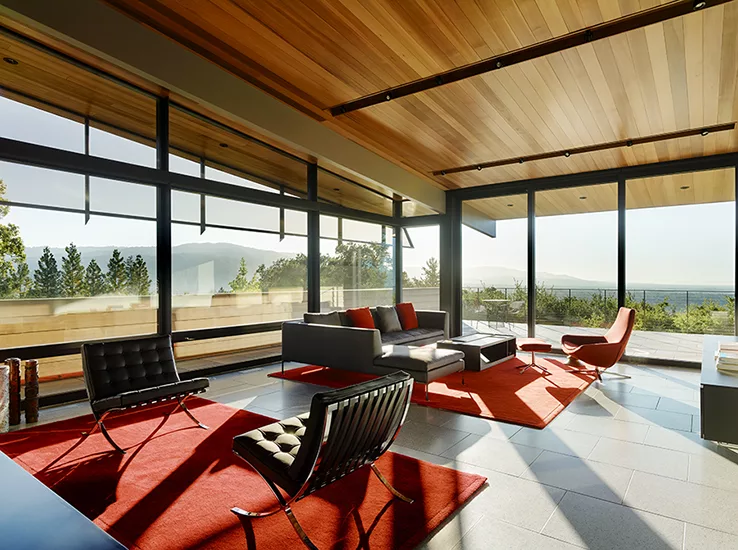

SpecificationsStructural System Wood frame and structural steel. Manufacturer of any structural components unique to this project: In the Living Room, the new window and door systems are exposed to 80 mile per hour winds with regularity. To resist these loads while minimizing the size of the structure (view obstruction) and retain a store-bought warranty, we came up with a hybrid window system. Vertical 1/2" thick x 12" deep hot rolled steel fins are sandwiched between storefront frames. A horizontal fin at 9 feet ties the vertical fins together and provides the armature for the roller shade enclosures. Exterior Cladding Masonry: Cement plaster. Metal/glass curtain wall: A new custom designed and fabricated powder-coated steel sunscreen structure is designed to hold panels of tinited tempered galss to act as a sunshade at the west facing (front) facade. Wood: Clear cedar horizontal Bevel siding with clear finish. Roofing Other: White cool roof TPO. Windows Metal frame: Fleetwood door and window systems. Glazing Glass: Guardian SuperNeutral 68 Low-E glass. Skylights: Velux. Doors Entrances: Painted solid core wood door, renovated original cast glass feature window. Metal doors: Fleetwood door and window systems. Sliding doors: Weiland Lift and Slide door, Living room. Special doors: Glass Stationary and moving Panels: Satin Etched tempered Starfire Glass with stainless fittings by CRL & Hafele. Hardware Locksets: FSB Closers: Sugatsune Flush Sliding door hardware for "disappearing" door panel in Family Room. Pulls: Hafele. Cabinetwork and custom woodwork: Cabinets: Custom by Cutting Edge Cabinets, San Jose, CA. Paneling: Horizontal Eucalyptus veneer panels by Cutting Edge Cabinets in the Family toom. Solid surfacing: Master Bathroom countertops, shower bench and shower walls: Pental Quartz. Floor and wall tile: Concrete Tile Floor: Polished tiles by Concrete Collaborative, Living Room and entry Raised flooring: Wood Living Room Ceiling: Clear Red Cedar with clear satin finish, no groove. Special interior finishes unique to this project: Wood Living Room Ceiling: Clear Red Cedar with clear satin finish, no groove. Furnishings Chairs: see below Tables: see below Other furniture: Living Room: Interior ambient lighting: Track Systems: Juno Trac 12 Downlights: Cree. Tasklighting: Lumenline 2 by Lumenpulse at Family Room fireplace niches. Exterior: Cree recessed. Dimming system or other lighting controls: Lutron. Conveyance Elevators/escalators: Garaventa Lift elevator. Energy Energy management or building automation system: Lutron Dimming. Other unique products that contribute to sustainability: Car Charging stations by Watt Point, Control Module inc. Add any additional building components or special equipment that made a significant contribution to this project: Free-standing decorative steel screen: Hot rolled steel, custom water jet cut decorative pattern by Blank & Cables, Oakland. |
