Not every structure should shout for attention: there’s nothing wrong with a well-designed background building. Handel Architects’ latest project, The House at Cornell Tech, a $115 million residential tower on the new computer, information, and engineering-sciences campus on New York’s Roosevelt Island, could have been a fine example of this notion. Heralded for its pioneering energy-conserving strategies, its form—a shaft extruded from a roughly rectangular footprint—is straightforward, if plain. Its windows are slightly inset, giving the facade’s alternating bands of light and dark gray metal some depth. And this skin has other subtle refinements, including its expression as a wrapper, with a louvered vertical “reveal” that extends from the entrance almost to the roof.

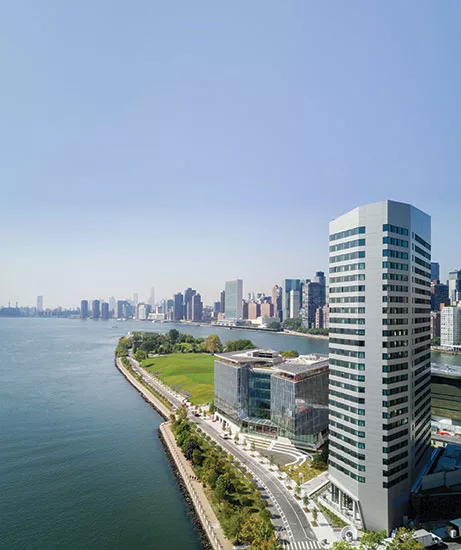

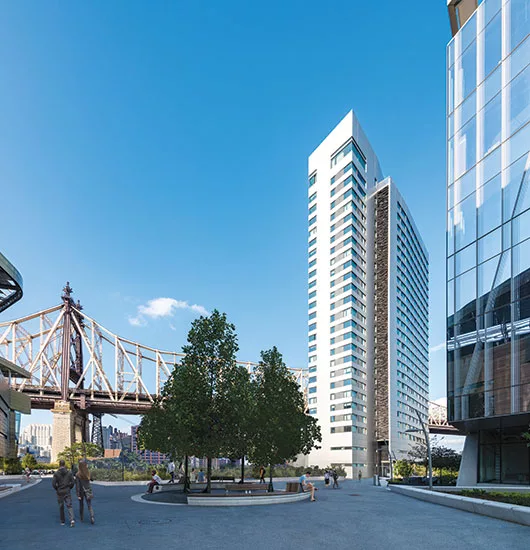

There’s one problem, however: The House is too tall and too prominent for such a simple response. It sits at the northern end of the 12-acre campus, which could eventually include up to 2.1 million square feet of facilities, and it rises next to the picturesque trusswork of the Queensboro Bridge. The 26-story-tall, 273,000-square-foot building is highly visible from the Manhattan and Queens riverfronts, part of an ensemble with the far more sculptural—and low-rise—Cornell Tech facilities built so far: Morphosis’s four-story academic building and Weiss/Manfredi’s six-story “co-location” building. It is also significantly taller than the 17-story Snøhetta-designed hotel and executive education center under construction just to the west. Because of its height and placement it dominates its neighbors, but looks flat-footed in their company.
Jump to credits & specifications
If The House is a missed opportunity for formal invention, it still represents a milestone for green multifamily development. As Handel partner Blake Middleton points out, the 352-unit apartment building for graduate students and faculty is expected to save 882 tons of CO2 per year, the equivalent of planting 5,300 trees. It is designed according to the principles of Passive House—an ultra-low-energy certification system for all building types, not just residential construction.
As part of its aspiration to create a state-of-the art campus, Cornell included the Passive House goal in its request for proposals issued in 2012. But the developers—the Hudson Companies and Related—were under no contractual obligation to pursue it. Nevertheless, the team embraced this vision and designed what is currently the tallest and largest Passive House anywhere in the world. That is no small achievement.
The main tenets of the program, known as “Passivhaus” in Germany, where it originated, include proper solar orientation; an extra-insulated, airtight building envelope that avoids thermal bridging; high-performance windows; and mechanical ventilation with heat recovery. Handel and its consultants designed to an energy budget that allowed no more than 4.75 kBtu/ft2 be expended for heating and 5.39 kBtu/ft2 for cooling each year and permitted a total energy use intensity (EUI) of no more than 38.1 per year. This figure represents a 73 percent reduction over the median EUI for New York buildings of similar type and size.

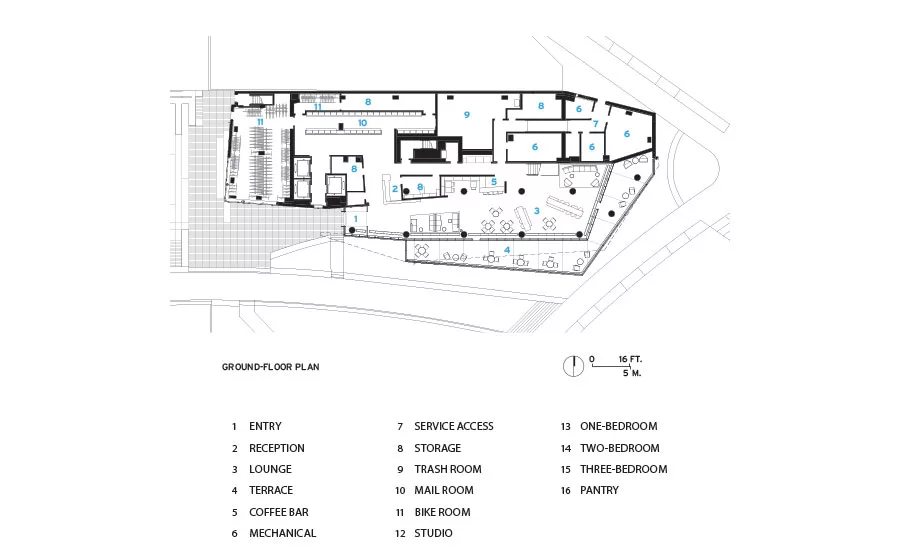

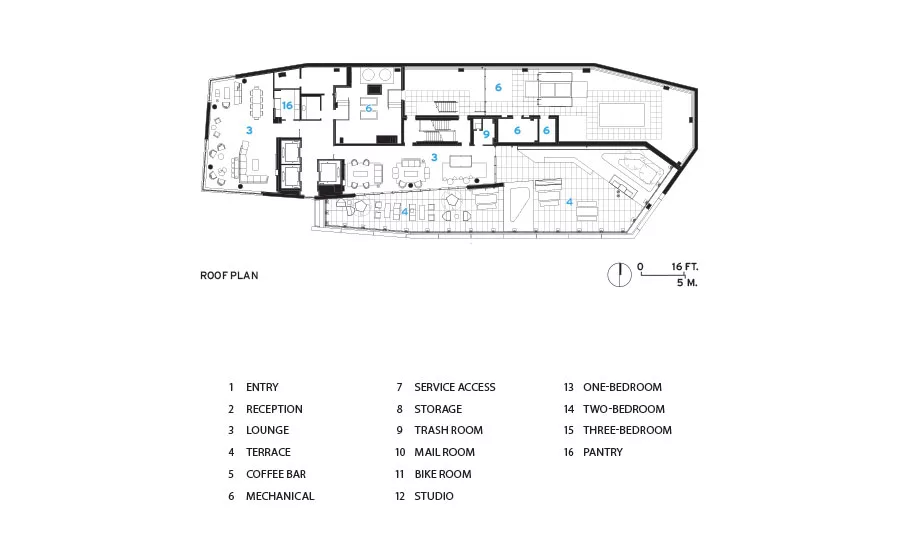

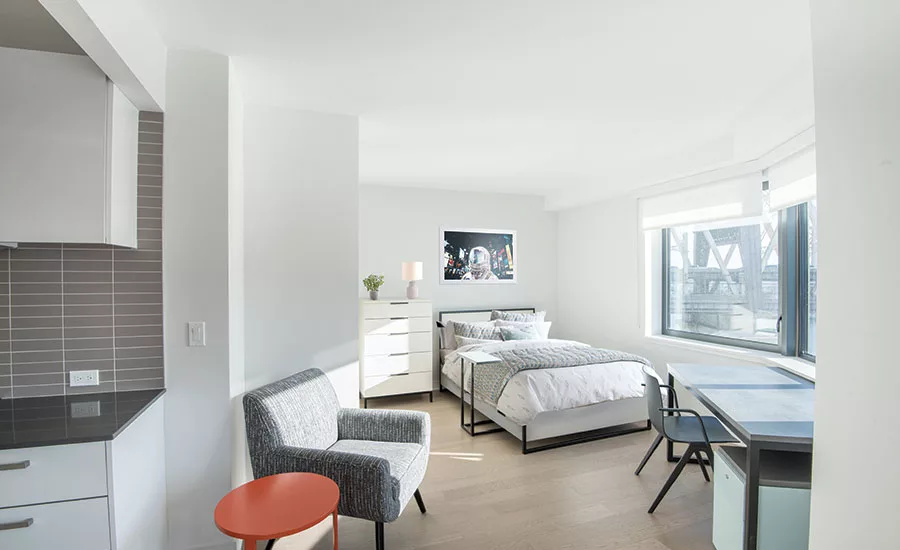

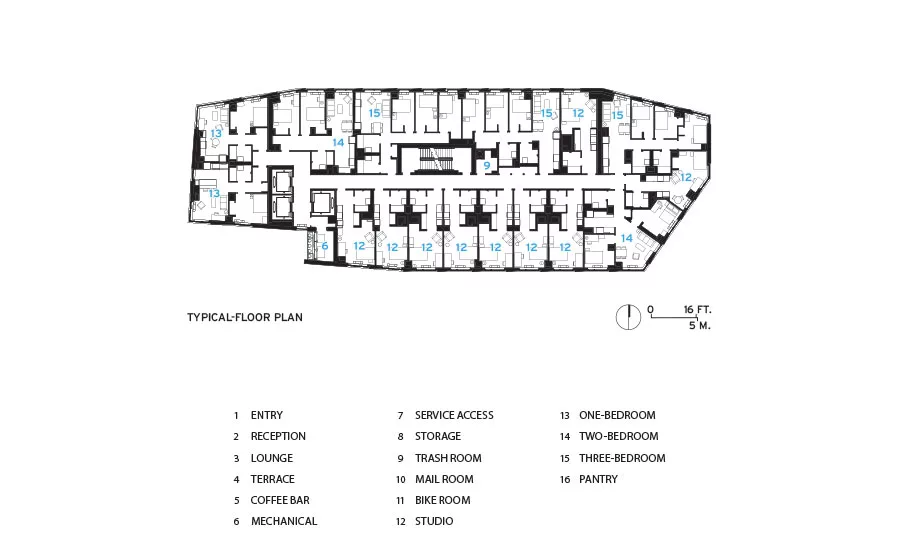

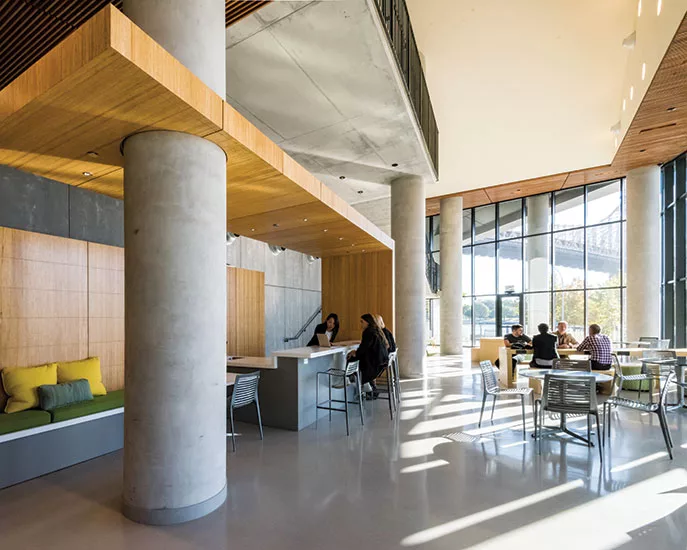

The qualities that contribute to these sustainable targets are mostly invisible. The interior looks more like a sleek extended-stay business hotel than an ubergreen dorm. Amenities include a gym and a rooftop lounge with a terrace and grilling area. A ground-floor lounge and coffee bar, which contrasts the exposed concrete structure and terrazzo floors with warmer wood accents, is light-filled and looks out onto the East River and the landscaped campus. The apartments, which range in size from micro studios to three bedrooms, have features like full kitchens with engineered-stone counters. Although glass makes up less than 25 percent of the facade area (a key conservation strategy), the units feel bright, and many offer stunning views of the Manhattan skyline.
Surprisingly, those involved with the project say that designing a very large Passive House is not necessarily more difficult than one at a smaller scale, such as a single-family residence. From a building-envelope perspective, a larger structure can be easier due to its low surface-to- volume ratio, says Lois Arena, the director of Passive House services at Steven Winter Associates. The density of occupancy means there are more internal heat gains, allowing for a reduced amount of insulation than might otherwise be needed to meet the standard’s stringent energy requirements.

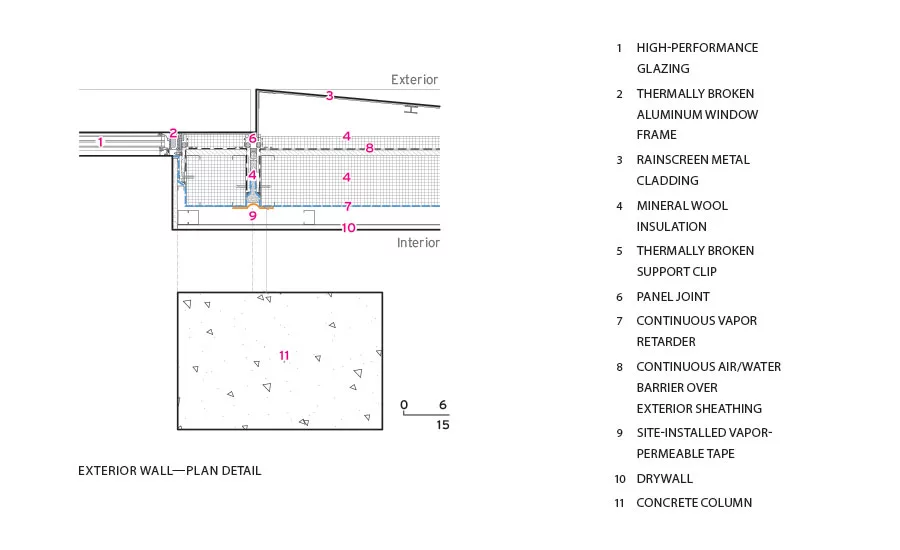

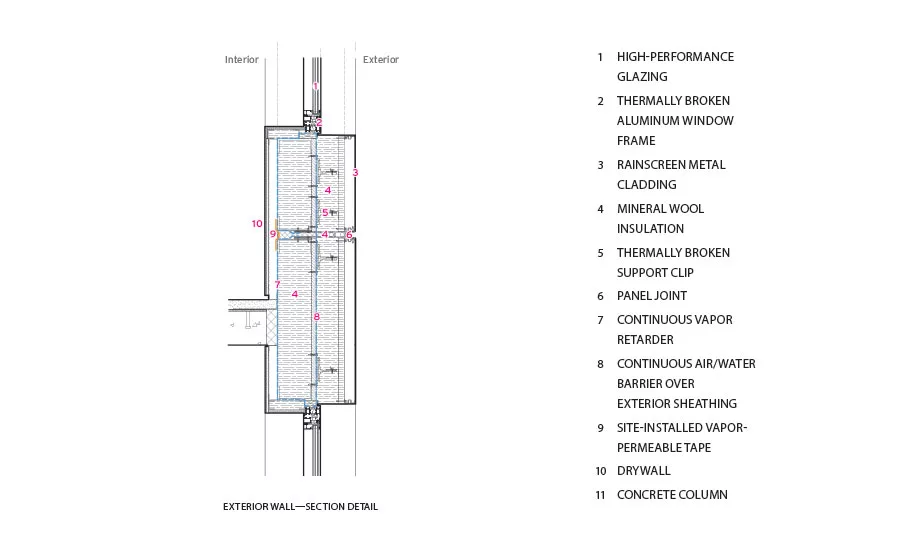

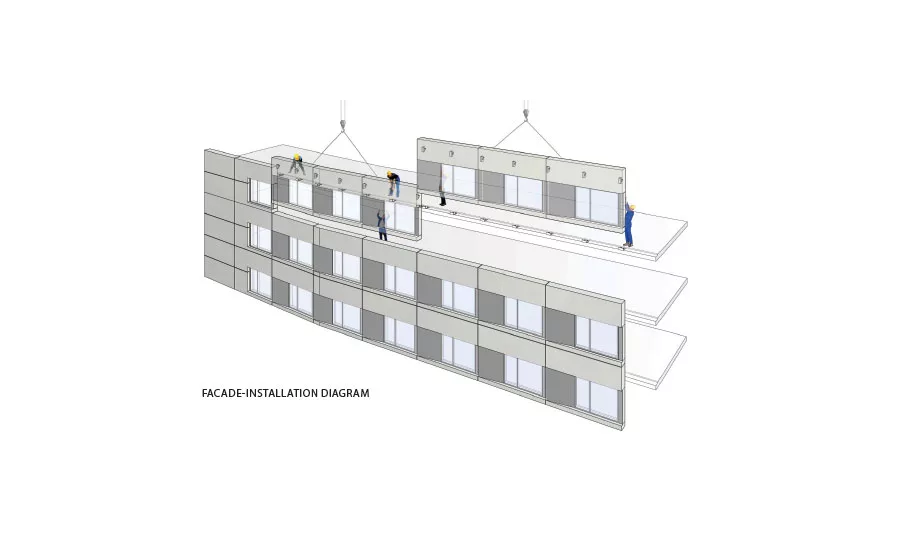

But despite these advantages, the exterior envelope still needed a unique approach. “There is just a tremendous amount of area to cover with high-performance materials and details,” says Deborah Moelis, a Handel senior associate. These materials and details included a custom exterior-wall system prefabricated in a Pennsylvania factory in 9-foot-tall by 36-foot-long sections. The panels arrived at the site complete with air and vapor barriers, mineral wool insulation, and the triple-glazed, operable windows already installed. The strategy helped speed construction but also improved quality by minimizing the number of joints that had to be sealed in the field. This in turn contributed to the building’s airtight properties, which were confirmed with a post-construction blower door test required for certification. According to Arena, the building passed with flying colors, with infiltration 75 percent below the Passive House limit of 0.6 air changes per hour at 50 pascals of pressure. “We smashed it,” she says.

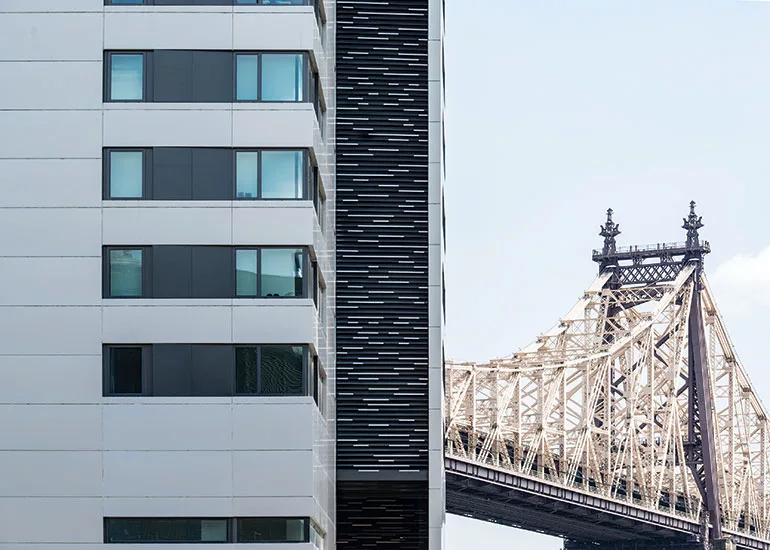

The design of the mechanical system was also tricky, since equipment appropriate for Passive House buildings of this size was difficult to find. The team devised a customized central ventilation system, with two energyrecovery ventilators (ERVs) on the roof supplying tempered fresh air to the apartments. For heating and cooling, they opted for a low-energy variable refrigerant flow (VRF) system with individual evaporators in each living room and bedroom. These wall units are tied to condensers located on small balconies on each floor, hidden behind the vertical louvered reveal. But the evaporators have about twice the capacity that consultants from BuroHappold Engineering determined was necessary, simply because smaller units were not available.
Hudson and Related paid a premium for Passive House construction and are said to be crunching the numbers to figure out exactly how much. “It depends on what you select as your baseline,” Arena explains. “For a developer that usually builds to LEED Gold, the premium isn’t that big.” Sources expect that the cost will come down as demand grows and more suitable products and equipment become available.
And demand does seem to be growing: Handel and Steven Winter Associates are working on several Passive House projects, including one that will be even larger than The House—a mixed-use complex for New York’s East Harlem neighborhood, with 655 affordable rental apartments. The two firms are also collaborating on an 18-story office building in Boston that will be designed according to Passive House principles. These projects will be a good thing for those cities and the planet—and even better if designers can demonstrate that “Passive House” need not be synonymous with plain vanilla.
Back to "Cornell Tech Dreams Big on Roosevelt Island"
120 Broadway, 6th Floor
New York, NY 10271
Personnel in architect's firm who should receive special credit:
Gary Handel FAIA
Blake Middleton FAIA
Deborah Moelis AIA CPHD
Architect of record:
120 Broadway, 6th Floor
New York, NY 10271
120 Broadway, 6th Floor
New York, NY 10271
Structural Engineer: Buro Happold
MEP & Fire Protection: Buro Happold
Energy (Passive House): Steven Winter Associates
Civil/BPP: Philip Habib & Associates
Exterior Wall: Vidaris
Code: Design 2147
Landscape: Future Green Design Corp
Specifications: Construction Specifications
Elevator: VDA (Van Deusen & Associates)
Accessibility: Steven Winter Associates, Inc.
Acoustical: Lane Engineering Consulting, P.C.
Lighting: Buro Happold
Monadnock Construction Inc.
Metal panels: Eastern Exterior Wall Systems
Metal/glass curtain wall: Oldcastle BuildingEnvelope
Moisture barrier: Intesana
Other cladding unique to this project: Insulation - Roxul Mineral Wool
Ornamental Metals - Transcontinental Steel
Metal frame: Schuco Windows, AZA INT Design and Fabrication
Special doors: Jamison (Insulated refrigerator doors to exterior VRF condenser porches)
Acoustical ceilings: ACGI Wood Grille Systems – Suspended Wood Ceilings
Cabinetwork and custom woodwork: Lawler Woodwork, Direct Builders Supply
Wall coverings: Printed Wall Covering by MDC Studio, Custom artwork from Charles Lindsay, Carbon (Minor Matters, 2016), used with permission
Paneling: Viroc by Investwood – Cement Bonded Particle Board wall panels
Floor and wall tile: Terrazzo flooring by D. Magnan
Resilient flooring: Residential wood flooring by HF Design
Bathroom Sinks (students): Staron
Bathroom Sinks (faculty): Kohler
Toilets and Bathtubs: American Standard
Dishwasher: GE and Whirlpool
Kitchen fittings: Grohe
Kitchen fixtures: Elkay
VRF System – Mitsubishi
ERV System - Custom by Daikin
Air Handling System – Aeon
Load bearing polyurethane foam: General Plastics
EPDM gaskets: Roflex
Steel thermal isolator: Schock
Concrete thermal isolator: Schock
NRG insulated concrete block: Oldcastle Anchor
