Owner: CR Land
Program: A one-story, 9,688-square-foot sales pavilion for a Hefei condo developer, in which sales spaces—from reception and exhibition to contract signing and administration—are interspersed with themed courtyards featuring bamboo, flowers, water, or camphor trees.

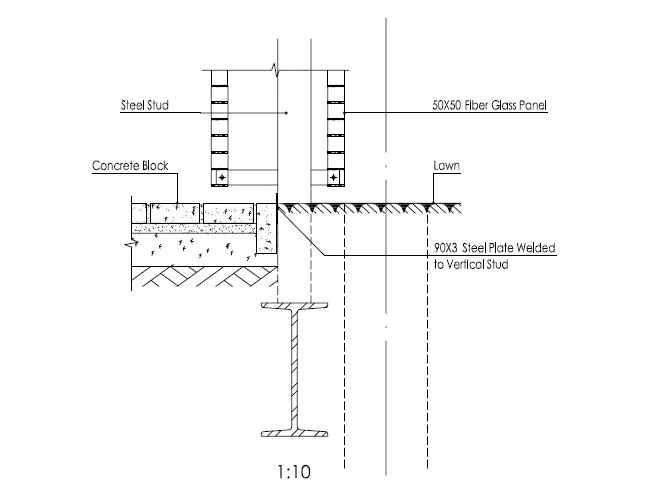

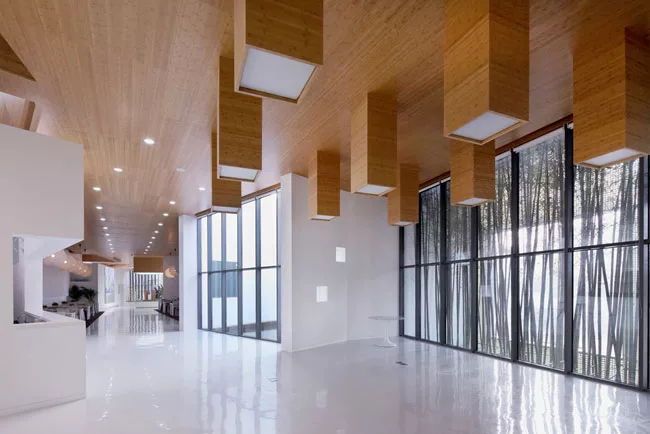

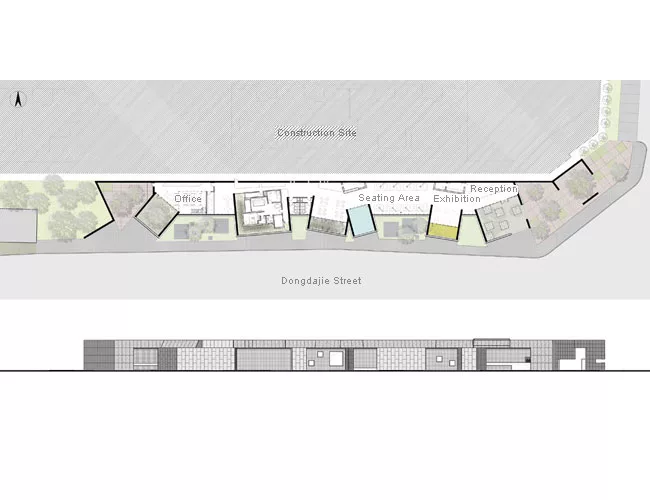

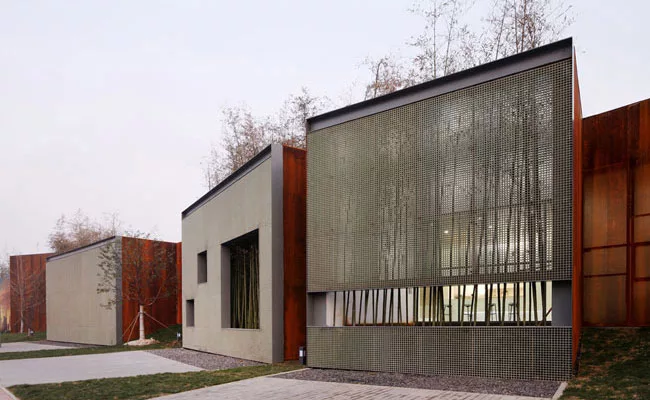

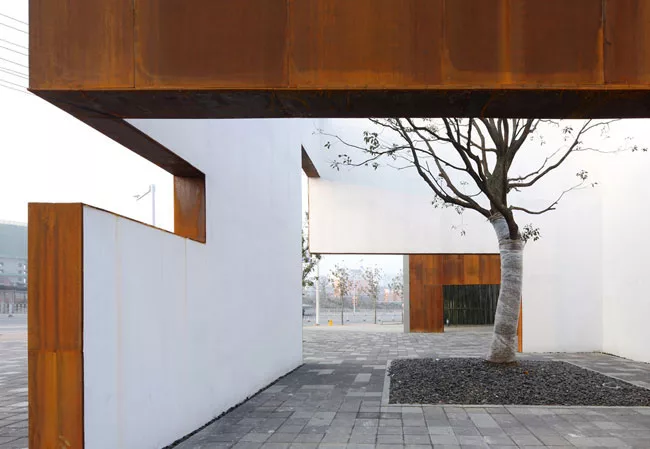

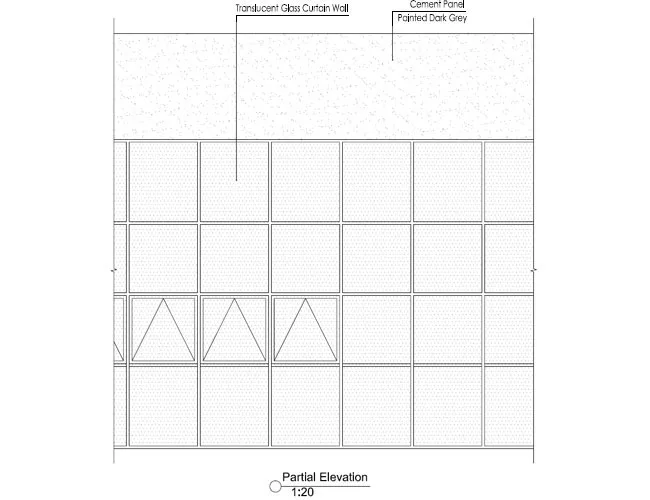

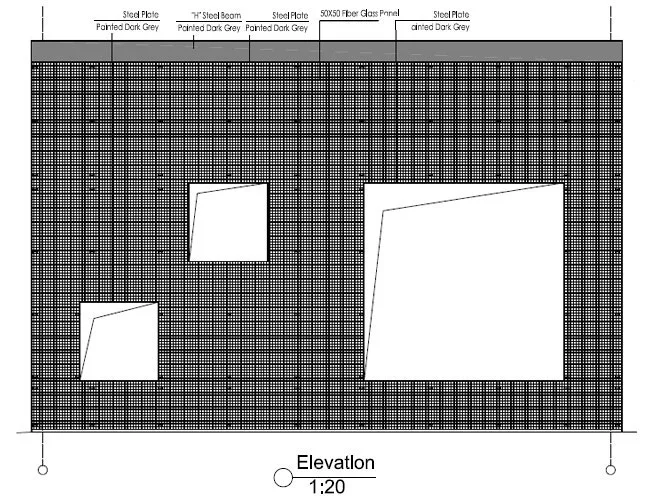

Design concept and solution: Noting the high volume of construction in Hefei (and the demolition that comes with it), Vector Architects wanted to build a pavilion that would instead highlight rhythms and changes in nature, such as the movements of plants and shifting light patterns. The courtyards and sales spaces fit together in a loose zigzag, connected by a Cor-ten steel wall, with the sales spaces to the north and the courtyards to the south. The north walls of the sales rooms are fiberglass; the south, glass curtain walls that back up onto the courtyards. Each interior is matched with one courtyard, so the light plays upon the interiors in patterns determined by the contents of each yard. Clerestory windows in the north walls bring in further light. The architects chose a minimal palette of materials—bamboo veneer for the ceiling, self-leveling concrete for the floor—to emphasize the light and colors coming in from outside.
Rm 1903 South Tower
SOHO Shangdu, No. 8 Dongdaqiao Road
Personnel in architect's firm who should receive special credit:
Project Architect: Jiajun Chen, Qun Sun
Structure and Materials

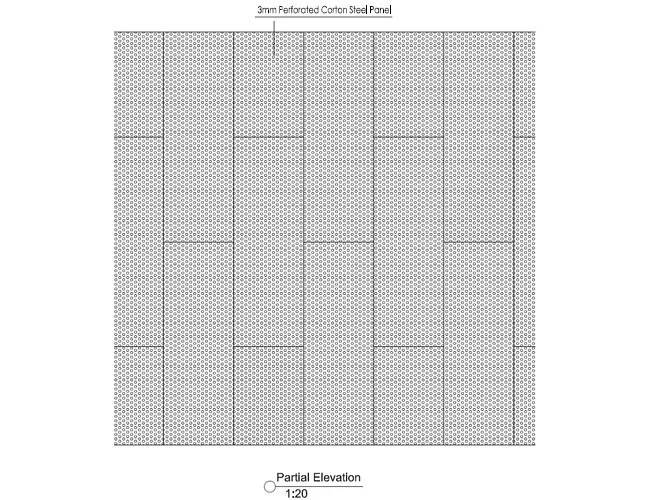

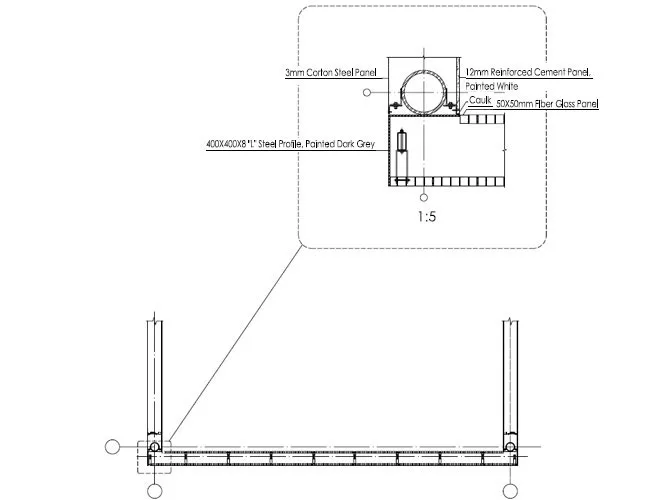

Cor-ten steel panel, fiberglass panel

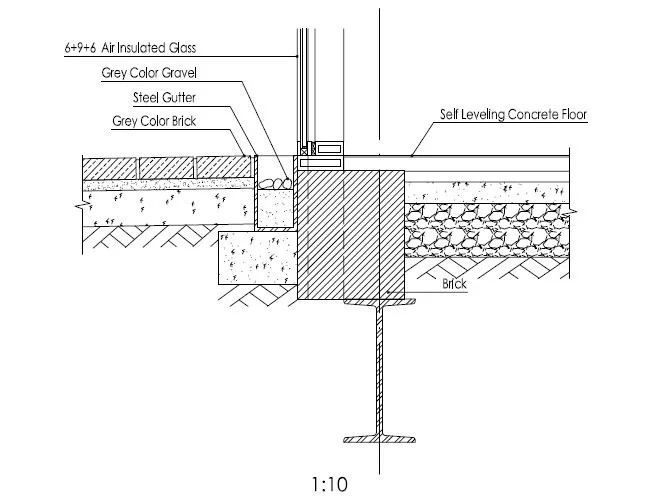

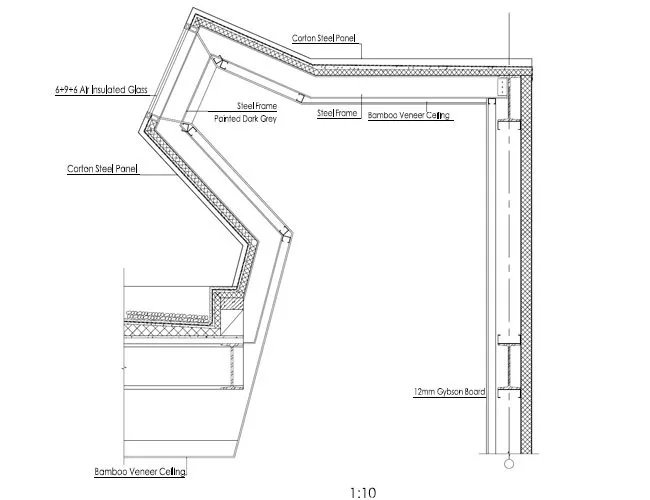

Self-leveling concrete floor, gypsum board, bamboo veneer ceiling
