Dark and neglected'that's the kind of derelict space that lurks below most highways and elevated roadways. Cities in the process of densifying, however, can no longer afford to ignore such concrete underbellies. Toronto, which has been busy completing 70,000 residential units between 2008 and 2012'mostly condominium apartments'recently opened Underpass Park, a gutsy template that repairs a previously marginalized urban zone in the city's East End neighborhood.

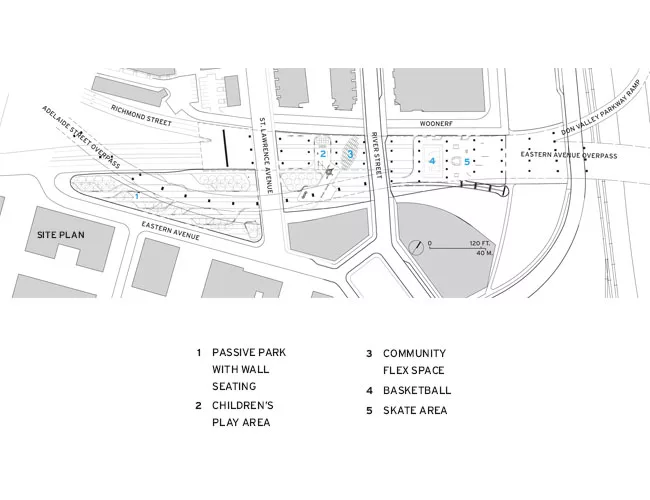

Below two elevated overpasses and a stone's throw from the Don River, Underpass Park encompasses 2.5 acres'enough room for swings and climbing structures for children on one side of a narrow road and basketball courts and a skateboarding terrain for teenagers on the other side. The area is bounded to the north by the leafy Riverdale neighborhood, with its traditional 'bay 'n' gable' brick homes, and to the east by the slightly edgier community of Leslieville, with film studios and vintage shops lining Queen Street East.

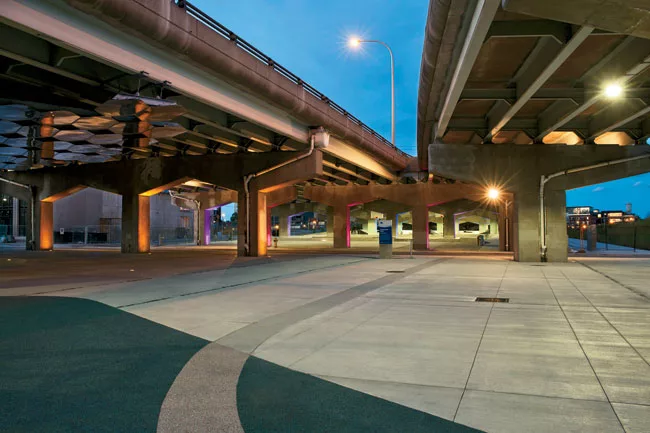

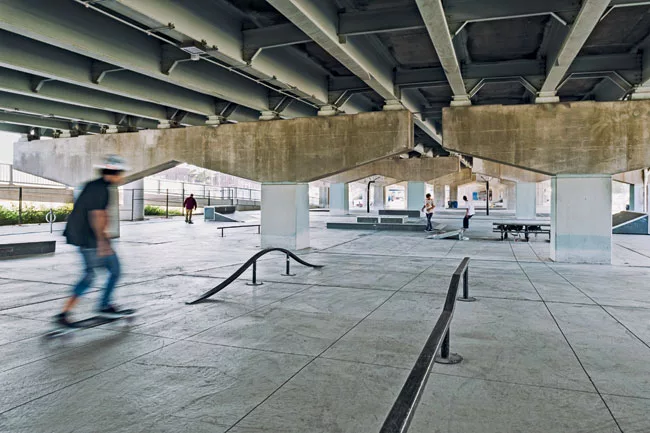

During a sudden rain shower this spring, about 20 young men hustled to Underpass Park to shoot hoops, glad for the roadway over their heads. A few teenagers on skateboards rode the park's undulating metal railings and concrete ledges, while others sipped from the water fountains. Softening the edges of all the hard surfaces, more than four dozen Kentucky coffee and black locust trees rise in the gap separating the elevated Richmond and Adelaide ramps running off the Don Valley Parkway.

Designed by the Vancouver-based landscape architecture firm Phillips Farevaag Smallenberg (PFS) in collaboration with The Planning Partnership, a Toronto-based planning, urban design, and landscape architecture firm, the $9 million Underpass Park is part of an ongoing effort by the publicly funded agency Waterfront Toronto to reimagine public space below and around major transportation links.

'The park is really about the everyday,' says PFS's Greg Smallenberg. It helps to bind together two large development parcels in the new West Don Lands neighborhood: to the north, the stunning black-glass mid-rises by Saucier + Perrotte Architectes and, directly south, the 18-acre Corktown Common, which opened last month; it was designed by Michael Van Valkenburgh Associates as a recreational park that doubles as a flood-protection zone.

'The thing about all of this transportation infrastructure littering our cities is that it isn't going away,' says Smallenberg. 'As open-space resources continue to dwindle in our cities and urban populations and densities increase, we have to take advantage of whatever open spaces we have.'

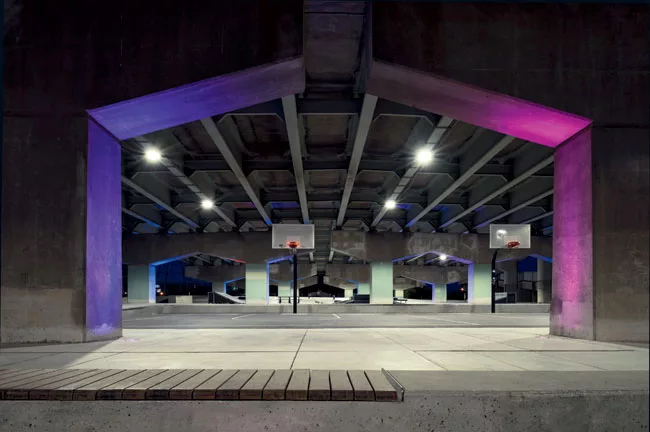

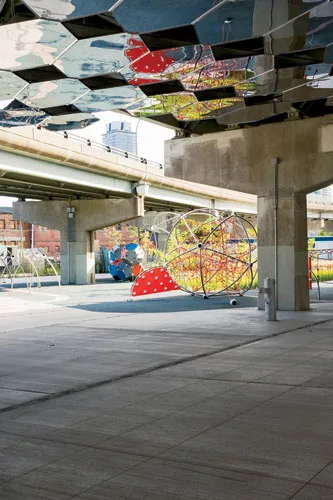

Transforming a squat and grim space requires imagination'and inventive illumination. Mirage'an artpiece by Toronto's Paul Raff Studios consisting of octagonal panels of reflective metal suspended from one portion of the overhead highway'adds life to the park by bending light and creating watery reflections of people passing below. And lights projected onto the highway's concrete columns help animate the space as they cycle through the color wheel.

Activating the city's in-between areas is a tall order, especially where the floor-to-ceiling height is less than 20 feet (as it is at Underpass Park). The east section of the park, with the hoops and skateboard amenities, is the most popular and best suited to the hard edge of the gritty environment. Less successful is the playground, its equipment looking bereft and difficult to love on concrete paving. Not surprisingly, children rarely gather there. The colored lights on the columns are subtle to read, even at night. Some daylight does bounce off Raff's artwork, but a larger reflective array would have incited a deeper transformation of the space.

Waterfront Toronto is charged with the revitalization of 2,000 acres of the city along the edge of Lake Ontario. With the Pan American Games opening in June 2015, the agency is under pressure to complete as many of its public spaces and housing developments as possible. Compared to high-profile waterfront parks in Toronto such as Sugar Beach or Sherbourne Commons, Underpass Park is a sleeper, except to those with skateboards or basketballs.

What to do with the Gardiner Expressway, another elevated highway that cuts through downtown Toronto, is currently provoking debate. Six design teams'including Diller Scofidio + Renfro'recently unveiled proposals for reinventing the Gardiner, above and below its massive ramps. While this discussion will probably rage for years, possibly decades, architects and planners might want to check out Underpass Park to see what works and what doesn't.

Lisa Rochon is the architecture critic for The Globe and Mail.


Owner: Waterfront Toronto

PFS Studio
1777 West 3rd Avenue
Vancouver, BC V6E 1K8

Personnel in architect's firm who should receive special credit:

Design Landscape Architects: PFS Studio
Greg Smallenberg, Partner in Charge, FCSLA, FASLA, BCSLA, OALA
            Registered Landscape Architect in British Columbia and Ontario

Nathan Brightbill, Project Landscape Architect, CSLA, ASLA, BCSLA, WASLA
            Registered Landscape Architect in British Columbia and Washington State

Landscape Architects of Record: The Planning Partnership
David Leinster, Partner in Charge, FCSLA, OALA, ASLA, MCIP, RPP
Michael Ormston Holloway, ISA Certified Arborist, Associate ASLA

Public Artist: Paul Raff Studio
Artwork: “Mirage”
Paul Raff, Principal Artist, OAA, RAIC

Architect of record: The Planning Partnership, Toronto

Landscape: The Planning Partnership

Public Art: Paul Raff Studio

Civil: SCS Consulting Group

Structural: Quinn Dressel Associates

Environmental: ENVIRON

Lighting: Hammerschlag + Joffe Inc.

Irrigation: Smart Watering Systems

General contractor: UCC Group

Doublespace Photography

PFS Studio

CAD system, project management, or other software used:
Rhino: Custom bench mockup modelling


2.5 acres


$9 million

Completion date:

October 2012



Custom Benches
Fabricated by UCC Group: architectural concrete, IPE wood slats, stainless steel armrests and skate deterrents

Play Equipment:
Berliner Seilfabrik,

  • Cosmo 10
  • Terranos Rope Climber

Urban Design Berlin,

  • Swingo 2.2
  • Eddie
  • Catttail

Henderson Recreation,

  • Double See-Saw

Urban Design Berlin, Berliner Seilfabrik and Henderson Recreation Local Representative:
Adam Walsh
Henderson Recreation,


  • 5 Bloqx

Kompan Local Representative:
Mary Lou Wilmott, Sales Consultant
RecTec Industries Inc.
Tel: 604.940.0067
Fax: 604.940.0162
Toll Free 800.667.8141

Resilient Play Area Surfacing
Rubber granule pearl, dark grey and blue blend with orange accent band by Rubaroc,

Skate Equipment
Skate features: Skatewave by Landscape Structure, Inc., Installation by A.B.C. Recreation, Toronto.

Basketball Court
Asphalt by UCC Group

Post, Hoop and Backboard by Patterson Williams Athletic Mfg. Co c/o Habitat Systems,

Overpass Column Uplights: Illumivision In-Ground Kit,

Area lighting under overpass structure: Cooper Lighting Concise LED,

Pathway Downlights: Prisma Lighting Systempark Line,

Add any additional building components or special equipment that made a significant contribution to this project:

  • Cobble accent banding reclaimed from adjacent neighborhood streets.
  • Drought tolerant plant selection
  • Recycled content in rubber play surfacing
