New York City

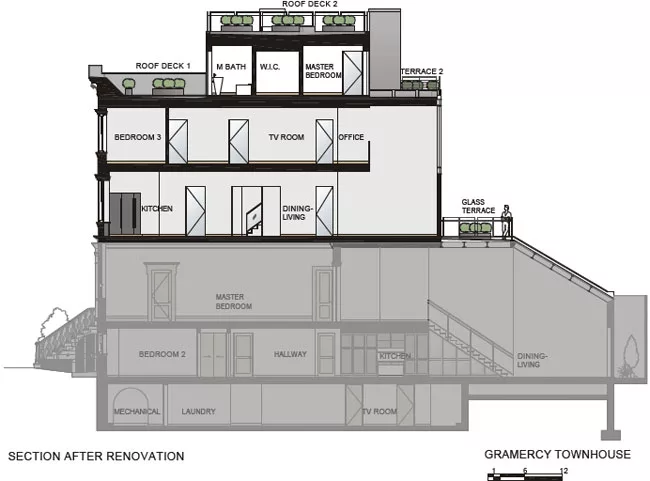

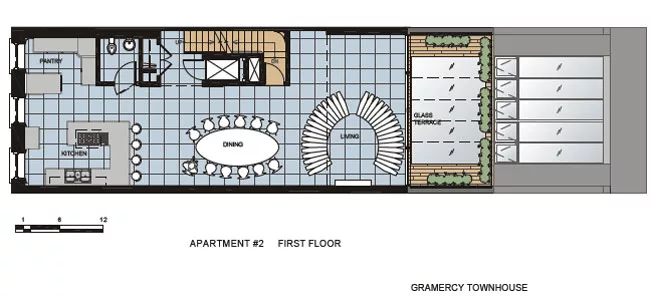

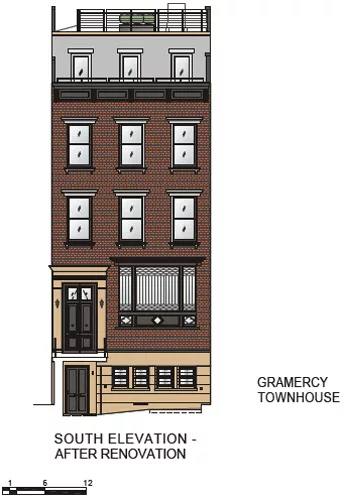

This 1848 Gramercy Park townhouse renovation presented challenges for the architect (who is also the client). The building had been converted into a triplex crowned with three loft residences. But the architect wanted two dwellings, one atop the other, of equal value and scale. At the same time, the structure's deteriorating condition meant investing in a new steel frame, as well as the replacement of electrical, plumbing, and HVAC systems. By adding a penthouse, the architects got a 620-square-foot open plan house with a floor-through kitchen/dining/living space, media room, office, three bedrooms, and three and a half bathrooms.

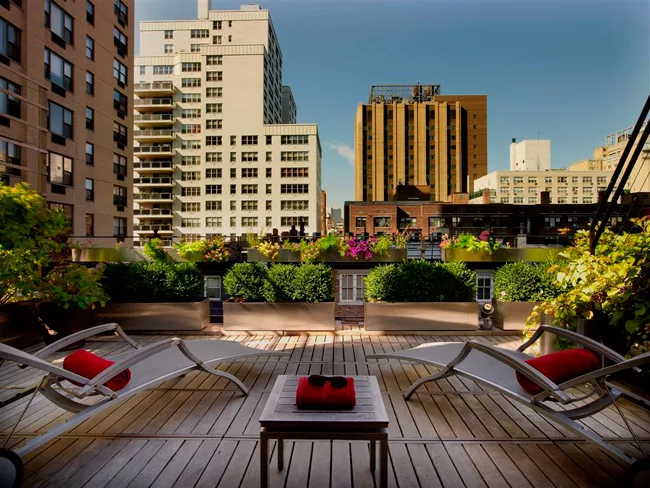

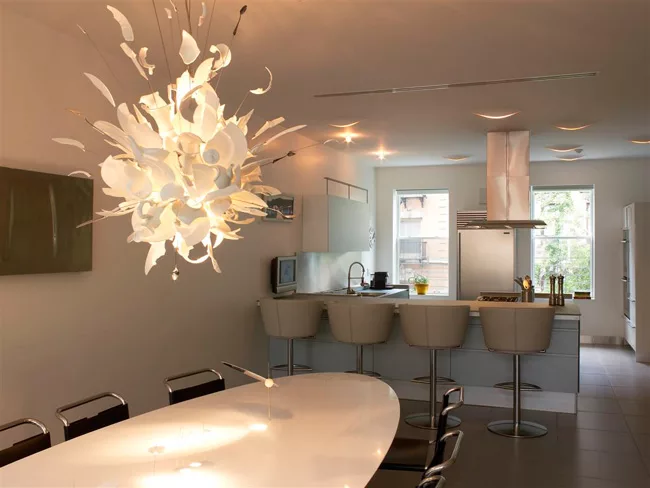

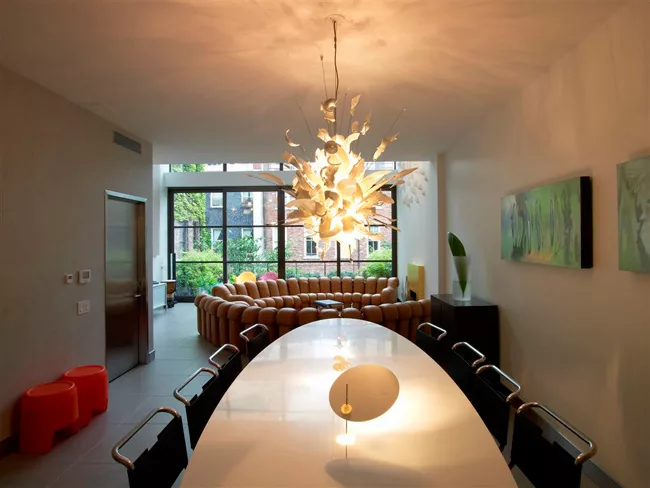

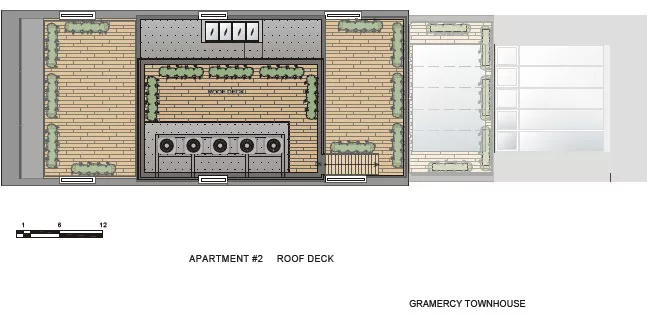

Inside, the living room and kitchen ceilings are punctuated with sculptures by Emilio Garcia and exploding light fixtures by Ingo Maurer. The bricks-and-mortar rear wall has vanished, replaced by a glass curtain fitted with tiny diodes, invisible by day, but glinting at night. The outdoor terrace leading from the living room has a glass floor and overlooks the private gardens below. The house features two more terraces as well as a roof deck.


Owner: Christina Isaly- Liceaga

Location: Manhattan, East 17th street

Completion Date: May 2007

Gross square footage: 2400 sq.ft.

Fractal Construction
23 East 7th Street, Ground Floor
New York, NY 10003
T: 212.228.5617

Personnel in architect's firm who should receive special credit:
Principal Designer – Ulises Liceaga
Project Manager – Annemarie Moerl
Not Registered Architects**

Architect of record:
Ogawa and Depardon Architects
69 Mercer Street, 2nd Floor
New York NY 10012
T: 212.627.7390

Interior designer: Fractal Construction LLC

Hage Engineering- Structural Engineer
560 Broadway, #501 New York, NY 10012
(212) 358-7778
Mechanical Electrical Plumbing Engineer: Charles G. Michel Engineering
180 South Broadway, Suite 300
White Plains, New York10605

Lighting: Ingo Maurer

Other: Artist Emilio Garcia was brought in to assist with decoration, art and sculptures.

General contractor:
Ross Lee Renovations
139 Mulberry St # 4
New York, NY 10013
(212) 219-0657

Eric Laignel
917 204 4338

Paul Warchol
212 274 1953

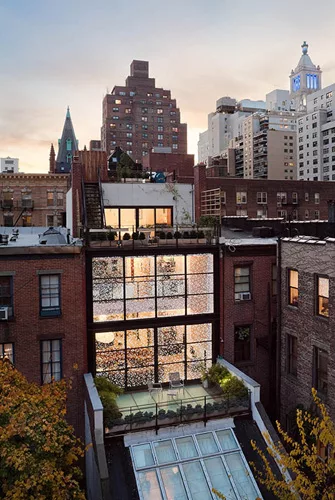

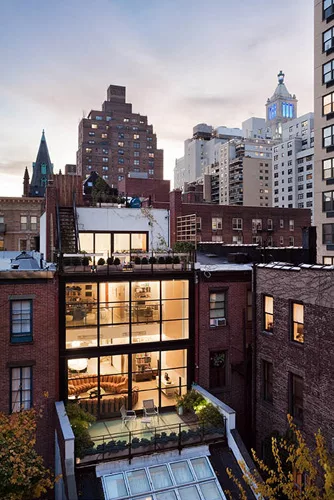

Image with LED lights at night, Ulises Liceaga (Architect)

Renderer(s): Fractal Construction LLC

CAD system, project management, or other software used: AutoCad



Structural system
Steel Frame

Metal doors: Hollow metal doors

Valli & Valli

Interior finishes
Cabinetwork and custom woodwork:
Kitchen is by Valcucine

Paints and stains: Benjamin Moore

Floor and wall tile:
Main floor, Kitchen, Living Room: St’ Agostino tile

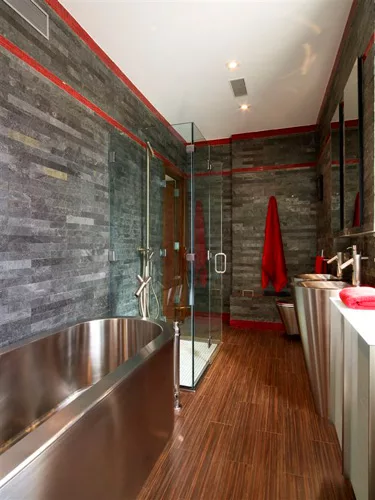

Bathroom Floor Tile: Nemo Tiles- Mikado
Bathroom Wall Tile- Island Stone

Carpet: Rug by Pachamama,
ABC Carpet
212 473 3000

Special interior finishes unique to this project.

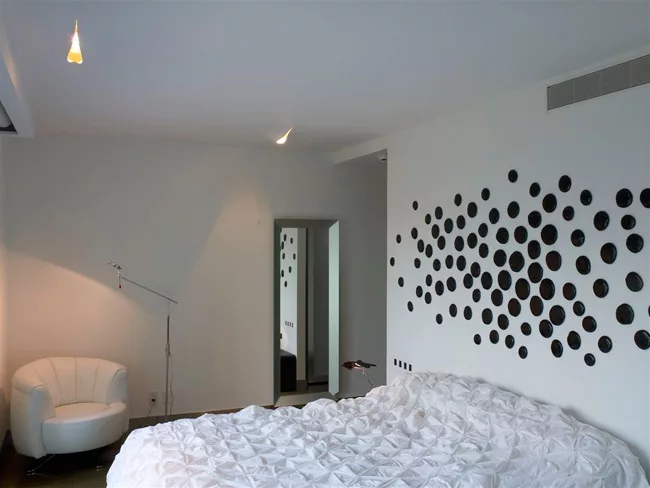

Fractal Construction LLC collaborated with Emilio Garcia, artist and Sculptor. Garcia sculpted the elements for the master bedroom’s wall installation from a type of resin used to make car dashboards.

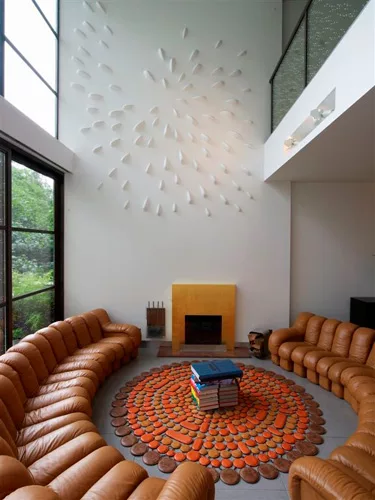

The Living  area’s wood burning fire place has a granite hearth and a 24 karat gold-leafed surround. Above is a plaster wall installation by Emilio Garcia Plascenica, Liceaga’s friends from growing up in Mexico.

Office furniture: Rimadesio (bookshelf)

Fixed seating:

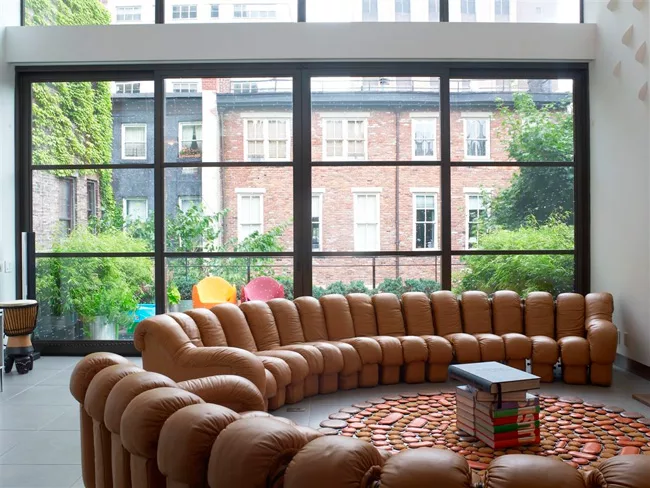

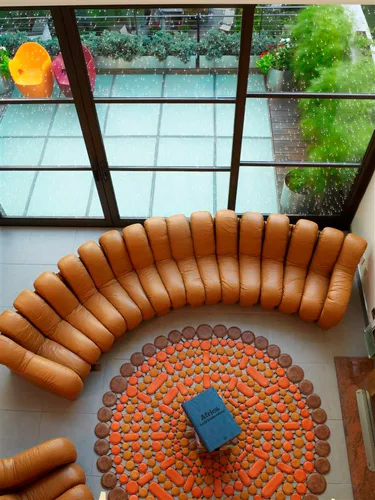

Ueli er Berg, Eleanora Peduzzi-Riva, Klaus Vogdt and Heinz Ulrich Couch by Desede 41 56 268 01 11

Dining Room Chairs: Ludwig Mies Van Der Rohe Chairs by Knoll 877 615 6655
Kitchen Bar Stools by Cico 49 52 42 41 02 40******
Master Bedroom Chair by De Sede 41 56 268 01 11
Boys Room Chairs by Fritz Hansen through Design Within Reach

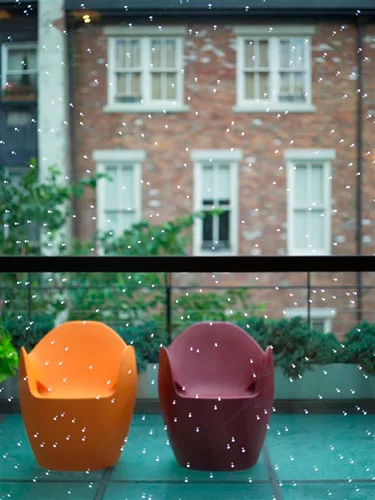

Chairs in Living Room Terrace- Tord Boontje

Kitchen Table by Ingo Maurer 212 965 8817
Master bedroom Side Table by DCC 212 685 0800

Other furniture: Deck furniture: Rausch Classics

Interior ambient lighting:Ingo Maurer- Ceiling Fixtures (Den, Kitchen, Boy’s Room), Chandelier

Down lights: Schlitz Lights, Ingo Maurer

Dimming System or other lighting controls: Lutron Electronics

Tri-state Elevator
511 5th Avenue Brooklyn, NY 11215
(718) 220-1500

Add any additional building components or special equipment that made a significant contribution to this project:

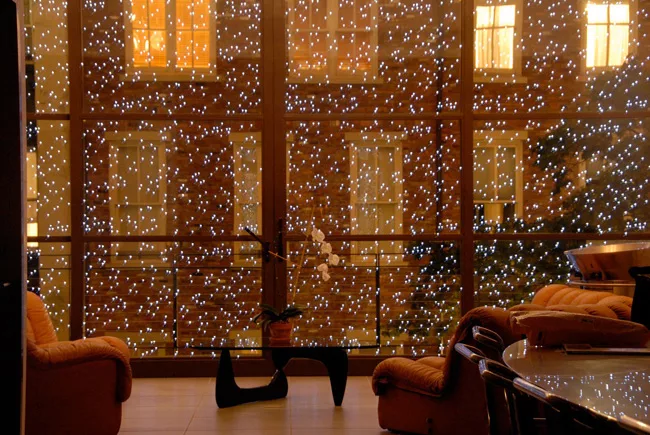

For the back façade, the glass in the steel- framed windows and sliding door is embedded with dimmable LEDS lights.
