Seattle Streetcar
Photo © Doug J. Scott
Photo © Doug J. Scott
Photo © Doug J. Scott

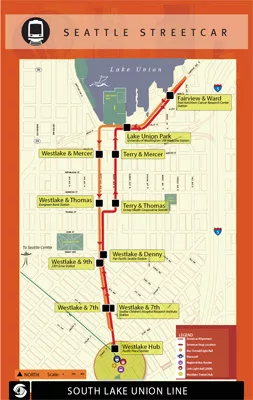

Image courtesy ZGF Architects LLP
Architects & Firms
Seattle
Completion Date: January 2008
Owner: City of Seattle, Seattle Department of Transportation
Program: A 9,200-square-foot maintenance facility, and 1.3 miles of streetcar line.
Design concept and solution: The Seattle Streetcar was created in an effort to transform Seattle’s South Lake Union neighborhood into a vibrant urban community. The streetcar’s route includes 11 stops every three blocks to connect the area to the downtown business district. Each streetcar seats 140 passengers. As the neighborhood develops, it is predicted that one million riders will eventually use the streetcar each year. The 11 platforms that line the 1.3 miles of track are designed to compliment the surrounding retail frontages and streetscape. Yet, each platform has a common function: they facilitate rainwater runoff via subtle grading and they border landscaped areas to receive runoff. The project includes a streetcar maintenance facility for vehicle storage and streetcar repairs. Interlocking trays planted with sedum create a green roof system. The roof offers a pleasant view to neighboring residents, while the system helps mitigate stormwater runoff and allows for cost-effective roof maintenance.
Gross square footage:

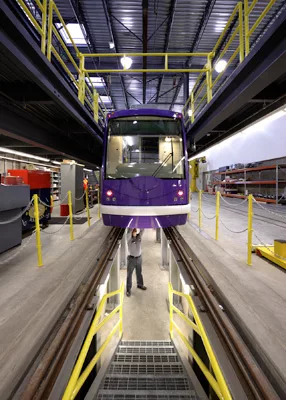

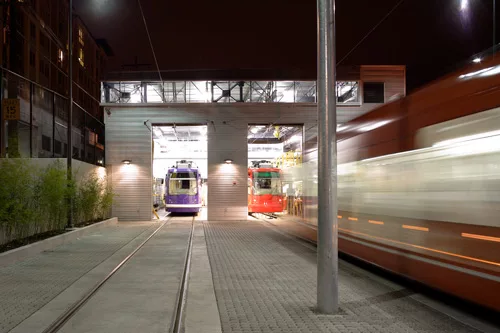

Seattle Streetcar Maintenance Facility: 9,200 sq. ft.
Streetcar Line: 1.3 miles
Site size:
Seattle Streetcar Maintenance Facility Site: 32,500 sq. ft.
Streetcar Line: 1.3 miles
Total construction cost:
$52 million (including streetcar line, maintenance facility, and cost of vehicles)
Architect:
ZGF Architects LLP
925 Fourth Avenue, Suite 2400
Seattle, WA 98104
T 206 623 9414
F 206 623 7868
www.zgf.com
PeopleOwner: Architect: Personnel in architect's firm who should receive special credit: Project Team for Seattle Streetcar Line: Operator: King County Metro Design Architect and Urban Planner: ZGF Architects LLP Engineer(s): Infrastructure Engineer: URS Corporation Electrical Engineer: Elcon Associates, Inc. Owner’s Representative: Shiels Obletz Johnsen Project Team Seattle Streetcar Maintenance Facility: Operator: King County Metro Design Architect and Landscape Designer: ZGF Architects LLP Engineers: Structural Engineer: Bright Engineering Mechanical Engineer: Coffman Engineers Electrical: Sparling and Elcon Associates Infrastructure Engineer: URS Corporation Contractor: Stacy and Witbeck, Inc. Owner’s Representative: Shiels Obletz Johnsen Photographer(s): CAD system, project management, or other software used: Autocad
|
ProductsStructural system: Pre-engineered Steel Strucutre by GEM Builidngs/Unimark Construction Group Exterior cladding: Concrete: Exposed, cast-in-place Roofing: Elastomeric: metal decking Metal: Columbia Green Technologies, Inc. AVRS extensive green roof Windows: Glazing: Skylights: DeaMor Associates Inc. acrylic domes in aluminum frames Doors: Metal doors: Ceco steel doors and frames Upswinging doors, other: Overhead Door Company: coiling doors Hardware: Hinges: McKinney Closers: Norton Exit devices: Von Duprin Pulls: Trimco Security devices: Von Duprin lighting: Downlights: Metal Halide Hubbell Superwatt Exterior: Outdoor 8” tube system fixture KIM 1A/OTS8” Controls: Conveyance: Plumbing: Water closet: Kohler 1.6 gal/flush Sloan automatic battery-powered Lavatory: Kohler; Chicago Faucet 2.2gpm max. Add any additional building components or special equipment that made a significant contribution to this project:
|
