Pico Branch Library
Food for Thought: An inventive new library, in a park with a greenmarket, aims to be a beacon for a challenged community.
Pico Branch Library

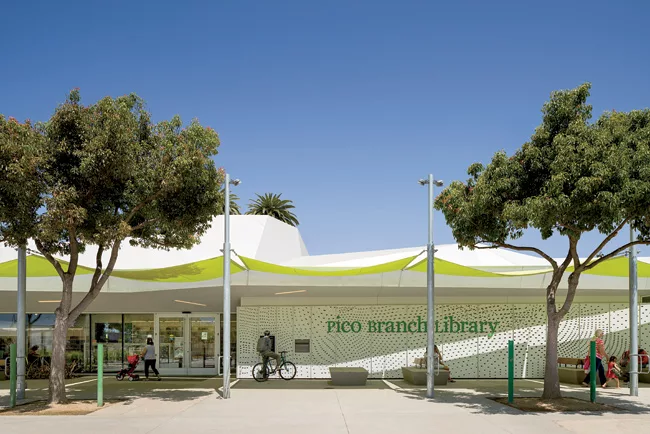

The facade’s perforated-metal paneling derives its pattern from a topography map of the park. Inviting views out but not in, these screens veil the staff room and automated book-sorting system. Portals similar to ATMs allow for easy book return. Steel poles out front support canvas canopies, lighting, and bike racks.
Photo © Eric Staudenmaier
Pico Branch Library

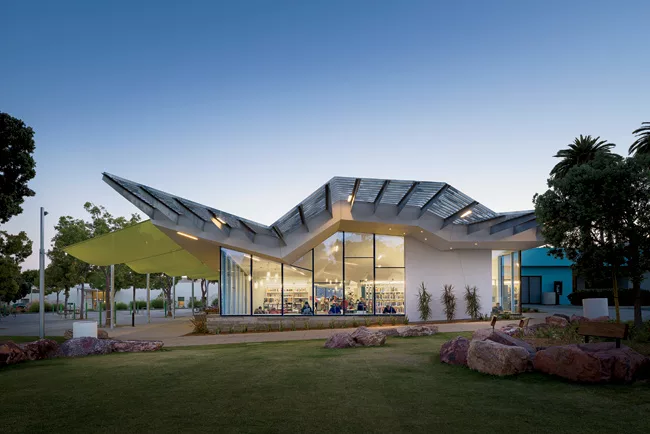

Deep overhangs, trellises, and awnings shade the reading room, allowing for expanses of glass that open the interior to daylight and immersive park views.
Photo © Eric Staudenmaier
Pico Branch Library

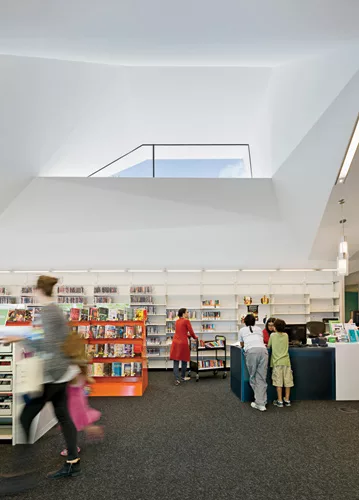

Clerestory light scoops punctuate the sculptural ceiling.
Photo © Eric Staudenmaier
Pico Branch Library
A PV-studded trellis connects the library to its freestanding community room.
Photo © Eric Staudenmaier
Pico Branch Library

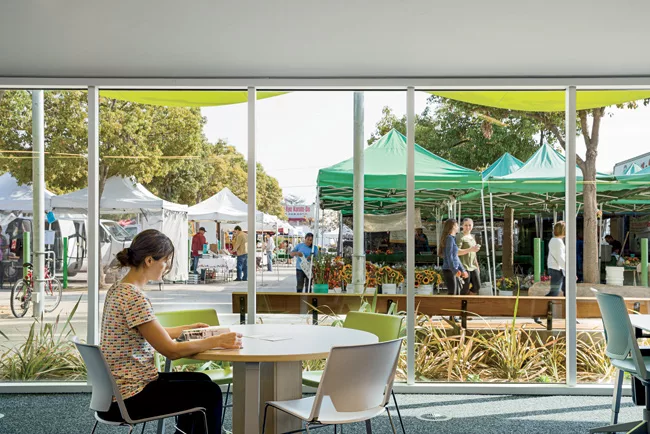

Through glassy facades, the Pico Branch engages both the wooded park and weekly farmers’ market. Here, the architects’ green awnings echo the vendors’ tent-like stalls.
Photo © Eric Staudenmaier
Pico Branch Library

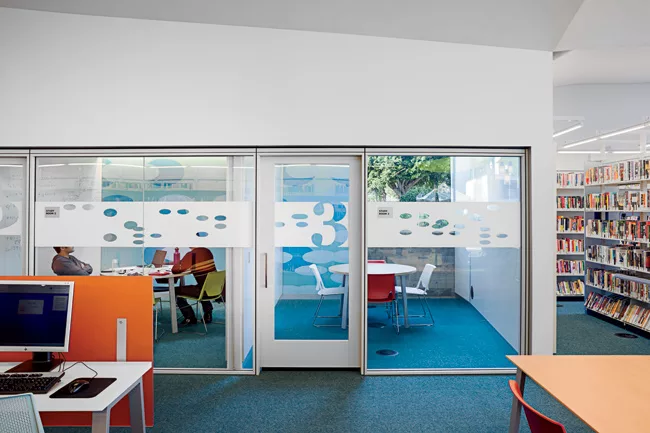

The library’s side chambers provide group-study or meeting venues for its patrons.
Photo © Eric Staudenmaier
Pico Branch Library

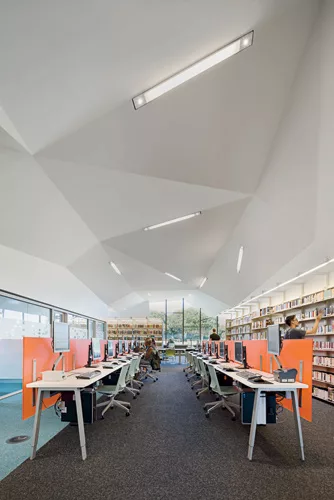

The reading room’s faceted ceiling of noise-deflecting plaster is embedded with LED lighting.
Photo © Eric Staudenmaier
Pico Branch Library

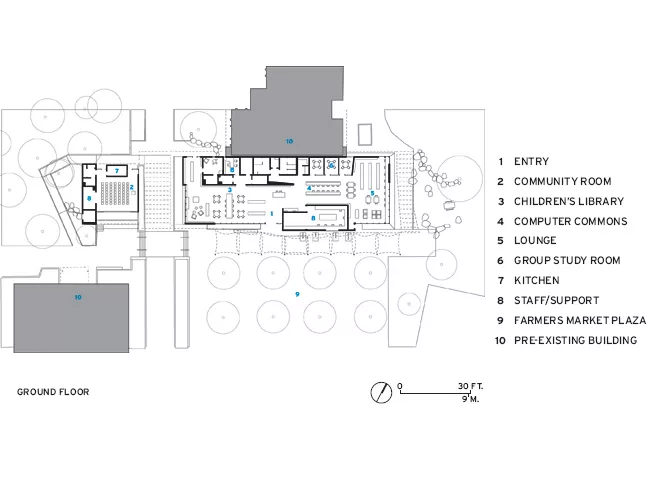

Image courtesy Koning Eizenberg
Architects & Firms
Santa Monica, California
The Pico Branch Library, a recent work by Koning Eizenberg (KE), is the first new public library branch in Santa Monica, California, in nearly 60 years. Its modest predecessor, originally a storefront operation, left the Pico area in 1956, creating what many locals considered a growing void. But by the time Santa Monica addressed that need, decades of transformative digital technologies, as well as neighborhood changes, made the project an unexpected opportunity: a chance to rethink what a 21st-century library could be—particularly as it relates to this community's distinctive character.
“Creating this library was a very community-driven process,” says Eizenberg. Through a series of open public meetings, supplemented by a survey, the city sought neighborhood input on the programming, design, and precise location. Naturally, viewpoints diverged.
There were appeals to make the design “culturally specific to a particular group,” recalls KE principal Nathan Bishop, “but we convinced them that a culturally universal approach would be more inclusive, encouraging all different people to take on the library as their own.”
Even the siting within the park was a point of debate. The city initially favored a prominent position on the boulevard bordering the park, but the architects made a persuasive case for a pavilion-like library near its center. “Not building along an edge,” Bishop points out, “meant not privileging one neighborhood over another.”
Visually light and transparent, the resulting 8,700-square-foot “park pavilion” has the openness of a community living room. From outside, its exuberantly curvy roof edge and fluttering apple-green canopy are a tip-off: this is no stifling, rule-ridden library. Inside, a single reading room extends from children's to adults' areas, under a sculptural, faceted ceiling. Its rolling peaks and occasional daylight scoops punctuate key spots such as the entry area. With all the airflow ducts tucked beneath a raised floor, and round vents underfoot, the ceiling is free for pure expressive form (integrating only sprinklers and flush LED lighting.)
Expanses of glass across the steel moment-frame building evoke the open-air feeling of a park gazebo—yet no blinds are necessary. Deep, stuccoed eaves, continuous with the ceiling planes, provide all-day shading. The facets overhead, lined in acoustic-absorbent plaster, deflect and dampen noise, achieving remarkable quiet even amid abundant activity. “Particularly with municipal projects,” says Eizenberg, “you have to be inventive about getting each element to perform multiple roles.”
In front of the $9.7 million facility, galvanized-steel poles support the canvas canopy while integrating outdoor lighting, plus custom bike racks. And the roofline undulations are not merely eye-catching: they harvest rainwater for the library's toilets.
The project, which includes a freestanding 1,200-square-foot community room, is on track for LEED Platinum certification. Though a fire road separates the two structures, a steel trellis connects them overhead, checkered with PV panels that generate the complex's electricity.
Beyond sustainability (and the ubiquity of computers and electronic offerings), the library's most 21st-century aspect is the absence of a circulation desk. An automated book-sorting system—a big budget item, at $187,000—innovatively frees up librarians to roam the reading room and interact with visitors. A modest information podium, supplanting the traditional hierarchy of a bulky circulation desk, trades old-school rigidity for a more laid-back atmosphere. With ATM-like portals, the sorting system relies on self-checkouts and returns, minimizing staff input.
Since opening last spring, the Pico Branch has logged over 100,000 borrowed items, with more than 84,000 visits and nearly 1,200 new library cards issued.
“I don't know how much credit we can take for this,” says Eizenberg, “but we love hearing about families coming for the entire day for park-and-library outings—or the kid who just doesn't want to leave.”
People
Owner:
Architect:
Personnel in architect's firm who should receive special credit:
Architect of record:
Engineers:
Civil:
MEP:
Geotechnical:
Consultant(s):
Lighting:
Acoustical:
AV/ Low Voltage:
Environmental Graphics:
LEED:
Hardware:
Rainwater Harvesting:
Library Consultant:
Surveyor:
Cost Estimating:
General contractor:
Photographer(s): Size: 8,700 square feet Construction Cost: $7.2 million Project Cost: $9.7 million Completion Date: April 2014 |
Products
Structural system
Manufacturer of any structural components unique to this project:
Exterior cladding
Metal Panels:
Storefront:
Cement Plaster:
Cast-in-place board form concrete:
Air barrier:
Building Paper:
Custom Steel & Glass Glazing Assembly:
Roofing
Windows
Glazing
Skylights:
Tubular Skylights:
Doors
Hollow Metal doors:
Wood doors:
Exterior Multi-panel Sliding doors:
Interior Pocket Door:
Interior Sliding Door:
Interior Frames:
Hardware
Closers:
Exit devices:
Pulls:
Levers:
Security devices:
Automatic Door Operator:
Drop down auto door seals:
Recessed overhead door stops:
Interior finishes
Demountable partitions:
Cabinetwork and custom woodwork:
Paints and stains:
Boardform Cast-In-Place Concrete Walls:
Cast-In-Place Concrete Counter:
Wall coverings:
Paneling:
Plastic laminate:
Solid surfacing:
Special surfacing:
Floor and wall tile:
Resilient flooring:
Carpet:
Raised flooring:
Special interior finishes unique to this project:
Furnishings
Reception/ Reading area furniture:
Chairs:
Tables:
Upholstery:
Lighting
Downlights:
Task lighting:
Exterior:
Dimming System or other lighting controls:
Conveyance
Plumbing
Energy
Photovoltaic system:
Other unique products that contribute to sustainability:
Add any additional building components or special equipment that made a significant contribution to this project:
Exterior Steel Trellis/ Overhangs:
Exterior Cast-In-Place Concrete Benches:
With Salvaged Wood Backing & Picnic Tables:
Exterior Cast-In-Place Concrete Amphitheater Seating, Flatwork, Stairs, & Permeable Concrete Ramp: |
